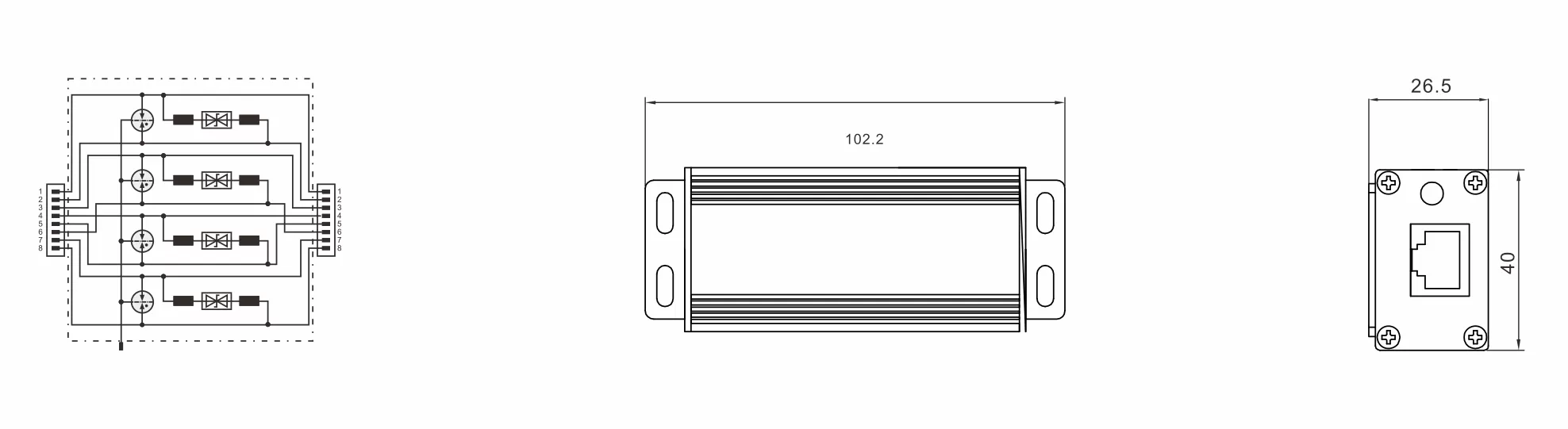

Product characteristics:
Specification | BR-POE-M | |
Test standards | IEC 61643-21 | |
SPD class | TYPE2 P1 | |
Nominal voltage | Un | 48V |
Max. continuous operating d.c. voltage | Uc | 48V |
Max. continuous operating a.c. voltage | Uc | 34V |
Max. continuous operating d.c. voltage pair-pair(PoE) | Uc | 57V |
Nominal current | IL | 1A |
D1 Lightning impulse current (10/350 μs) per line | Iimp | 0.5kA |
C2 Nominal discharge current (8/20μs) line-line | In | 150A |
C2 Nominal discharge current (8/20μs) line-PG | In | 2.5kA |
C2 Total nominal discharge current (8/20μs) line-PG | In | 10kA |
C2 Nominal discharge current (8/20μs) pair-pair(PoE) | In | 150A |
Voltage protection level pair-pair for In C2 | Up | ≤180V |
Voltage protection level line-PG for In C2 | Up | ≤500V |
Voltage protection level line-line for In C2(POE) | Up | ≤600V |
Insertion loss at 250 MHz | ≤3dB | |
Capacitance line-line | C | ≤30pF |
capacitance line-PG | C | ≤25pF |
Operating temperature range | Tu | -40℃-80℃ |
For mounting on | 35mm DIN rails acc. to EN 60715 | |
Connection (input/output) | RJ45 socket/RJ45 socket | |
Pinning | 1/2, 3/6, 4/5, 7/8 | |
Earthing via | 35mm DIN rails acc. to EN 60715 | |
Enclosure material | polyamide PA 6.6 | |
Degree of protection (plugged-in) | IP10 | |
Order Code | D9160 |
Features:
SPD for POE is designed according to IEC 61643-21 standards
Support POE applications in both of Fast / Gigabit Ethernet environments.
Support voltage – 48Vdc / 34Vac.
Circuit protection.
Current protection.
Enhanced surge protection.
For mounting on 35mm DIN rails acc. to EN 60715
It can effectively ensure the equipments work properly
To protect systems against transient overvoltages or surges from lightning and electrical switching events.
Relative humidity: 5%-95%.
Operating temperature: -40℃~+80℃.
Atmosphere pressure: 70kPa~106kPa.
This product series can operate with low clamping voltage.
Provide protection for electronic equipment and supports long-term system reliability by absorbing high amounts of transient energy.
This protection device is developed for protecting equipment that is prone to damage by the line inductance or over voltage of the earth.
It is an inbuilt surge protection device manufactured using raw materials of the highest grade, allowing the safe data transfer without loss.
Application:
For POE Power Over Ethernet applications
Appropriate surge protection hardware and installation practice can limit damage
Wireless bridge, network cameras and other network equipment widely used in the power supply of the Ethernet cable.
Ideal to protect network devices powered from Ethernet
Suitable for POE centralized power supply HD digital surveillance cameras, exchanger, and concentrator.
POE surge protector protects network devices from surges generated by a Power over Ethernet (POE) enabled device.
Protect electronic devices from spikes.
Provides protection against electrical transients.
Protects Ethernet device from the damage of lightning & surge.
Widely used in server equipment, router, working stations (intranet) HUB and board band.
Protect the LAN/ Ethernet Network/ switches from damaging electrostatic discharge and voltage surges.
Suitable to wireless bridge for protection the ports from surge and over voltage induced by lightning stroke or by internal systems.
