Product characteristics:

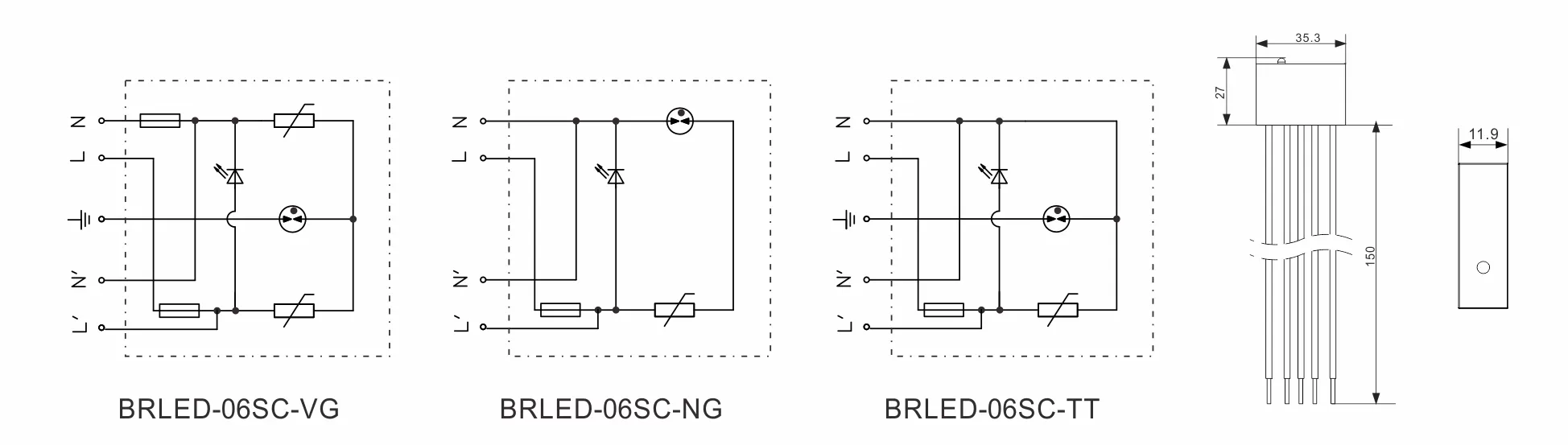

| Specification | BRLED-06SC-VG | BRLED-06SC-NG | BRLED-06SC-TT | |
| SPD classification according to EN61643-11 | Type 2+Type 3 | Type 2+Type 3 | Type 2+Type 3 | |
| SPD classification according to IEC61643-11 | Class II+Class III | Class II+Class III | Class II+Class III | |
| Nominal a.c. voltage | Un | 230V | 230V | 230V |
| Max. continuous operating a.c. voltage | Uc | 275V | 275V | 275V |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz | |
| Norminal discharge current (8/20μs) | In | 3kA | 3kA | 3kA |
| Maximum discharge current (8/20μs) | Imax | 6kA | 6kA | 6kA |
| Max. Load | IL | 10A | 10A | 10A |
| Combined impulse | Uoc | 6kV | 6kV | 6kV |
| Voltage protection level | Up | ≤1.3kV | ≤1.3kV | ≤1.3kV |
| Response timeA | tA | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | Green light on: OK; Green light off: Replace | |||
| Enclosure materail | Thermoplastic UL94-V0 | |||
| Degree of protection | IP65 | IP65 | IP65 | |
| Order code | B6024 | B6025 | B6026 | |
Features:
Used in surge protectors, thermally protected varistor modules from Britec are built with high-quality, dependable materials.
Provide robust surge current handling capability.
LED Lights Surge Protection Device for LED Street Lights can be connected in series
The BRLED-06SC Modules are self-protected devices that can be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection.
It can provide up to 6kA protection module maximum lighting surge current.
This surge protective device sports its large capacity to withstand impulse current with 8/20µs waveform and low residual voltage, an ideal device for LED surge protection.
Protection for 230V Systems
It meets IEC61643-11, EN61643-11, Class II+III/Type 2+3 compliance standards.
Excellent surge resistance and very low residual voltage
With high-quality, dependable materials.
