Product characteristics:

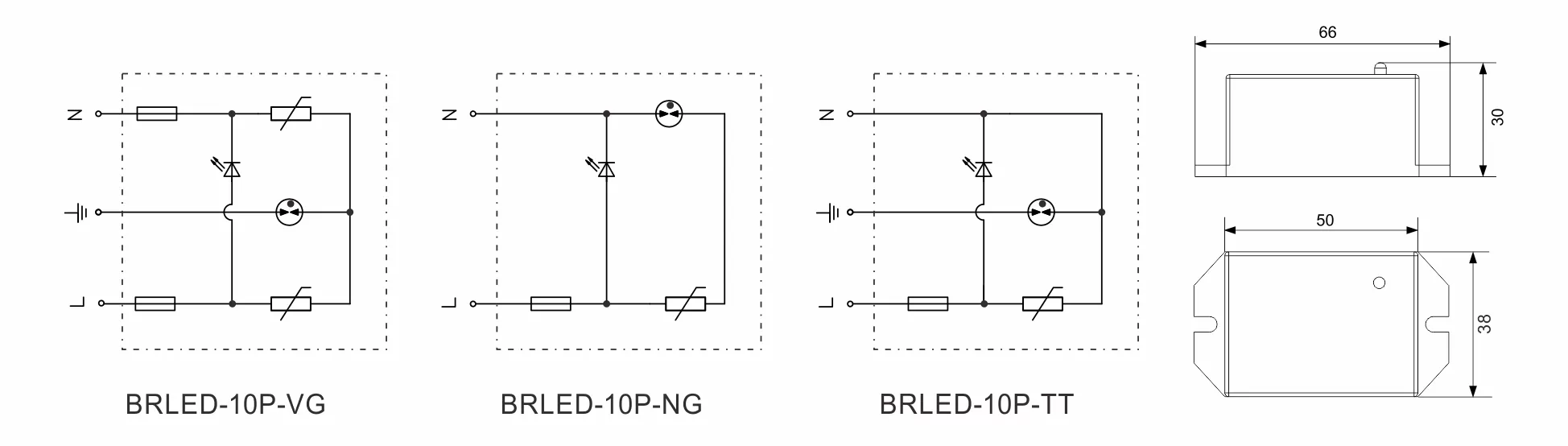

Specification | BRLED-10P-VG | BRLED-10P-NG | BRLED-10P-TT | |
SPD classification according to EN61643-11 | Type 2 + Type 3 | Type 2 + Type 3 | Type 2 + Type 3 | |
SPD classification according to IEC61643-11 | Class II + Class III | Class II + Class III | Class II + Class III | |
Nominal a.c. voltage | Un | 230V | 230V | 230V |
Max. continuous operating a.c. voltage | Uc | 275V | 275V | 275V |
Frequency | 50-60Hz | 50-60Hz | 50-60Hz | |
Norminal discharge current (8/20μs) | In | 5kA | 5kA | 5kA |
Maximum discharge current (8/20μs) | Imax | 10kA | 10kA | 10kA |
Combined impluse | Uoc | 10kV | 10kV | 10kV |
Voltage protection level | Up | ≤1.3kV | ≤1.3kV | ≤1.3kV |
Response time | tA | ≤100ns | ≤100ns | ≤100ns |
Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
Operating state / fault indication | Green light on: OK; Green light off: Replace | |||
Enclosure materail | Thermoplastic UL94-V0 | |||
Degree of protection | IP65 | IP65 | IP65 | |
Order code | B6032 | B6033 | B6034 |
Features:
10kA capable indicating surge arrestors for lighting applications.
Space saving footprint for mounting in confined locations
New designed LED lighting surge protection module.
Protection for 230V Systems
Specifically for commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
High performance to size ratio
This device is constructed with thermally protected varistor technology.
Fully automatic operation
Rated for harsh environments
3 years product warranty
Application:
Protect LED lighting from transients and surges generated by lightning and switching transients.
Suitable for harsh environments, and provides high performance circuit protection that saves valuable LED lighting assets, reduces maintenance, prevents unwanted failures and decreases degradation damage for longer lifetimes.
