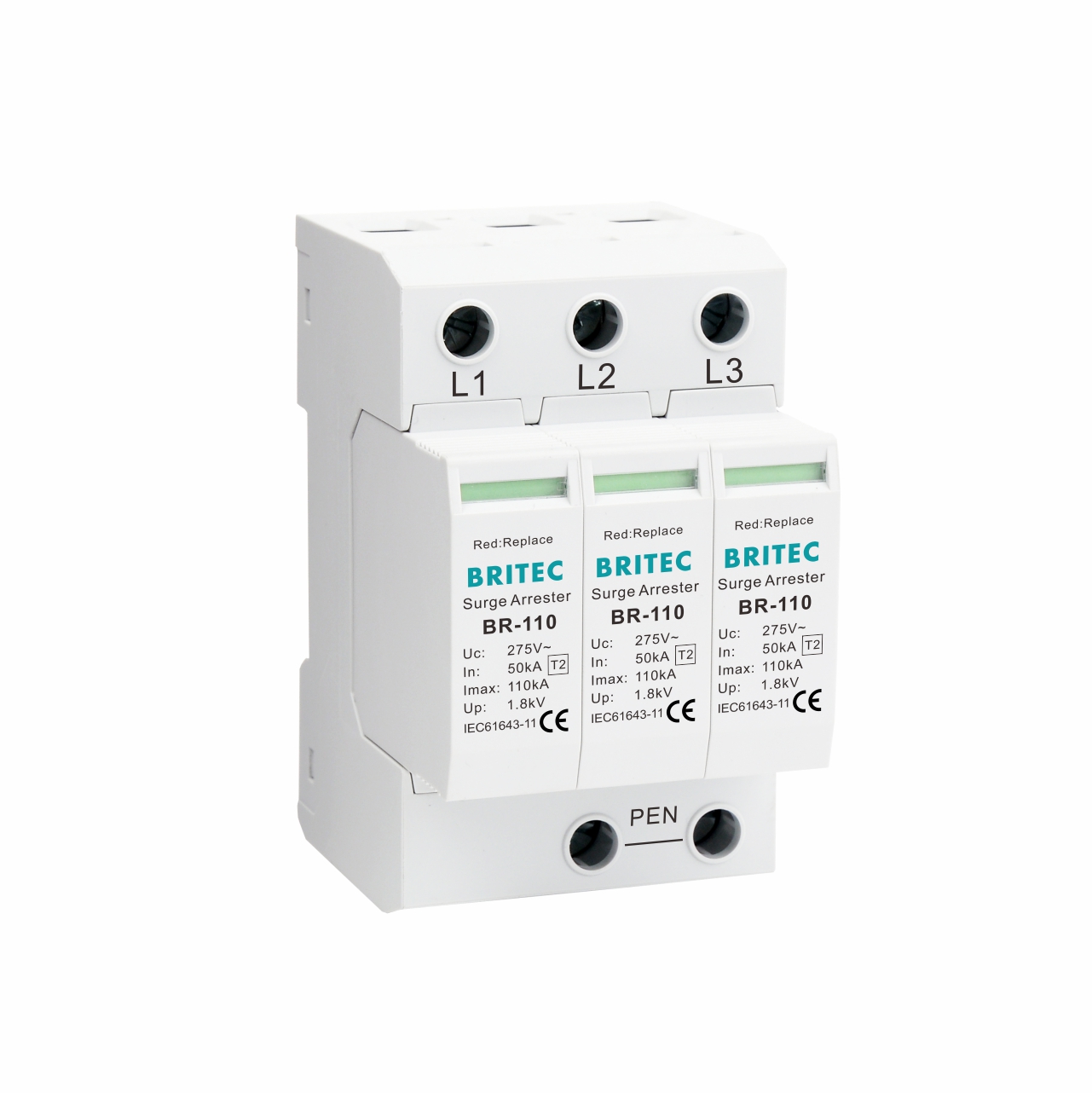

Product characteristics:
| Specification | BR-110 275 3P | BR-110 320 3P | BR-110 385 3P | |||
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | |||
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | |||
| Max. continuous operating a.c. voltage | Uc | 275V | 320V | 385V | ||
| Nominal discharge current (8/20μs) | In | 50kA | 50kA | 50kA | ||
| Max. discharge current (8/20μs) | Imax | 110kA | 110kA | 110kA | ||
| Voltage protection level | Up | ≤1.9kV | ≤2.1kV | ≤2.5kV | ||
| Voltage protection level 5kA | Up | ≤0.6kV | ≤1.0kV | ≤1.2kV | ||
| Max. backup fuse | 250A gG | 250A gG | 250A gG | |||
| Short-circuit withstand capacity | Isccr | 25kA | 25kA | 25kA | ||
| Temporary overvoltage TOV-withstand | UT | 335V/5sec. | 350V/5sec. | 550V/5sec. | ||
| Temporary overvoltage TOV-safe failure | UT | 440V/120min. | 550V/120min. | 660V/120min. | ||
| Response time | tA | ≤25ns | ≤25ns | ≤25ns | ||
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | ||
| Operating state/fault indication | green/red | green/red | green/red | |||
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | |||
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | |||
| For mounting on | 35mm Din rail | |||||
| Enclosure material | Thermoplastic UL94-V0 | |||||
| Degree of protection | IP20 | IP20 | IP20 | |||
| Order Code | B18833 | B18835 | B18837 | |||
| Order Code (With remote signaling) | B18834 | B18836 | B18838 | |||
Features:
– Class II / Type 2 surge protection device.
– Available with nominal / maximum discharge current 50kA/110kA
– The core parts are metal oxide varistor components with high discharge capacity.
– Excellent performance and favorable price
– Low residual voltage and quick response.
– This surge protective device is used for lightning and overvoltage protection in AC50/60Hz.
– Reliable control
– BR-110 series surge protector devices (SPD) are the best products to protect the low voltage power network from lightning or surge over voltage.
– Fault indication via red mark in the inspection window.
Application:
• For using in the lightning protection zones concept at boundary 1-2.
• The SPD surge protector can provide protection for three-phase power system from lightning strikes and voltage surge
