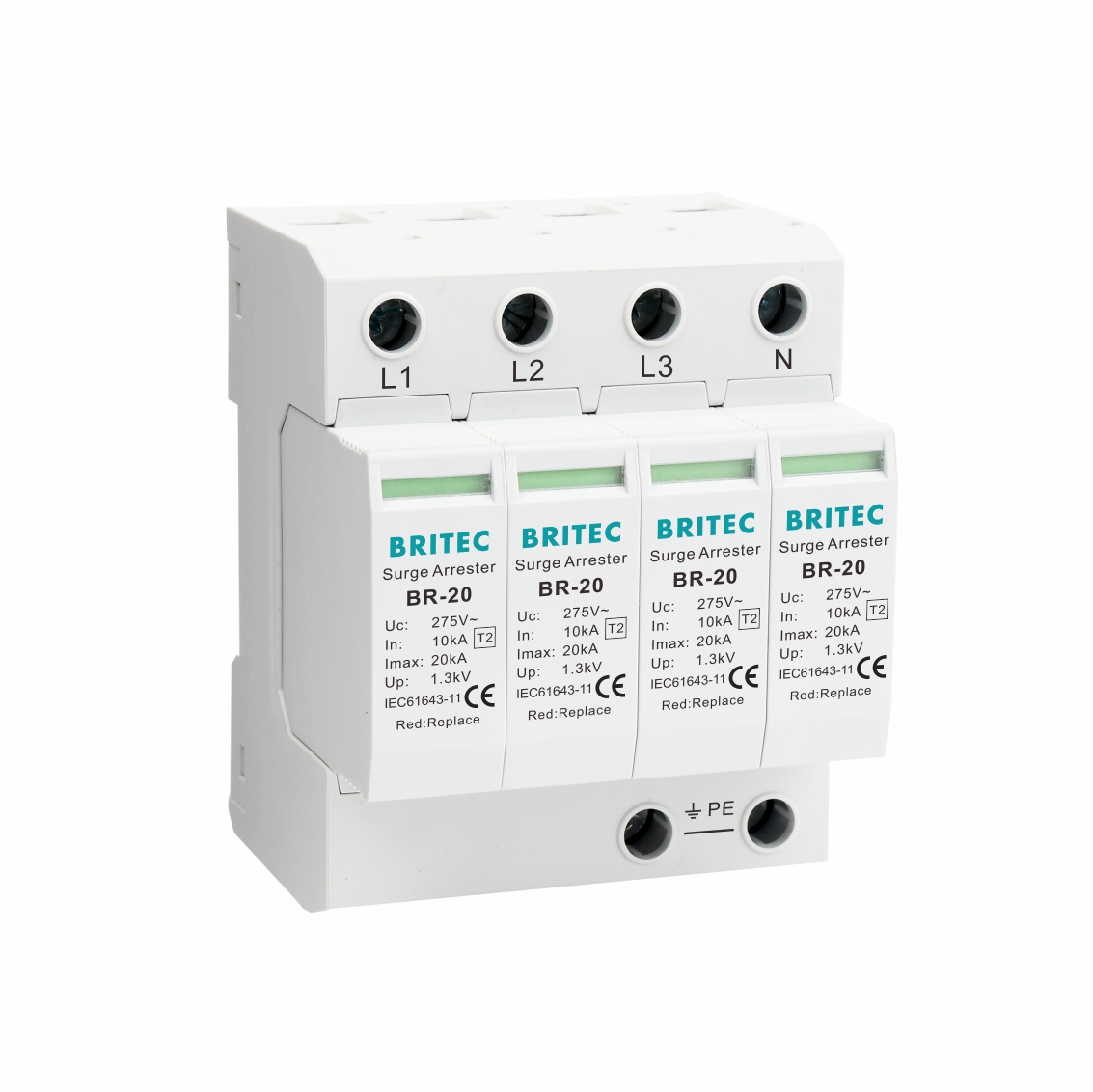

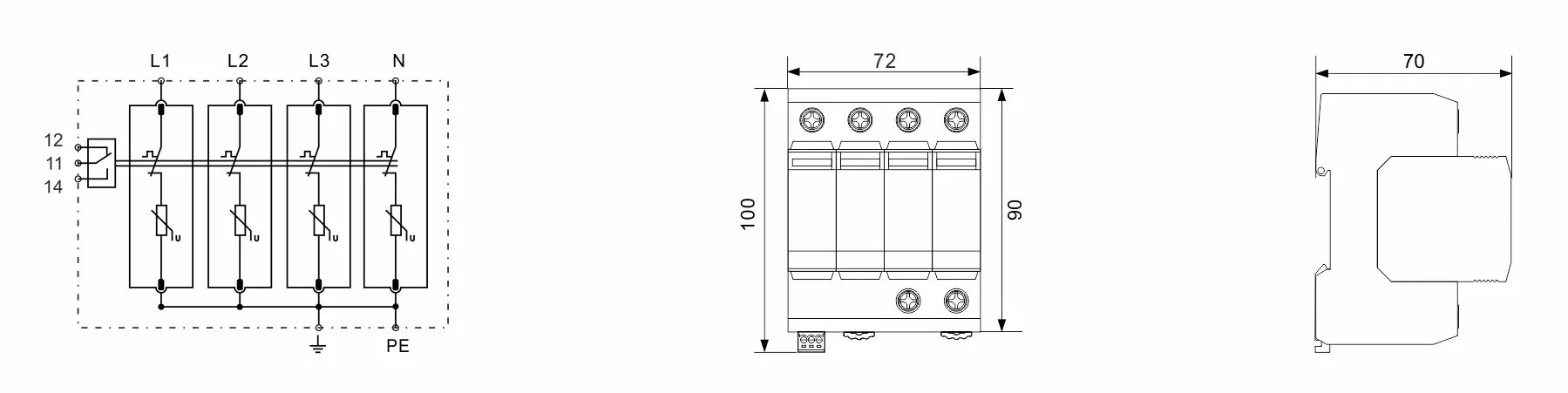

Product characteristics:
| Specification | BR-20 150 4P | BR-20 275 4P | BR-20 320 4P | BR-20 385 4P | BR-20 440 4P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 | |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II | |
| Max. continuous operating a.c. voltage | Uc | 150V | 275V | 320V | 385V | 440V |
| Nominal discharge current (8/20μs) | In | 10kA | 10kA | 10kA | 10kA | 10kA |
| Max. discharge current (8/20μs) | Imax | 20kA | 20kA | 20kA | 20kA | 20kA |
| Voltage protection level | Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
| Voltage protection level 5kA | Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
| Max. backup fuse | 63A gG | 63A gG | 63A gG | 63A gG | 63A gG | |
| Short-circuit withstand capacity | Isccr | 25kA | 25kA | 25kA | 25kA | 25kA |
| Temporary overvoltage TOV-withstand | UT | 175V/5sec. | 335V/5sec. | 350V/5sec. | 550V/5sec. | 580V/5sec. |
| Temporary overvoltage TOV-safe failure | UT | 250V/120min. | 440V/120min. | 550V/120min. | 660V/120min. | 770V/120min. |
| Response time | tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state/fault indication | green/red | green/red | green/red | green/red | green/red | |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||||
| Enclosure material | Thermoplastic UL94-V0 | |||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Order Code | B18701 | B18703 | B18705 | B18707 | B18709 | |
| Order Code (With remote signaling) | B18702 | B18704 | B18706 | B18708 | B18710 | |
Features:
• With our sustained efforts & dedicated management, we have been able to offer qualitative Class C Surge Arrester.
• Protection of heavy-loaded electrical circuits from overload
• Surge protector.
• Used to protect not only particular consumers/circuits, but also the whole panel
• Precisely designed, this surge arrester is generally used in electrical industry.
• On-Off indicating window: Green: normal function; Red: functionless, immediate replacement required.
• Surge arrestor.
• Provided surge arrester is not only manufactured from excellent quality raw material and the latest technology but also properly checked on diverse parameters.
• Din Rail mountable.
Application:
• BR-20 series surge protective devices are suitable for C grade surge protection, which protects the electrical network not shocked by the thunder.
• BR-20 Surge protective Devices (referred as SPD) provide protection against surge current resulted from direct or indirect lightning strike or similar surge voltage.
• The Britec BR-20 series surge protection devices are usually installed in low voltage main distribution box connected to the incoming end of the buildings.
• SPD is applicable to circuit with rated frequency 50/60Hz.
