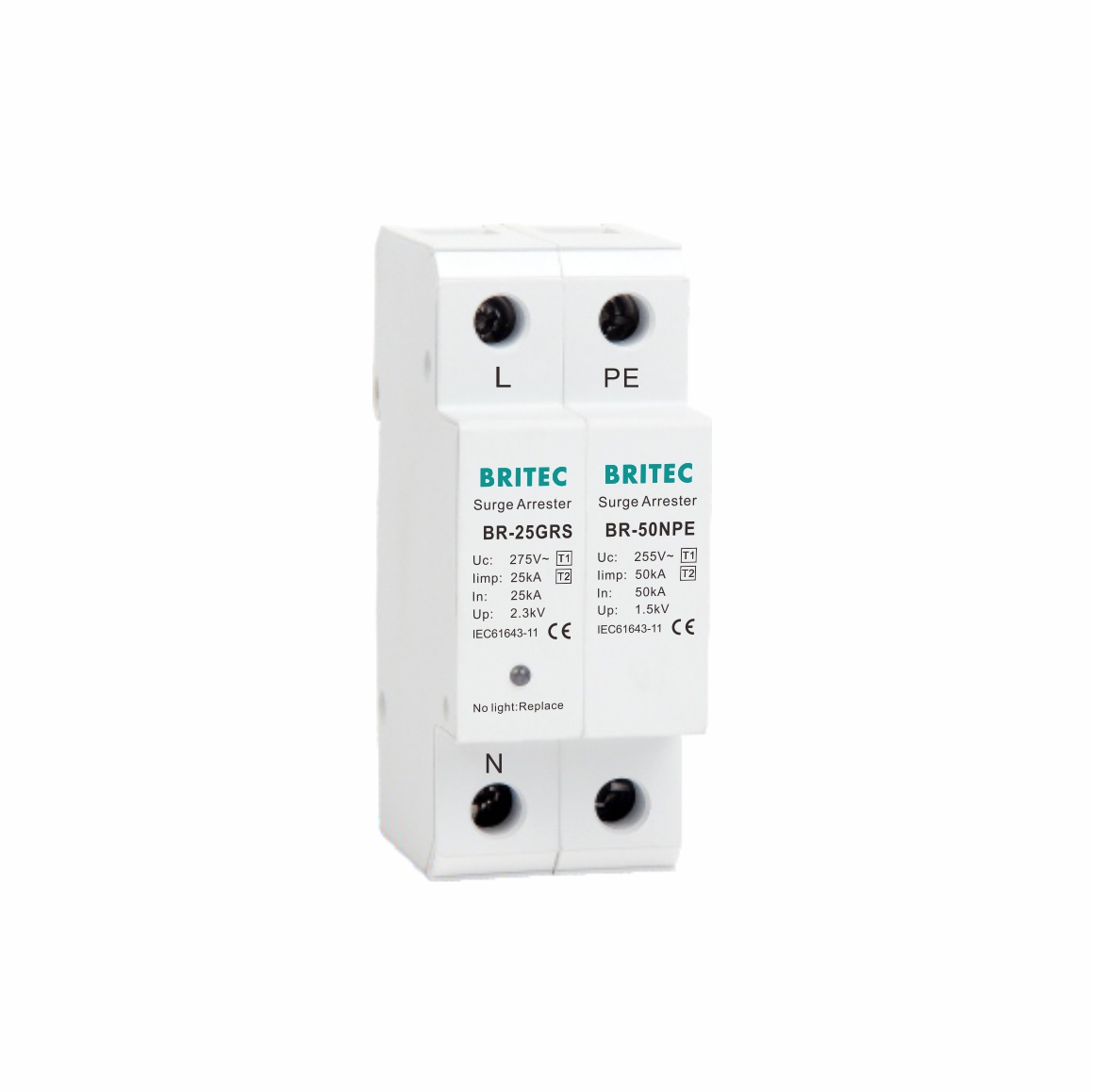

Product characteristics:
| Specification | BR-25GRS 150 1+1 | BR-25GRS 275 1+1 | BR-25GRS 320 1+1 | |
| SPD classification according to EN61643-11 | Type 1 + Type 2 | Type 1 + Type 2 | Type 1 + Type 2 | |
| SPD classification according to IEC61643-11 | Class I + Class II | Class I + Class II | Class I + Class II | |
| Nominal operating voltage | Un | 120V(50/60Hz) | 230V(50/60Hz) | 250V(50/60Hz) |
| Max. continuous operating a.c. voltage | Uc (L-N/N-PE) | 150V/255V(50/60Hz) | 275V/255V(50/60Hz) | 320V/255V(50/60Hz) |
| Lightning impulse current (10/350μs) | Iimp (L-N/N-PE) | 25kA/50kA | 25kA/50kA | 25kA/50kA |
| Nominal discharge current (8/20μs) | In (L-N/N-PE) | 25kA/50kA | 25kA/50kA | 25kA/50kA |
| Max. discharge current (8/20μs) | Imax (L-N/N-PE) | 50kA/100kA | 50kA/100kA | 50kA/100kA |
| Quantity of electric charge (L-N, N-PE) | Q | 12.5As, 25As | 12.5As, 25As | 12.5As, 25As |
| Specific energy (L-N, N-PE) | W/R | 156kJ/Ω, 625kJ/Ω | 156kJ/Ω, 625kJ/Ω | 156kJ/Ω, 625kJ/Ω |
| Voltage protection level | Up (L-N/N-PE) | ≤2.3kV/≤1.5kV | ≤2.3kV/≤1.5kV | ≤2.3kV/≤1.5kV |
| Short-circuit current rating a.c. | Isccr (L-N/N-PE) | 25kA rms/100A rms | 25kA rms/100A rms | 25kA rms/100A rms |
| Max. backup fuse | 250A gG | 250A gG | 250A gG | |
| Temporary overvoltage TOV-withstand | UT (L-N) | 250V/120min. | 440V/120min. | 550V/120min. |
| Temporary overvoltage TOV-withstand | UT (N-PE) | 1200V/200ms | 1200V/200ms | 1200V/200ms |
| Response time | tA | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | |
| Order Code | B7060 | B7073 | B7086 | |
| Order Code (With remote signaling) | B7061 | B7074 | B7087 | |
Features:
Iimp: 25kA/50kA
LED Visual display.
Remote signalling available.
35mm wide electrical installation guide rail.
Response time: ≤100ns
Simple and easy to use. More reliable and more safety.
Temperature range: -40℃—80℃
Surge protect, prevents home electric network receive excessive impact while lightning.
Number of poles: 1P+NPE
Application:
For protecting low voltage equipment from surge damages.
This products is especially suitable for application in the A grade lightning protection in high risk area of lightning strike.
Suitable for indoor operation, if installed in the outdoor, must be equipped with waterproof shell.
It is mainly used for the first stage of lightning surge overvoltage protection in AC distribution system.
Used to protect electrical and electronic equipment from lightning electromagnetic pulse induced voltages, operating transients and overvoltages.
Widely used in communication equipment, power, security, traffic, industrial control and other fields of power protection.
Distribution box with overhead input in building.
Installation:
Type 1 or Type 1+2 SPD (Iimp ≥ 12.5 kA) compulsory at the installation source (main distribution board in secondary buildings).
Installations more than 10 m high (apartment buildings, office buildings, hotels, etc.): type 2 SPD recommended for protecting private areas and floor distributors (communal areas) in addition to a type 1 or type 1+2 SPDs.

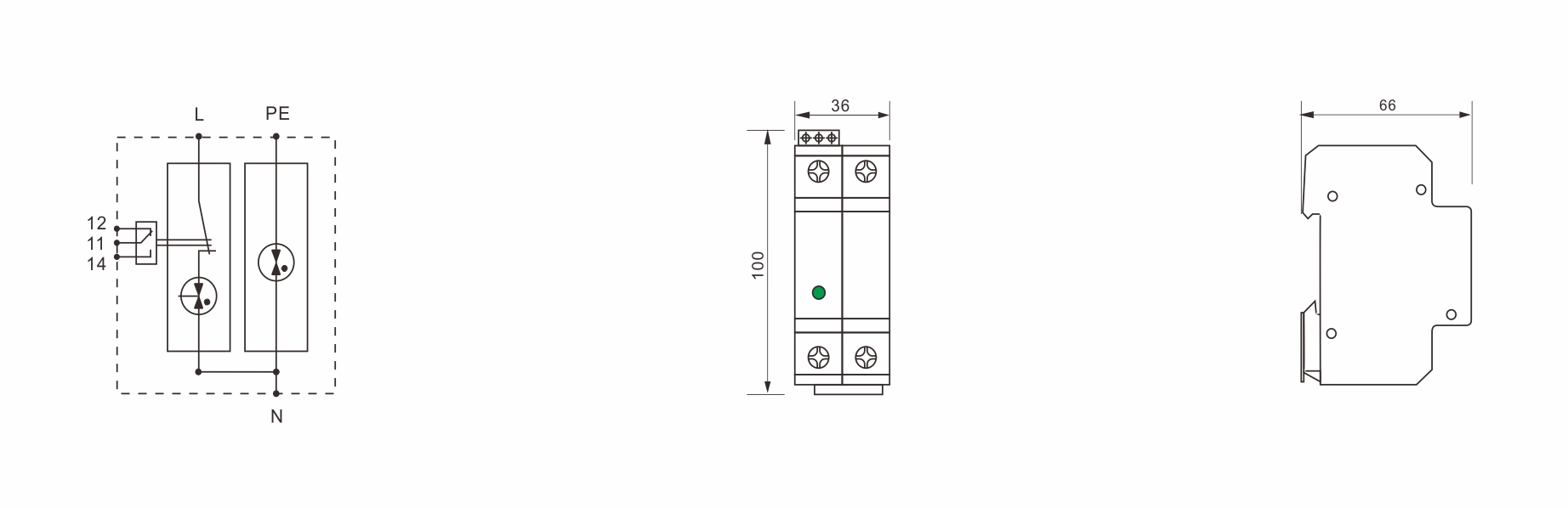

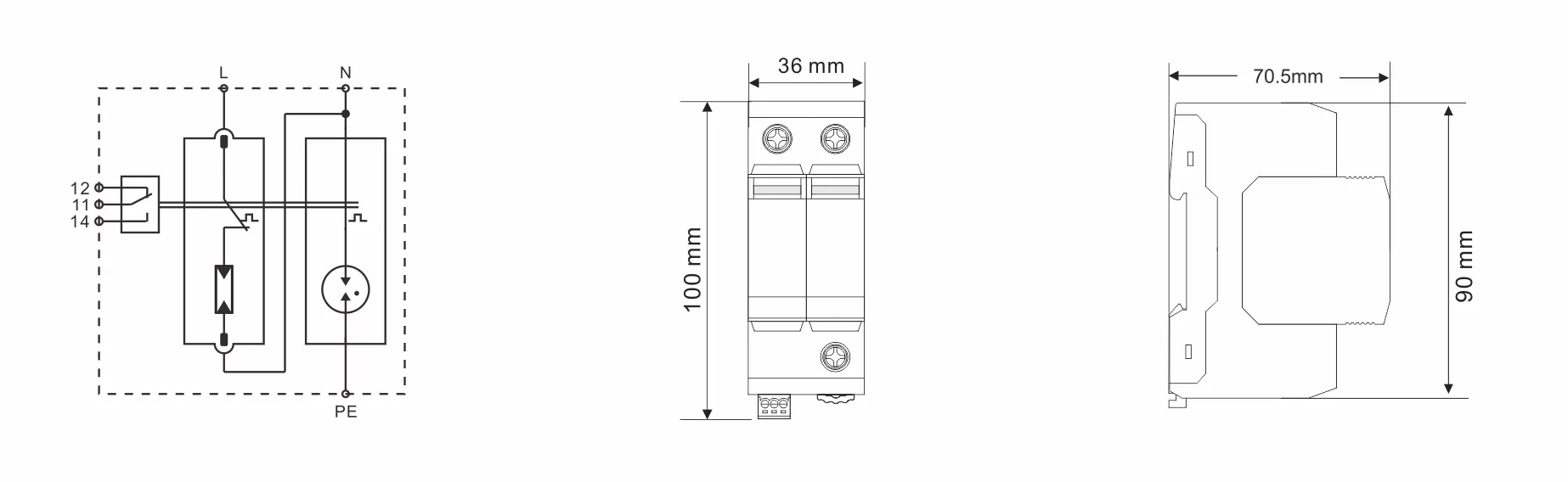

SCHEMAS
