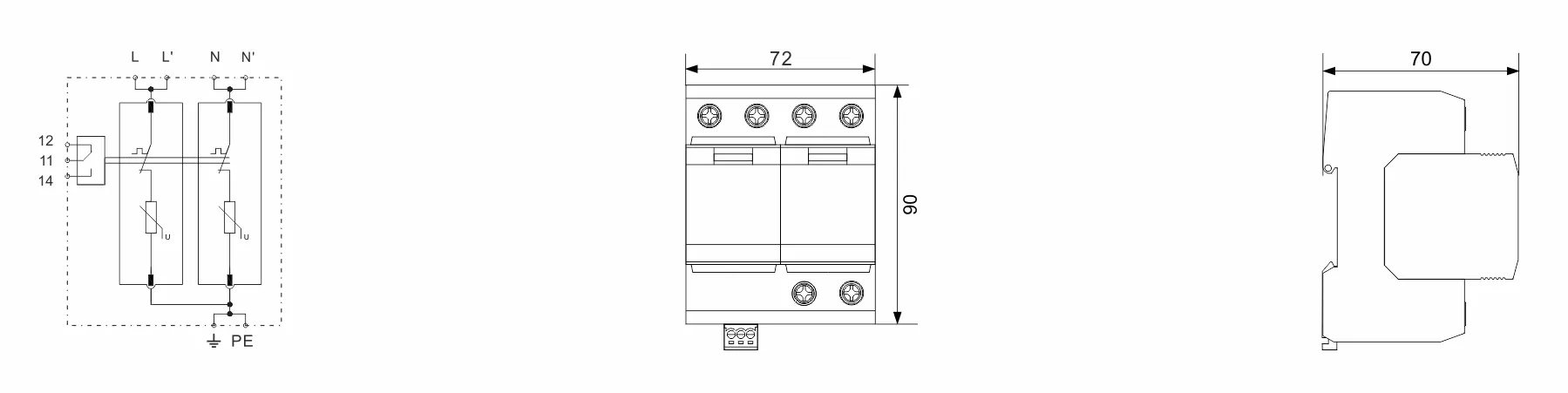

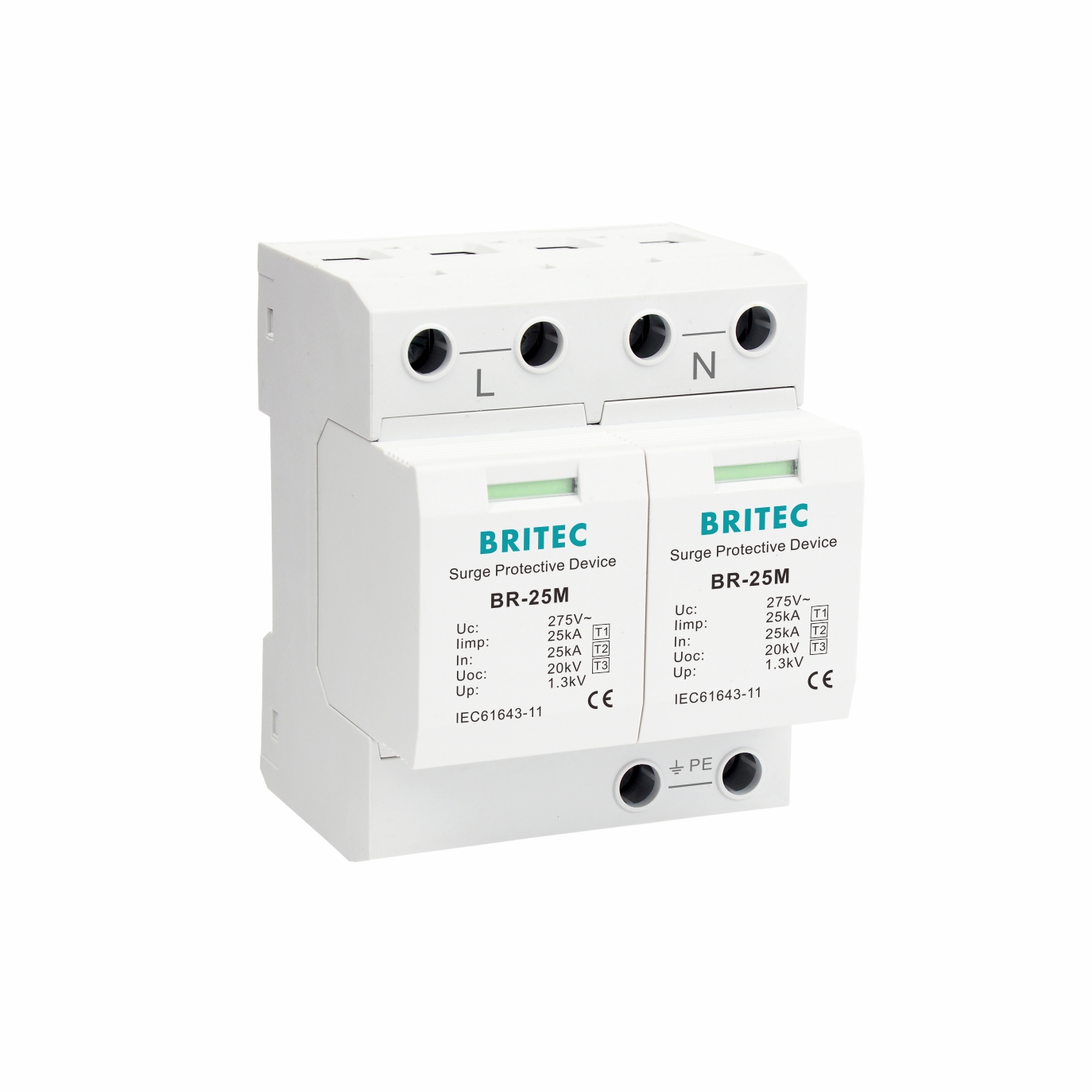

Product characteristics:
| Specification | BR-25M 150 2P | BR-25M 275 2P | BR-25M 320 2P | |
| SPD classification according to EN61643-11 | Type 1 + Type 2 +Type 3 | Type 1 + Type 2 +Type 3 | Type 1 + Type 2 +Type 3 | |
| SPD classification according to IEC61643-11 | Class I + Class II + Class III | Class I + Class II + Class III | Class I + Class II + Class III | |
| Nominal operating voltage | Un | 120V(50/60Hz) | 230V(50/60Hz) | 250V(50/60Hz) |
| Max. continuous operating a.c. voltage | Uc | 150V(50/60Hz) | 275V(50/60Hz) | 320V(50/60Hz) |
| Lightning impulse current (10/350μs) | Iimp | 25kA | 25kA | 25kA |
| Total discharge current (10/350μs) | Itotal | 50kA | 50kA | 50kA |
| Nominal discharge current (8/20μs) | In | 25kA | 25kA | 25kA |
| Max. discharge current (8/20μs) | Imax | 120kA | 120kA | 120kA |
| Quantity of electric charge | Q | 12.5As | 12.5As | 12.5As |
| Specific energy | W/R | 156kJ/Ω | 156kJ/Ω | 156kJ/Ω |
| Voltage protection level | Up | ≤0.8kV | ≤1.3kV | ≤1.3kV |
| Short-circuit current rating a.c. | Isccr | 25kA rms | 25kA rms | 25kA rms |
| Max. backup fuse | 200A gG | 200A gG | 200A gG | |
| Temporary overvoltage TOV-withstand | UT | 175V/5sec. | 335V/5sec. | 350V/5sec. |
| Temporary overvoltage TOV-safe failure | UT | 250V/120min. | 440V/120min. | 550V/120min. |
| Leakage current | Ipe | ＜2mA | ＜2mA | ＜2mA |
| Response time | tA | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | |
| Order Code | B17204 | B18123 | B17217 | |
| Order Code (With remote signaling) | B17205 | B18124 | B17218 | |
Features:
Iimp: 25kA.
Imax: 100kA.
Combined impulse: 20kV.
Anti-counterfeiting label pressure molding, ensure the uniqueness of the product.
Remote signal terminals, the product can be configured remote terminals, remote monitoring.
The shell adopts thermal plastic material, high flame retardant, anti-corrosion, harsh environment still normal use.
Application:
1. General distribution panel in buildings
2. Distribution box with overhead input in buildings
3. Distribution cabinet and distribution box for outdoor high-power equipment.
Installation:
The 25kA first level surge protector shall be installed in a waterproof environment and free from violent vibration.
Ensure that the maximum continuous working voltage of the surge protector meets the actual requirements.
The wire connecting the surge protector should be as short and straight as possible, and the total length of the wire should be controlled within 0.5 meters.
Before powering on the power supply, check whether the cable is securely connected to the wiring terminal and whether the ground is reliable.
