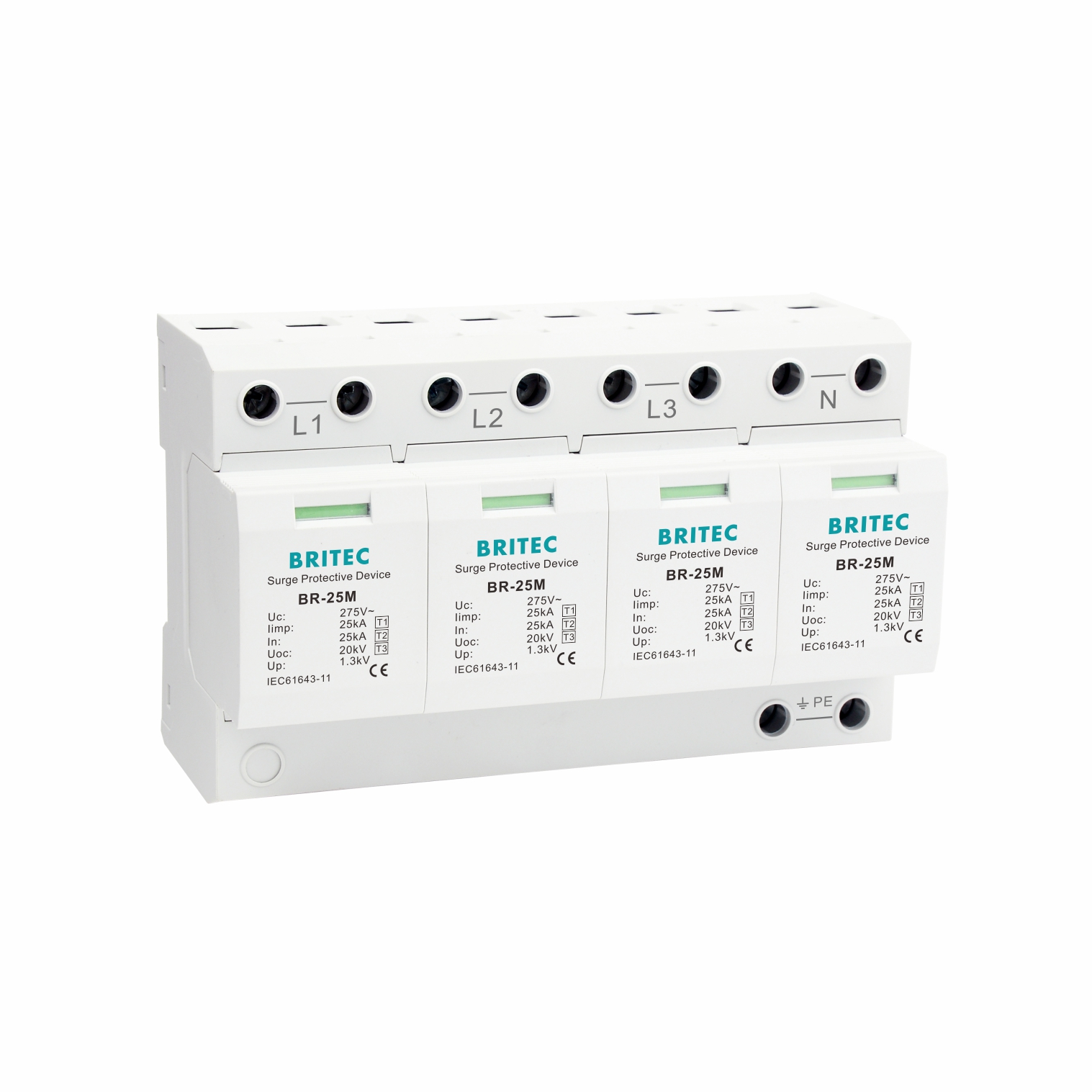

BR-25M 4P Type 1 25kA Surge Arrester For TNS

Get A Quote
Description

Product characteristics:

Specification BR-25M 150 4P BR-25M 275 4P BR-25M 320 4P
SPD classification according to EN61643-11 Type 1 + Type 2 +Type 3 Type 1 + Type 2 +Type 3 Type 1 + Type 2 +Type 3
SPD classification according to IEC61643-11 Class I + Class II + Class III Class I + Class II + Class III Class I + Class II + Class III
Nominal operating voltage Un 120V/240V(50/60Hz) 230V/400V(50/60Hz) 250V/440V(50/60Hz)
Max. continuous operating a.c. voltage Uc 150V(50/60Hz) 275V(50/60Hz) 320V(50/60Hz)
Lightning impulse current (10/350μs) Iimp 25kA 25kA 25kA
Total discharge current (10/350μs) Itotal 100kA 100kA 100kA
Nominal discharge current (8/20μs) In 25kA 25kA 25kA
Max. discharge current (8/20μs) Imax 120kA 120kA 120kA
Quantity of electric charge Q 12.5As 12.5As 12.5As
Specific energy W/R 156kJ/Ω 156kJ/Ω 156kJ/Ω
Voltage protection level Up ≤0.8kV ≤1.3kV ≤1.3kV
Short-circuit current rating a.c. Isccr 25kA rms 25kA rms 25kA rms
Max. backup fuse 200A gG 200A gG 200A gG
Temporary overvoltage TOV-withstand UT 175V/5sec. 335V/5sec. 350V/5sec.
Temporary overvoltage TOV-safe failure UT 250V/120min. 440V/120min. 550V/120min.
Leakage current Ipe <2mA <2mA <2mA
Response time tA ≤25ns ≤25ns ≤25ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃
Cross-section area (Min.) 4mm² 4mm² 4mm²
Cross-section area (Max.) 35mm² 35mm² 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20 IP20
Order Code B17200 B18143 B17213
Order Code (With remote signaling) B17201 B18144 B17214

Features:

Pole number:1P,2P,3P,4P,1+1NPE,3+1NPE

Powerful components, suitable for all kinds of common power systems.

Can be used in TN-S systems

The surge arrester meets the requirements of IEC61643-11

The unit is designed to be used between Zone O and Zone 1 (according to IEC62305-4 definition of Lightning Protection Area).

The product is mainly used for the Class I protection of the power system.

The product is mainly 10/350 waveform, up to 25KA

Installed in the main power distribution

Application:

• The product is mainly used for primary protection of power system.

• Application-optimised and prewired combined lightning current and surge arrester for TN-S systems.

• Installed in the main power distribution box.

• Used to Industry and automation, commercial and residential installations, telecom & IT & data centers, water treatment, smart grid & LV metering, photovoltaic and wind etc.

Installation:

• Power must be cut off before installation. Live operation is prohibited.

• It is recommended that a fuse or circuit breaker be connected in series at the front end of the surge protection.

• SPD is installed in parallel at the power supply inlet end of the building distribution box or the equipment room. The product is installed in the guide rail type. If conditions permit, the Kevin connection mode can be adopted.

• During installation, connect the device according to the installation diagram, where L is the phase line,N is the neutral line, and PE is the ground line. Do not misconnect the device. After the installation is complete, turn on the automatic circuit breaker and check whether the working status is normal.

• When the SPD is in use, check the status of the fault display window regularly. If the fault display window is red or the remote terminal outputs an alarm signal, it indicates that the SPD is faulty and should be repaired or replaced in time.

• Suitable for indoor operation, such as installed in the outdoor, must be equipped with waterproof shell.
