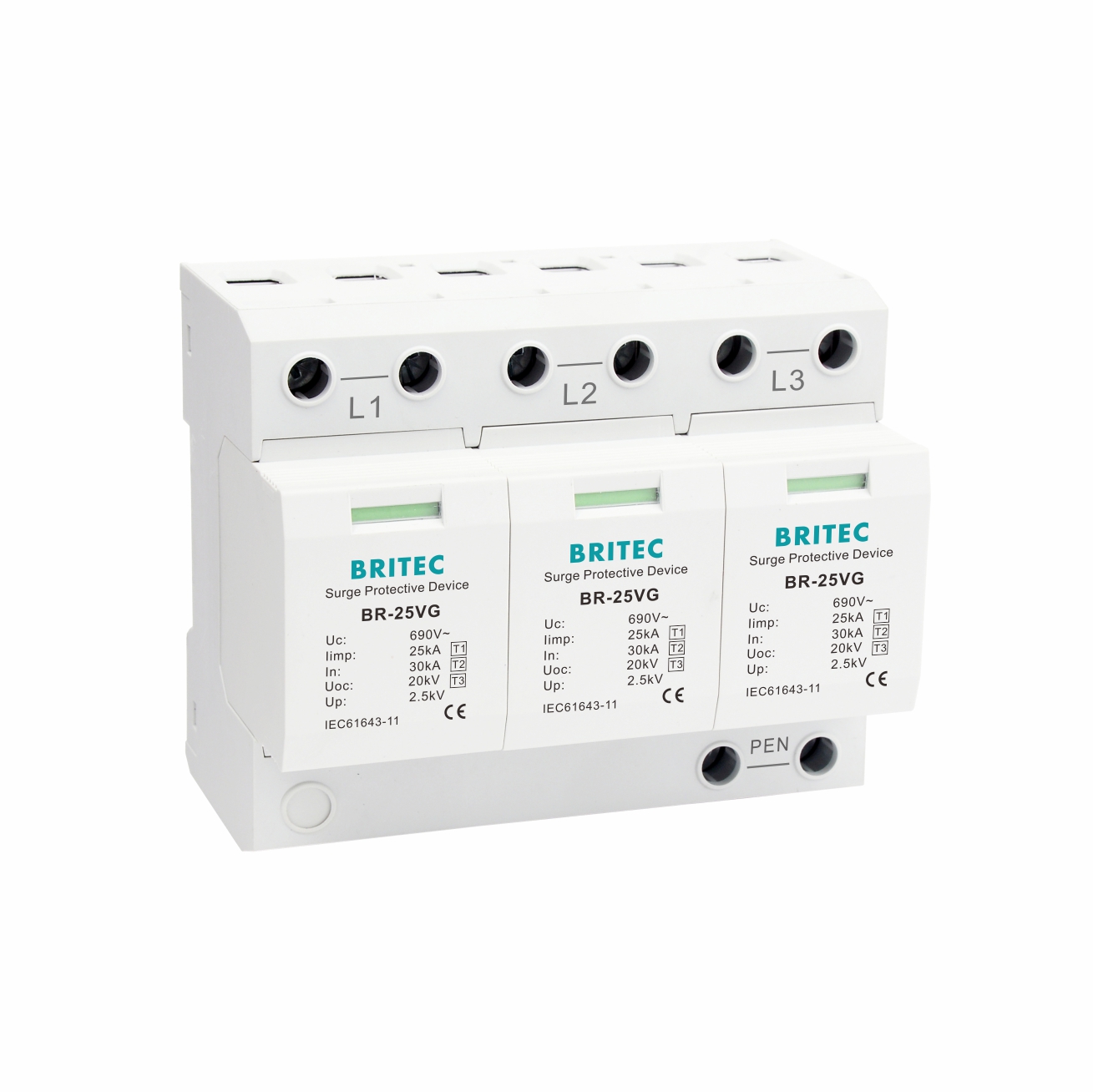

Product characteristics:
| Specification | BR-25VG 320 3P | BR-25VG 440 3P | BR-25VG 690 3P | |
| SPD classification according to EN61643-11 | Type 1 + Type 2 +Type 3 | Type 1 + Type 2 +Type 3 | Type 1 + Type 2 +Type 3 | |
| SPD classification according to IEC61643-11 | Class I + Class II + Class III | Class I + Class II + Class III | Class I + Class II + Class III | |
| Nominal operating voltage | Un | 250V/440V(50/60Hz) | 250V/440V(50/60Hz) | 400V/690V(50/60Hz) |
| Max. continuous operating a.c. voltage | Uc | 320V(50/60Hz) | 440V(50/60Hz) | 690V(50/60Hz) |
| Lightning impulse current (10/350μs) | Iimp | 25kA | 25kA | 25kA |
| Total discharge current (10/350μs) | Itotal | 75kA | 75kA | 75kA |
| Nominal discharge current (8/20μs) | In | 30kA | 30kA | 30kA |
| Max. discharge current (8/20μs) | Imax | 70kA | 70kA | 70kA |
| Quantity of electric charge | Q | 12.5As | 12.5As | 12.5As |
| Specific energy | W/R | 156kJ/Ω | 156kJ/Ω | 156kJ/Ω |
| Voltage protection level | Up | ≤1.5kV | ≤1.8kV | ≤2.5kV |
| Short-circuit current rating a.c. | Isccr | 25kA rms | 25kA rms | 25kA rms |
| Max. backup fuse | 200A gG | 200A gG | 200A gG | |
| Temporary overvoltage TOV-withstand | UT | 350V/5sec. | 580V/5sec. | 880V/5sec. |
| Temporary overvoltage TOV-safe failure | UT | 550V/120min. | 770V/120min. | 1100V/120min. |
| Leakage current | Ipe | 0mA | 0mA | 0mA |
| Response time | tA | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | |
| Order Code | B17263 | B17275 | B17287 | |
| Order Code (With remote signaling) | B17264 | B17276 | B17288 | |
Features:
Type 1 surge protector
Powerful components, suitable for all kinds of common power systems.
This DIN rail mounted surge protectors are easy to install in any standardized distribution pane or control cabinets.
The unit is designed to be used between Zone O and Zone 1 (according to IEC62305-4 definition of Lightning Protection Area).
10/350 waveform 25KA surge arrester
Green/Red window color showing working status, green=normal, red=abnormal
Installed in the main power distribution
Application:
• Prevents lightning overvoltage and transient overcurrent from intruding into the power supply line from disrupting the normal operation of the power supply system and electrical equipment.
• It is applicable to lightning protection for the power system in areas with high lightning risk (LPZ0B or the interface between LPZ0B and LPZ1).
• Installed in the main power distribution box.
• Suitable for three-phase TN-C power supply system with AC of 50 to 60Hz
Installation:
• Power must be cut off before installation. Live operation is prohibited.
• It is recommended that a fuse or circuit breaker be connected in series at the front end of the surge protection.
• SPD is installed in parallel at the power supply inlet end of the building distribution box or the equipment room. The product is installed in the guide rail type. If conditions permit, the Kevin connection mode can be adopted.

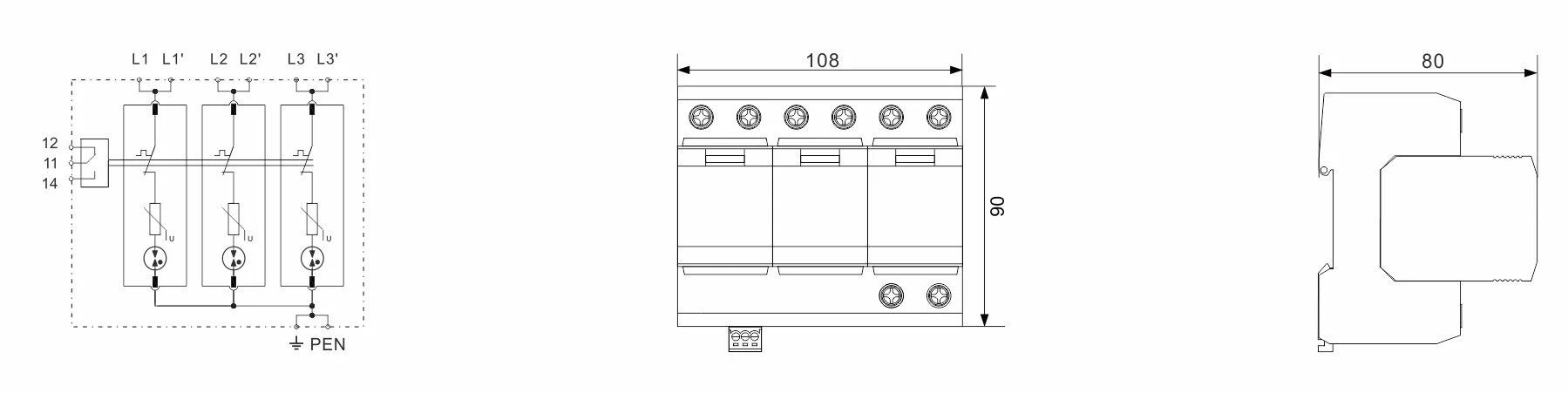

• During installation, connect the device according to the installation diagram, where L is the phase line,N is the neutral line, and PE is the ground line. Do not misconnect the device. After the installation is complete, turn on the automatic circuit breaker and check whether the working status is normal.
• When the SPD is in use, check the status of the fault display window regularly. If the fault display window is red or the remote terminal outputs an alarm signal, it indicates that the SPD is faulty and should be repaired or replaced in time.
• Suitable for indoor operation, such as installed in the outdoor, must be equipped with waterproof shell.
