Product characteristics:
| Specification | BR-40 150 3+1 | BR-40 275 3+1 | BR-40 320 3+1 | BR-40 385 3+1 | BR-40 440 3+1 | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 | |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II | |
| Max. continuous operating a.c. voltage(L-N) | Uc | 150V | 275V | 320V | 385V | 440V |
| Max. continuous operating a.c. voltage(N-PE) | Uc | 255V | 255V | 255V | 255V | 255V |
| Nominal discharge current (8/20μs) | In | 20kA | 20kA | 20kA | 20kA | 20kA |
| Max. discharge current (8/20μs) | Imax | 40kA | 40kA | 40kA | 40kA | 40kA |
| Voltage protection level (L-N) | Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
| Voltage protection level 5kA (L-N) | Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
| Voltage protection level (N-PE) | Up | ≤1.5kV | ≤1.5kV | ≤1.5kV | ≤1.5kV | ≤1.5kV |
| Max. backup fuse | 125A gG | 125A gG | 125A gG | 125A gG | 125A gG | |
| Short-circuit withstand capacity | Isccr | 25kA | 25kA | 25kA | 25kA | 25kA |
| Temporary overvoltage TOV-withstand (L-N) | UT | 175V/5sec. | 335V/5sec. | 350V/5sec. | 550V/5sec. | 580V/5sec. |
| Temporary overvoltage TOV-safe failure(L-N) | UT | 250V/120min. | 440V/120min. | 550V/120min. | 660V/120min. | 770V/120min. |
| Temporary overvoltage TOV-withstand(N-PE) | UT | 1200V/200ms | 1200V/200ms | 1200V/200ms | 1200V/200ms | 1200V/200ms |
| Response time (L-N) | tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Response time (N-PE) | tA | ≤100ns | ≤100ns | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state/fault indication | green/red | green/red | green/red | green/red | green/red | |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||||
| Enclosure material | Thermoplastic UL94-V0 | |||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Order Code | B18451 | B18453 | B18455 | B18457 | B18249 | |
| Order Code (With remote signaling) | B18452 | B18454 | B18456 | B18458 | B18250 | |

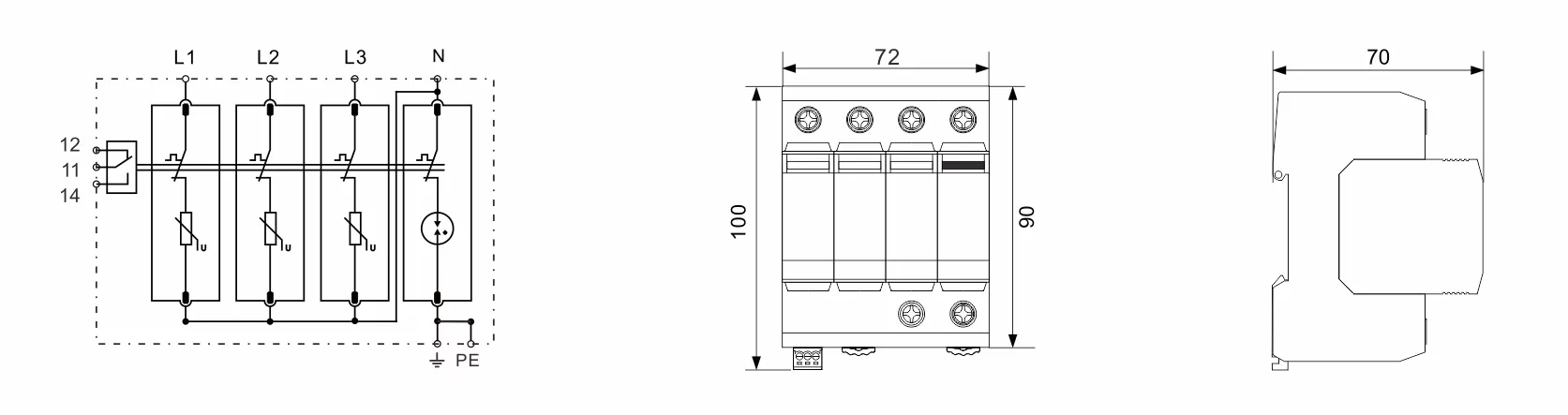

Features:

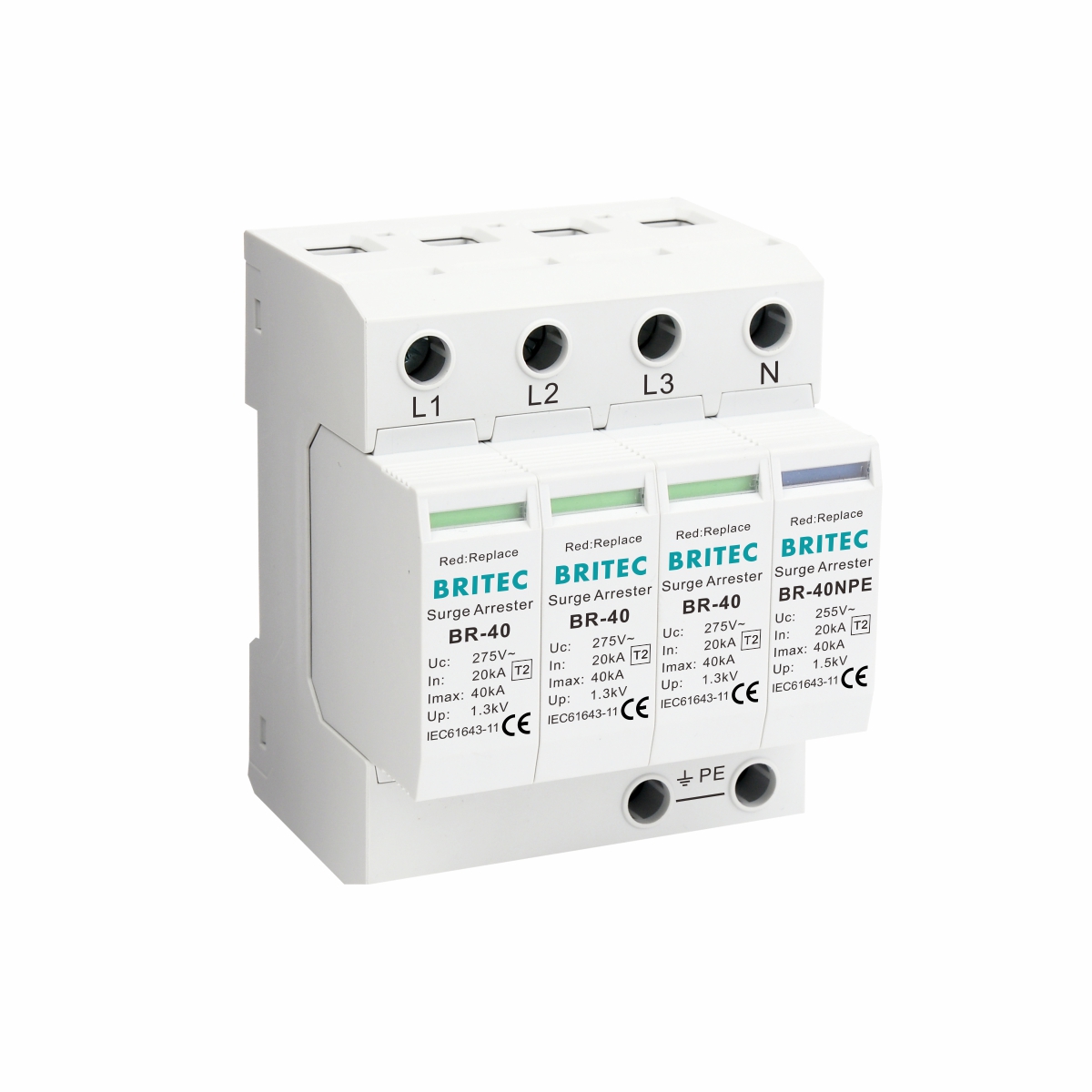

40kA Class C for 3 Phase Supply.
It is compact devices designed to protect 3-phase+neutral networks at the main switchboard.
The product is complying with the standards: EN 61643-11, CEI 61643-11, UL1449 ed. 4 compliance.
The protection circuitry is based on high energy varistor with thermal disconnection devices.
Easy to operate.
There is an indicator on the cartridges to signal failure mode.
Long service life.
The BR-40 is DIN rail mounted and features replaceable modules for the safest and easiest installation and maintenance.
Excellent functionality
Consistent plug ability(even for N/PE spark gap)
BR-40 series are designed to protect against lighting surge voltages. These units must be installed in parallel on the AC networks to be protected and provide common and differential modes protection.
Thermal disconnect device for each individual connector
Surge Protection Device / Arrester are for protection against switching surges.
With or without floating remote indication contact
Time of response<25ns.
The color of the visible window shows operating status, green means normal, red means abnormal.
Application:
These devices protect low-voltage consumer systems from over voltages of all types.
Protection of terminal devices.
For using in the zones concept at boundary 1-2.
Used for protection against electrical transients.
Further information or a personal consultation? Our products and know-how are there to provide solutions.
