Product characteristics:
| Specification | BR-40 690 3P | BR-40 800 3P |
BR-40 1000 3P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | |
| Max. continuous operating a.c. voltage | Uc | 690V | 800V | 1000V |
| Nominal discharge current (8/20μs) | In | 20kA | 20kA | 20kA |
| Max. discharge current (8/20μs) | Imax | 40kA | 40kA | 40kA |
| Voltage protection level | Up | ≤3.2kV | ≤3.6kV | ≤4.0kV |
| Voltage protection level 5kA | Up | ≤2.3kV | ≤2.8kV | ≤3.3kV |
| Max. backup fuse | 100A gG | 100A gG | 100A gG | |
| Short-circuit withstand capacity | Isccr | 25kA | 25kA | 25kA |
| Temporary overvoltage TOV-withstand | UT | 800V/5sec. | 1000V/5sec. | 1100V/5sec. |
| Temporary overvoltage TOV-safe failure | UT | 1000V/120min. | 1200V/120min. | 1400V/120min. |
| Response time | tA | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state/fault indication | green/red | green/red | green/red | |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | |
| Order Code | B18034 | B7955 | B18050 | |
| Order Code (With remote signaling) | B18035 | B7956 | B18051 | |
Features:
This Type 2 Surge Protection Device is designed to provide reliable protection against electrical overvoltage events in commercial and industrial systems up to 690V/800V/1000V.
In: 20kA.
With a maximum discharge current of 40kA
Protect from indirect lightning impulse and other transient over voltage.
This Type 2 surge protector is designed to meet IP20 protection level standards.
Response Time: 25ns
Operating Temperature: -40°C To +80°C
Color of visible window shows operating status, normal green, red fault.
With remote signaling contact for control device.
Patented fast tripping mechanism.
Standard: IEC/EN 6163-11

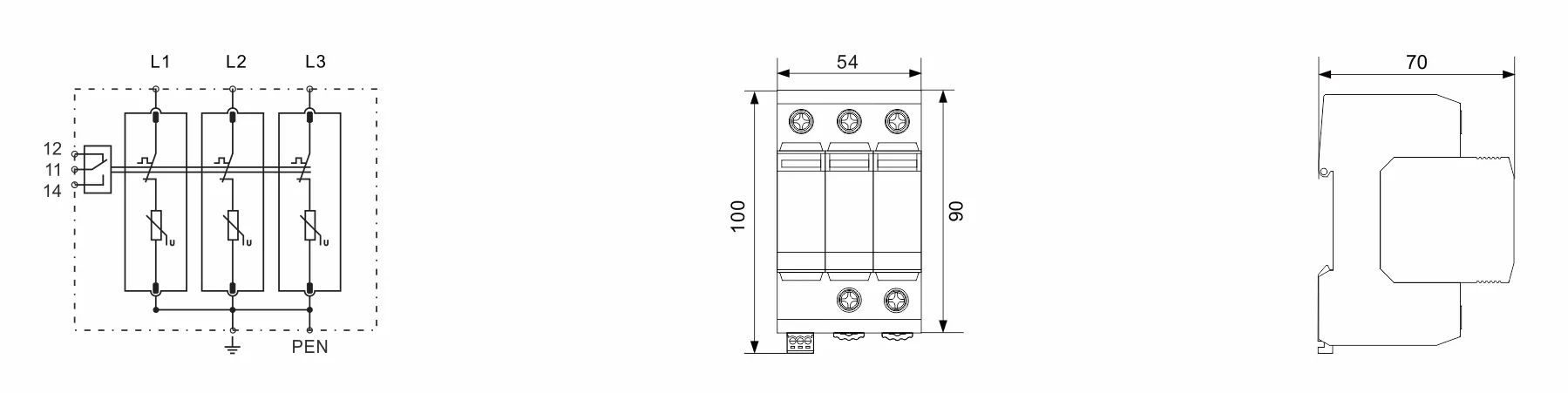

Consisting of a base part and plug-in protection modules.
Application:

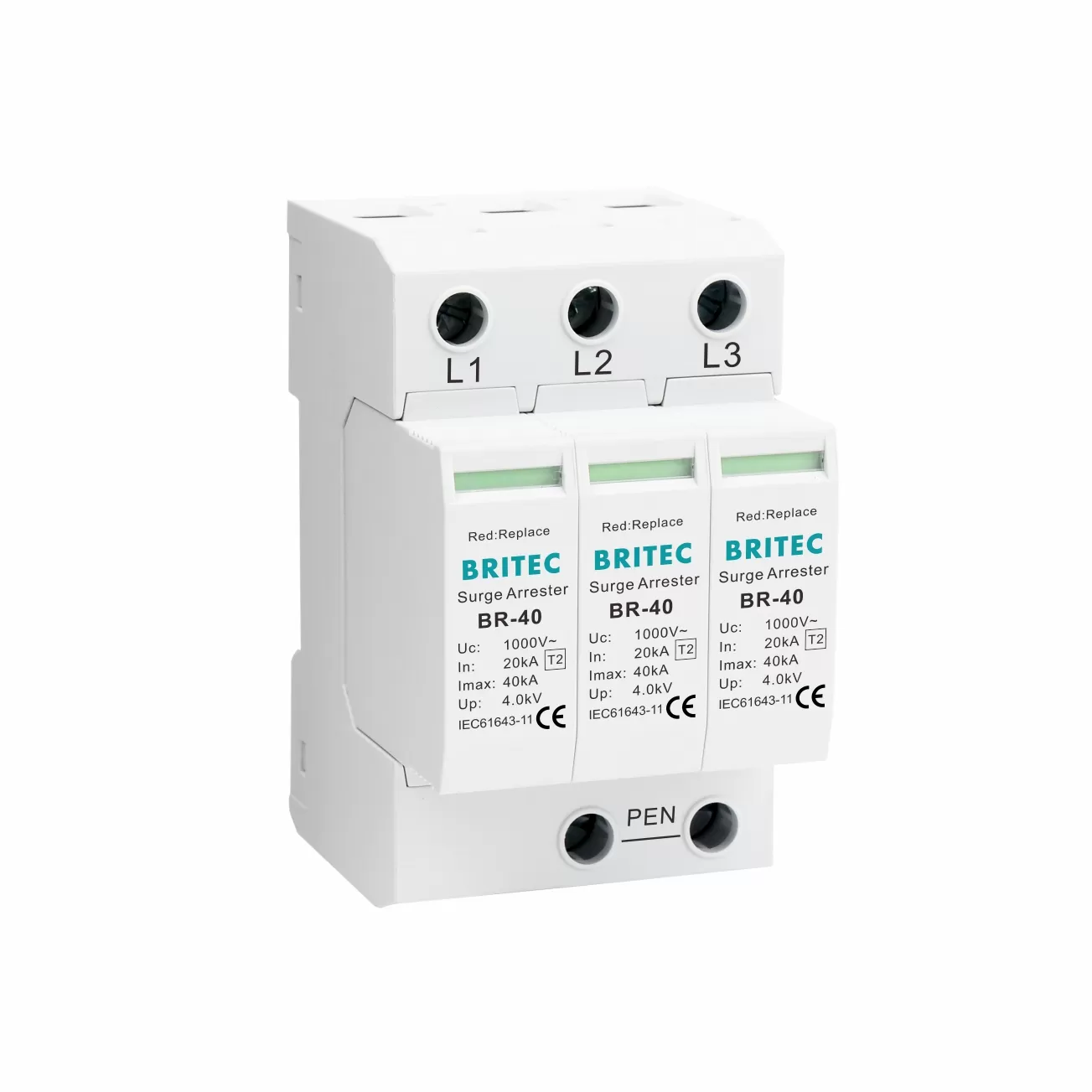

BRITEC BR-40 3P Type 2 Surge Protection Device can provide reliable overvoltage protection for low voltage power distribution systems.
Further information or a personal consultation? Our products and know-how are there to provide solutions.
