Product characteristics:
| Specification | BR-40 690 4P | BR-40 1000 4P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | |
| SPD classification according to IEC61643-11 | Class II | Class II | |
| Max. continuous operating a.c. voltage | Uc | 690V | 1000V |
| Nominal discharge current (8/20μs) | In | 20kA | 20kA |
| Max. discharge current (8/20μs) | Imax | 40kA | 40kA |
| Voltage protection level | Up | ≤2.0kV | ≤2.0kV |
| Voltage protection level 5kA | Up | ≤1.6kV | ≤1.6kV |
| Max. backup fuse | 125A gG | 125A gG | |
| Short-circuit withstand capacity | Isccr | 25kA | 25kA |
| Temporary overvoltage TOV-withstand | UT | 880V/5sec. | 1300V/5sec. |
| Temporary overvoltage TOV-safe failure | UT | 1100V/120min. | 1700V/120min. |
| Response time | tA | ≤25ns | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ |
| Operating state/fault indication | green/red | green/red | |
| Cross-section area (Min.) | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | ||
| Enclosure material | Thermoplastic UL94-V0 | ||
| Degree of protection | IP20 | IP20 | |
| Order Code | B18036 | B18052 | |
| Order Code (With remote signaling) | B18037 | B18053 | |
Features:

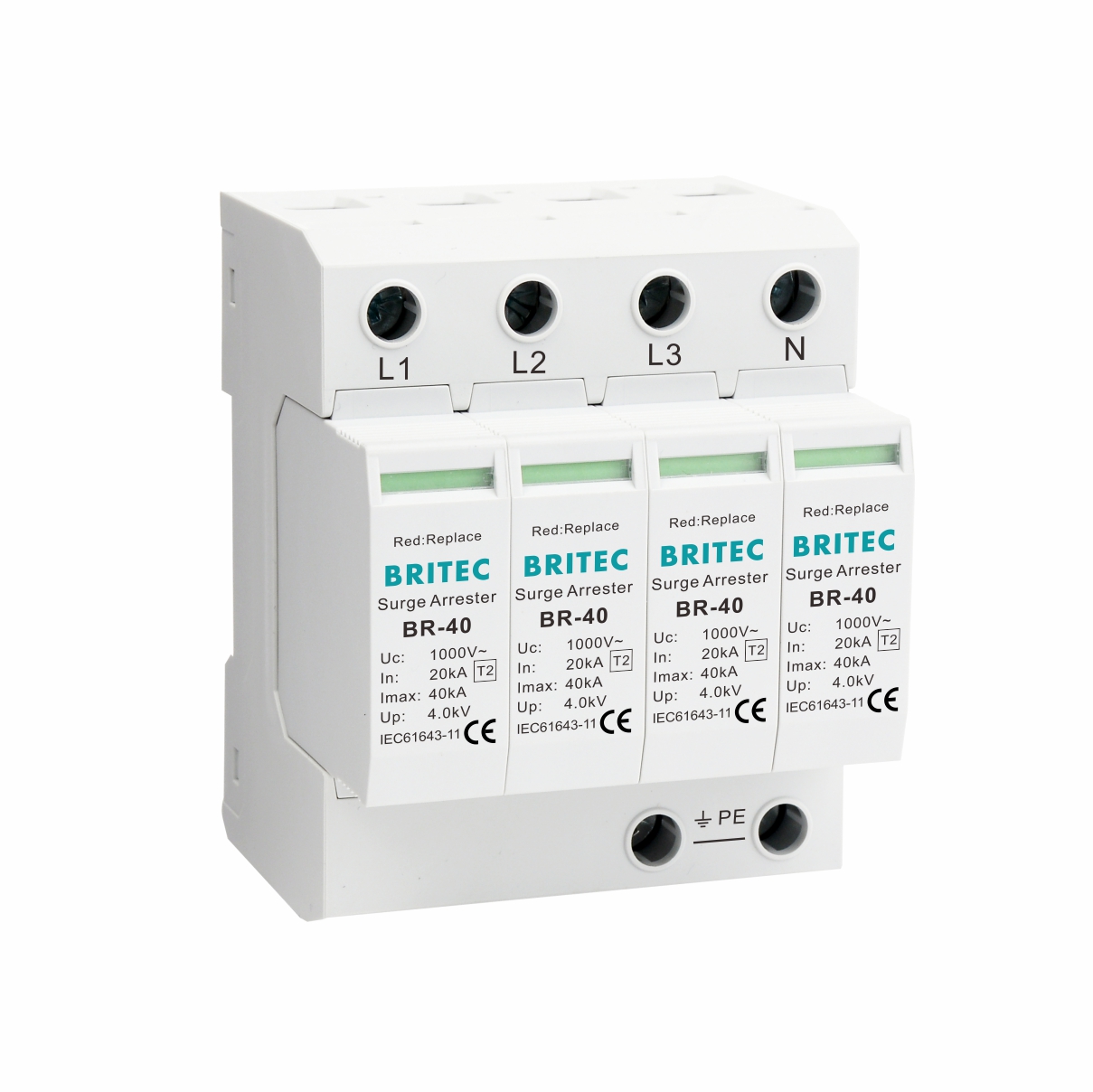

BRITEC BR-40 4P AC Protective Arrester SPD is suitably used in the TN-S power supply system of AC.
In: 20kA.
Suitable for system power protection, such as power distribution cabinet, switch cabinet, switch cabinet, AC distribution board, etc.
Protect from indirect lightning impulse and other transient over voltage.
Protection class: Type 2 , Class II.
The maximum protection level Up is 2.0 kV
Low residual voltage and quick response
The reaction time of less than 25 ns.
Uc 690V/1000V
Color of visible window shows operating status, normal green, red fault.
With remote signaling contact for control device.
Patented fast tripping mechanism.
Standard: IEC/EN 6163-11
Consisting of a base part and plug-in protection modules.
Application:
Designed for installations where direct lightning strike risk is reduced (without LPS or medium risk).
Further information or a personal consultation? Our products and know-how are there to provide solutions.
