Product characteristics:
| Specification | BR275-40DP 1+1 | BR320-40DP 1+1 | |||
| SPD classification according to EN61643-11 | Type 2 + Type 3 | Type 2 + Type 3 | |||
| SPD classification according to IEC61643-11 | Class II + Class III | Class II + Class III | |||
| Max. continuous operating a.c. voltage | Uc(L-N/N-PE) | 275V/255V | 320V/255V | ||
| Nominal discharge current (8/20μs) | In | 20kA | 20kA | ||
| Max. discharge current (8/20μs) | Imax | 40kA | 40kA | ||
| Combined impulse | Uoc | 10kV | 10kV | ||
| Voltage protection level | Up(L-N/N-PE) | ≤1.3kV/≤1.5kV | ≤1.5kV/≤1.5kV | ||
| Response time | tA | ≤25ns | ≤25ns | ||
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | ||
| Operating state / fault indication | green / red | green / red | |||
| Cross-section area (Min.) | 2.5mm² | 2.5mm² | |||
| Cross-section area (Max.) | 16mm² | 16mm² | |||
| For mounting on | 35mm Din rail | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | ||||
| Degree of protection | IP20 | IP20 | |||
| Order code | B18245 | B17256 | |||
| Order code (with remote signal) | B18246 | B17257 | |||
Features:
High discharge current, Imax 40kA.
Rated Operating Voitage(UC):275V/320V.
Degree of protection: IP20.
Remote signal version available.
Number of poles: 1 Poles+NPE.
Conforming fully to international IEC 61643-11 and EN 61643-11 standards.
Indication window for clear display of SPD status.

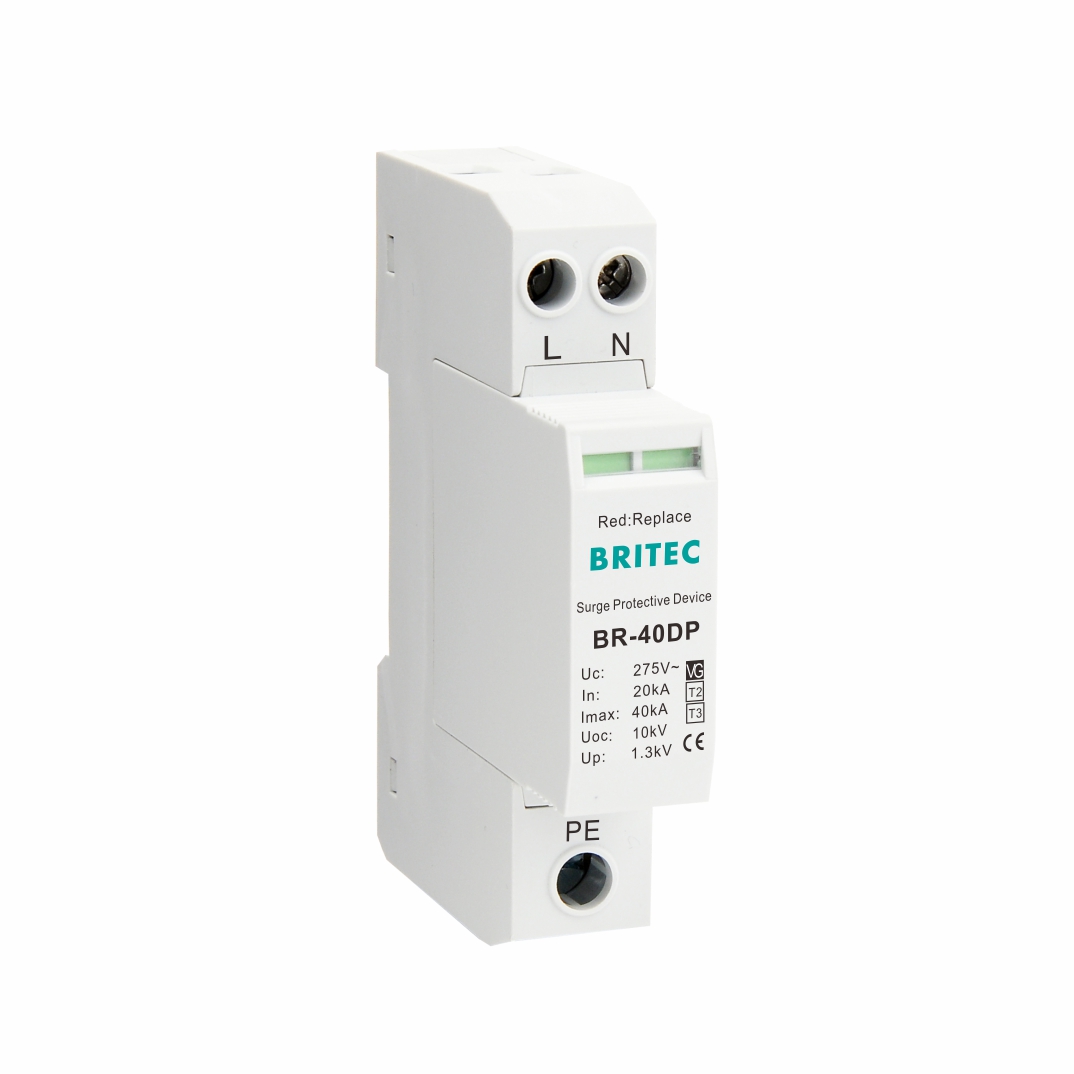

BR-40DP series surge arrester is installed between LPZ1 and LPZ2, it can provide type 3 protection for equipment which installed within 5 meters from these devices.
Application:
Protect commercial and industrial installations
Protect commercial and industrial installations in their secondary distribution boards
Used for small commercial or residential installations.
Protection of terminal devices, sensitive electronic equipment, telecom centers, automatic control centers, intelligent buildings, industrial enterprises, and medical institutes.
Installation:
Suitable as the final stage of protection in panels with Type 2 protection devices installed upstream.
These SPDs should be installed as close as possible to the equipment being protected.
Installed at a minimum conductor length of 10 meters (30 feet) from the electrical service panel to the point of utilization, for example cord connected, direct plug-in, receptacle type SPDs installed at the utilization equipment being protected. The distance (10 meters) is exclusive of the conductors provided with or used to attach SPDs.
