Product characteristics:
| Specification | BR-40VG 150 4P | BR-40VG 275 4P | BR-40VG 320 4P | BR-40VG 385 4P | BR-40VG 440 4P | |
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 | |
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | Class II | |
| Max. continuous operating a.c. voltage | Uc | 150V | 275V | 320V | 385V | 440V |
| Nominal discharge current (8/20μs) | In | 20kA | 20kA | 20kA | 20kA | 20kA |
| Max. discharge current (8/20μs) | Imax | 40kA | 40kA | 40kA | 40kA | 40kA |
| Voltage protection level | Up | ≤0.8kV | ≤1.3kV | ≤1.5kV | ≤1.8kV | ≤2.0kV |
| Voltage protection level 5kA | Up | ≤0.6kV | ≤1kV | ≤1.2kV | ≤1.4kV | ≤1.6kV |
| Max. backup fuse | 125A gG | 125A gG | 125A gG | 125A gG | 125A gG | |
| Short-circuit withstand capacity | Isccr | 25kA | 25kA | 25kA | 25kA | 25kA |
| Temporary overvoltage TOV-withstand | UT | 175V/5sec. | 335V/5sec. | 350V/5sec. | 550V/5sec. | 580V/5sec. |
| Temporary overvoltage TOV-safe failure | UT | 250V/120min. | 440V/120min. | 550V/120min. | 660V/120min. | 770V/120min. |
| Response time | tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state/fault indication | green/red | green/red | green/red | green/red | green/red | |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||||
| Enclosure material | Thermoplastic UL94-V0 | |||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Order Code | B17506 | B17518 | B17530 | B17542 | B17554 | |
| Order Code (With remote signaling) | B17507 | B17519 | B17531 | B17543 | B17555 | |
Features:
Electric ratings: 230/400V, AC50/60Hz, 3-phase;
In: 20kA.

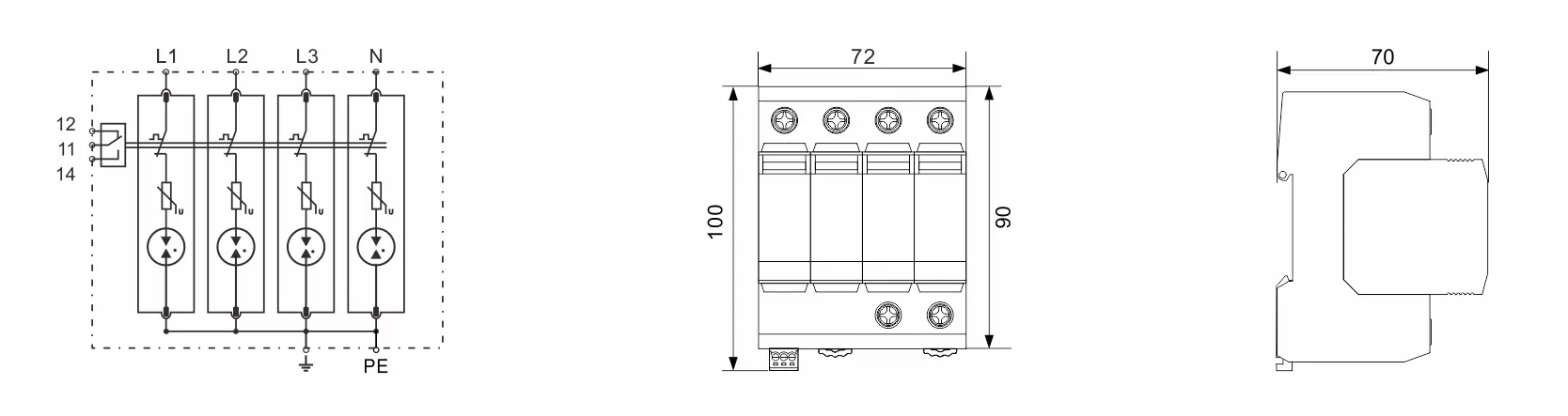

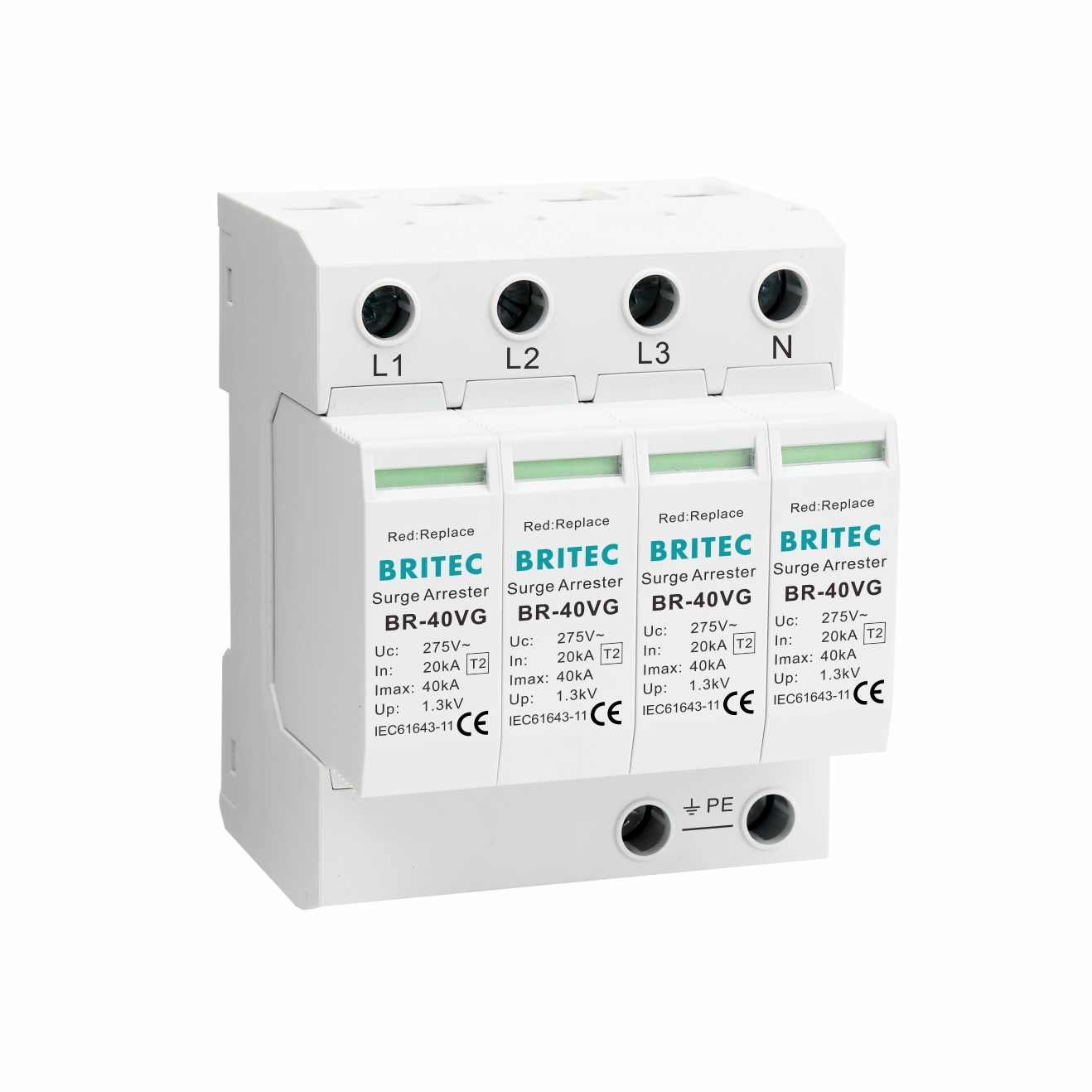

Surge protective device, plug.
Uc 150V / 275V / 320V / 385V / 440V can be achieved.
Standard: IEC/EN 61643-11
Hot melt flow double protection.
The visual window color said protector working state; green (normal), red (fault).
The reaction time of less than 25 ns.
Number of poles: 4;
Short circuit current: up to 40kA (8/20μs);
Remote signaling can select.
It is designed as module and 35mm din rail mounting.
Consisting of a base part and plug-in protection modules.
Application:
Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
In order to shunt and pressure to limit indirect lightning current or other instantaneous overvoltage.
