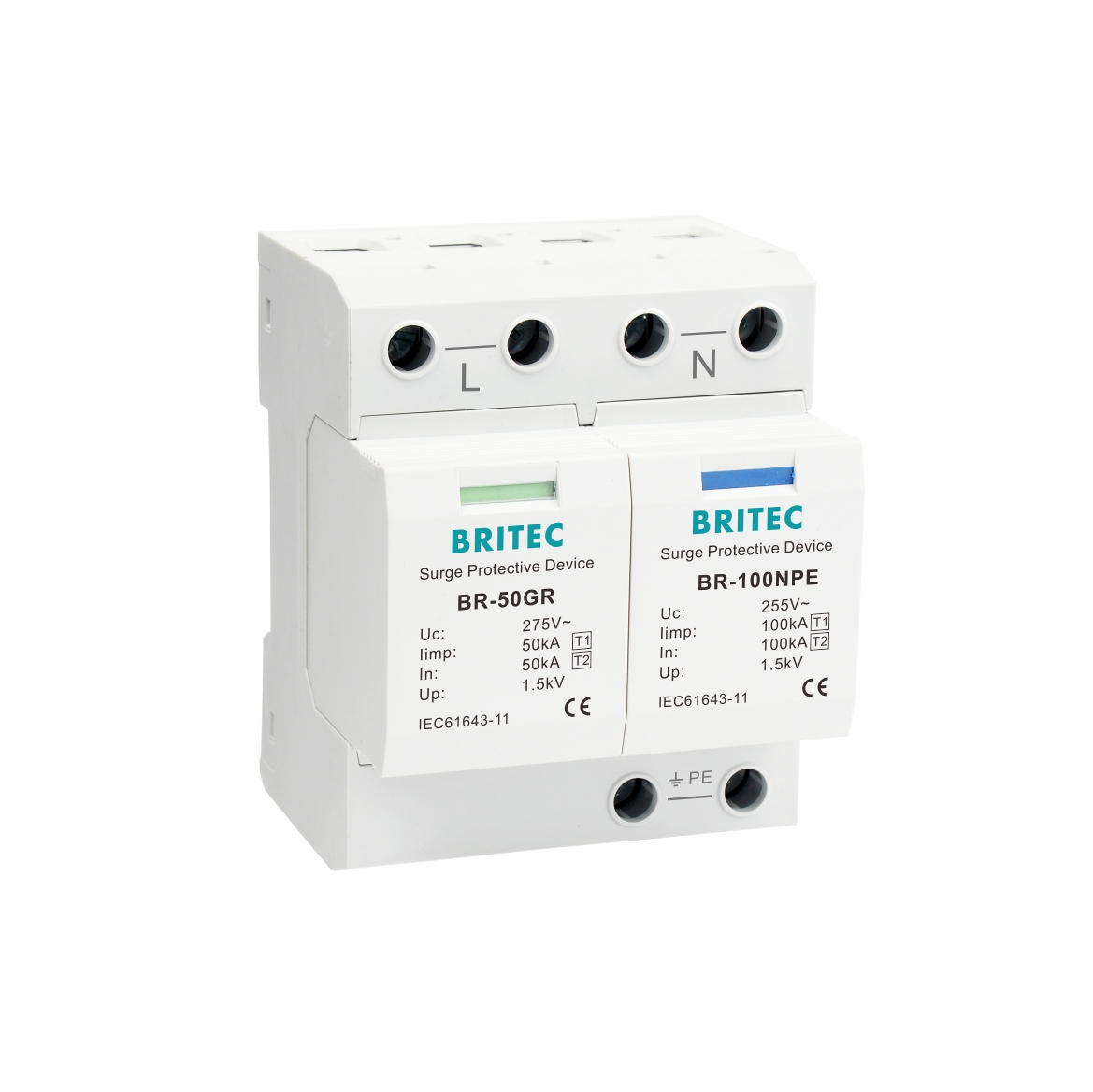

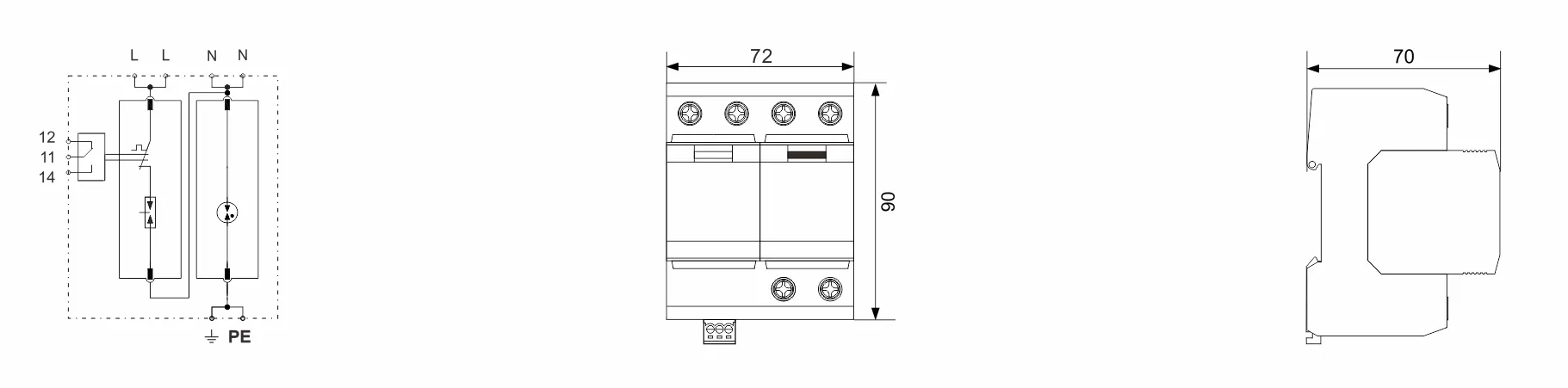

Product characteristics:
| Specification | BR-50GR 150 1+1 | BR-50GR 275 1+1 | BR-50GR 320 1+1 | |
| SPD classification according to EN61643-11 | Type 1 + Type 2 | Type 1 + Type 2 | Type 1 + Type 2 | |
| SPD classification according to IEC61643-11 | Class I + Class II | Class I + Class II | Class I + Class II | |
| Nominal operating voltage | Un | 120V(50/60Hz) | 230V(50/60Hz) | 250V(50/60Hz) |
| Max. continuous operating a.c. voltage | Uc (L-N/N-PE) | 150V/255V(50/60Hz) | 275V/255V(50/60Hz) | 320V/255V(50/60Hz) |
| Lightning impulse current (10/350μs) | Iimp (L-N/N-PE) | 50kA/100kA | 50kA/100kA | 50kA/100kA |
| Nominal discharge current (8/20μs) | In (L-N/N-PE) | 50kA/100kA | 50kA/100kA | 50kA/100kA |
| Max. discharge current (8/20μs) | Imax (L-N/N-PE) | 200kA/200kA | 200kA/200kA | 200kA/200kA |
| Quantity of electric charge (L-N, N-PE) | Q | 25As, 50As | 25As, 50As | 25As, 50As |
| Specific energy (L-N, N-PE) | W/R | 625kJ/Ω, 2500kJ/Ω | 625kJ/Ω, 2500kJ/Ω | 625kJ/Ω, 2500kJ/Ω |
| Voltage protection level | Up (L-N/N-PE) | ≤2.3kV/≤1.5kV | ≤2.3kV/≤1.5kV | ≤2.3kV/≤1.5kV |
| Short-circuit current rating a.c. | Isccr (L-N/N-PE) | 25kA rms/100A rms | 25kA rms/100A rms | 25kA rms/100A rms |
| Max. backup fuse | 350A gG | 350A gG | 350A gG | |
| Temporary overvoltage TOV-withstand | UT (L-N) | 250V/120min. | 440V/120min. | 550V/120min. |
| Temporary overvoltage TOV-withstand | UT (N-PE) | 1200V/200ms | 1200V/200ms | 1200V/200ms |
| Response time | tA | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | |
| Order Code | B17168 | B18157 | B17194 | |
| Order Code (With remote signaling) | B17169 | B18158 | B17195 | |
Features:
Endurable, sustains multiple strikes.
LED status indication.
BR-50GR 1P+N is suitable for TT and TN-S system.
SPD indoor fixedly mounted, limiting voltage.
SPD has built-in disconnector, when SPD is invalid due to overheating or breakdown, the disconnector can automatically separate SPD from the network, meanwhile send an indication signal. If to be separated from network, the visible window will show red color.
Application:
Being total current arresters between the neutral and protective conductor in TT systems, the single-pole N-PE lightning current arresters of type BR-50GR NPE help to ensure fulfilling the requirements for protection of personnel and equipment in “1+1” circuits.
The BR-50GR NPE coordinated NPE lightning current arresters hold a special position among total current arresters. Due to their low voltage protection level, they can be directly coordinated with N-PE surge arresters of the BR-50GR surge arresters without additional decoupling coil.
BR-50GR NPE devices are suitable for connecting conductors and busbars, allowing comfortable wiring with other DIN rail mounted terminals.
Widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.
Installation and note:
Usually installed in the low-voltage main distribution cabinet of the building incoming line.
Lightning protection grounding should meet the lightning protection specifications; the grounding wire should be as short as possible.
