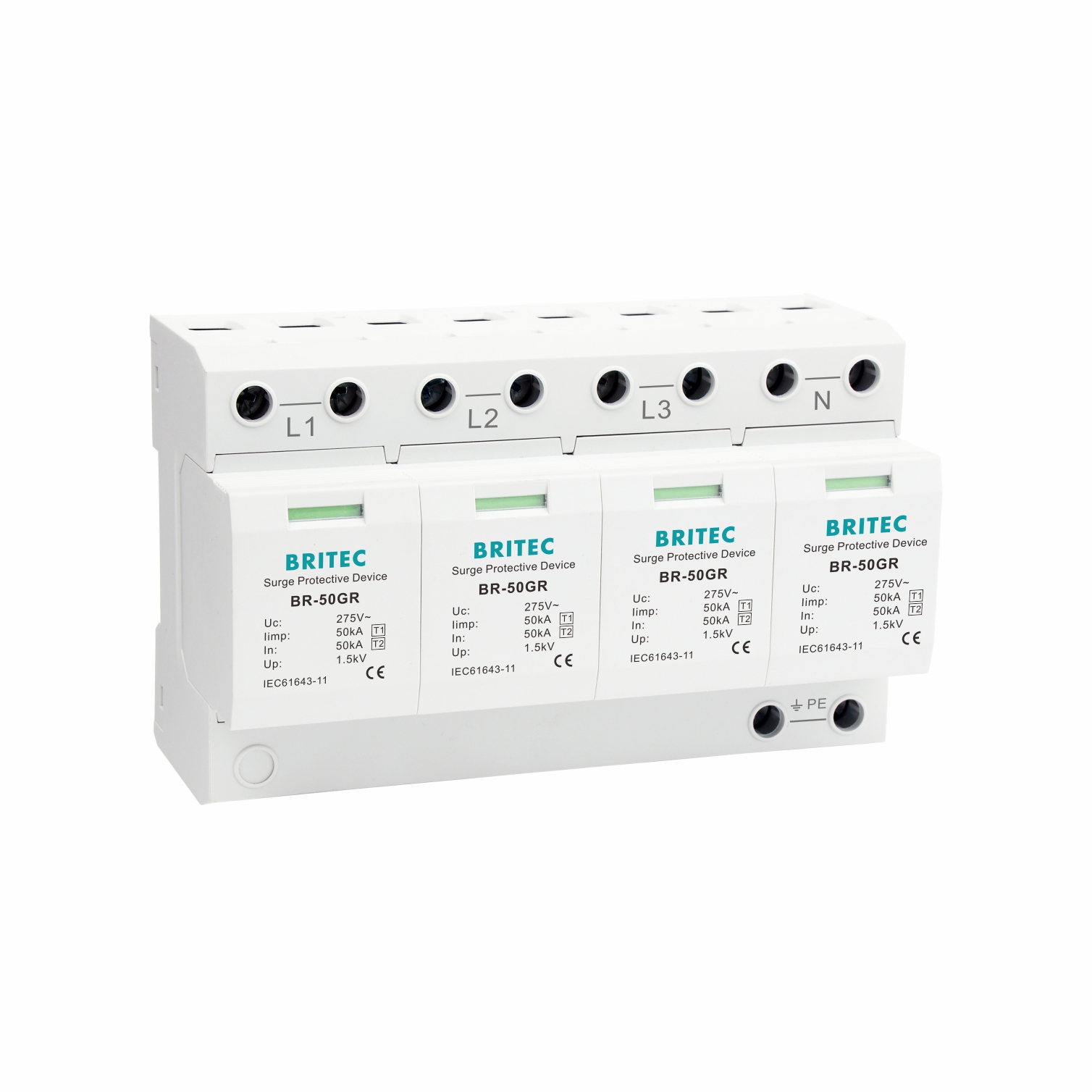

Product characteristics:
| Specification | BR-50GR 150 4P | BR-50GR 275 4P | BR-50GR 350 4P | |
| SPD classification according to EN61643-11 | Type 1 + Type 2 | Type 1 + Type 2 | Type 1 + Type 2 | |
| SPD classification according to IEC61643-11 | Class I + Class II | Class I + Class II | Class I + Class II | |
| Nominal operating voltage | Un | 120V/240V(50/60Hz) | 230V/400V(50/60Hz) | 250V/440V(50/60Hz) |
| Max. continuous operating a.c. voltage | Uc | 150V(50/60Hz) | 275V(50/60Hz) | 350V(50/60Hz) |
| Lightning impulse current (10/350μs) | Iimp | 50kA | 50kA | 50kA |
| Nominal discharge current (8/20μs) | In | 50kA | 50kA | 50kA |
| Max. discharge current (8/20μs) | Imax | 160kA | 160kA | 160kA |
| Quantity of electric charge | Q | 25As | 25As | 25As |
| Specific energy | W/R | 625kJ/Ω | 625kJ/Ω | 625kJ/Ω |
| Voltage protection level | Up | ≤1.5kV | ≤1.5kV | ≤1.5kV |
| Short-circuit current rating a.c. | Isccr | 25kA rms | 25kA rms | 25kA rms |
| Max. backup fuse | 350A gG | 350A gG | 350A gG | |
| Temporary overvoltage TOV-withstand | UT | 230V/120min. | 440V/120min. | 580V/120min. |
| Response time | tA | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | |
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | |
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermoplastic UL94-V0 | |||
| Degree of protection | IP20 | IP20 | IP20 | |
| Order Code | B17158 | B18147 | B17184 | |
| Order Code (With remote signaling) | B17159 | B18148 | B17185 | |
Features:
• Impact discharge current of per pole reaches 50kA(10/350).
• Fast response time less than <100ns.
• Max. backup Fuse: 315A gG.
• Status indicator.
• Fault signal contact.
• 35mm Din rail mountable.
• BR-50GR 4P is suitable for TN-S system.

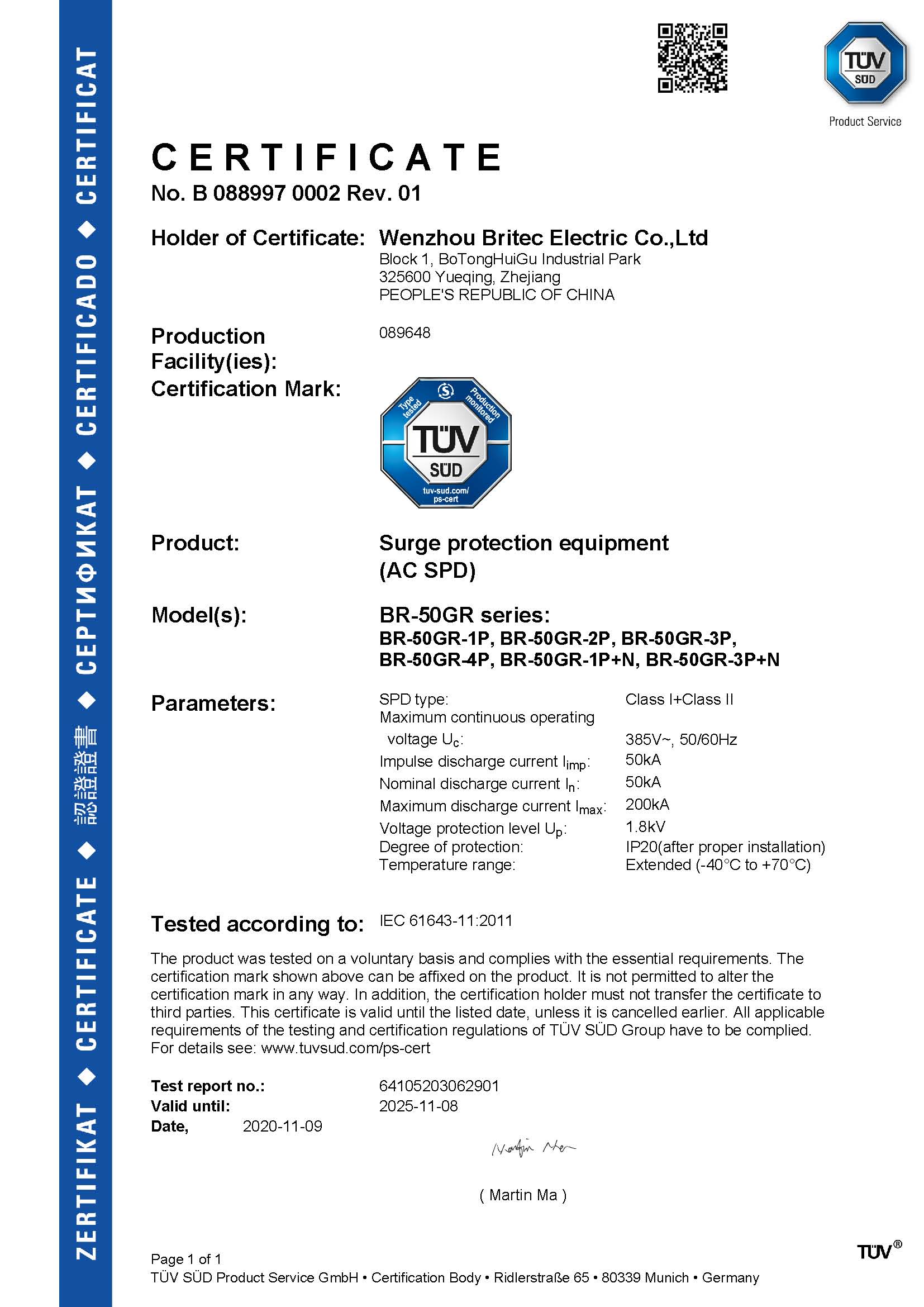

• It has passed the class I lightning protection test conducted by national professional testing institutions.
• It is the first-level lightning protection product of ac power equipment.
Application:
For electrical installations.
Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).
Can handle lightning currents and protect sensitive electronic equipment.
Application-optimized and prewired combined lightning current.
Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).
Installation:

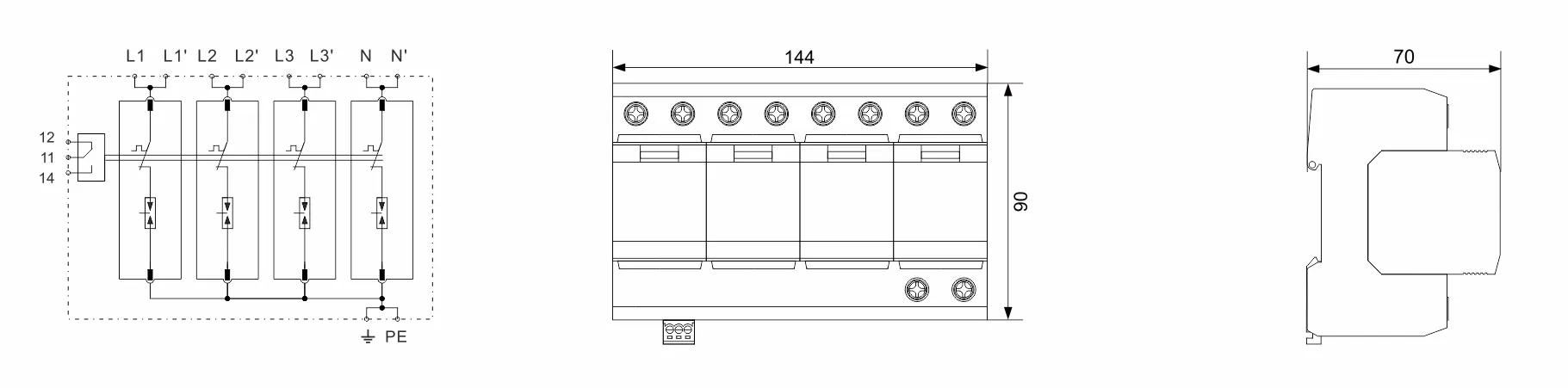

During installation, please connect according to the installation schematic diagram.
Power must be cut off during installation, live operation is strictly prohibited, and connecting wires must meet the requirements.
