Product characteristics:
| Specification | BR-80 150 4P | BR-80 275 4P | BR-80 320 4P | BR-80 385 4P | ||
| SPD classification according to EN61643-11 | Type 2 | Type 2 | Type 2 | Type 2 | ||
| SPD classification according to IEC61643-11 | Class II | Class II | Class II | Class II | ||
| Max. continuous operating a.c. voltage | Uc | 150V | 275V | 320V | 385V | |
| Nominal discharge current (8/20μs) | In | 40kA | 40kA | 40kA | 40kA | |
| Max. discharge current (8/20μs) | Imax | 80kA | 80kA | 80kA | 80kA | |
| Voltage protection level | Up | ≤1.0kV | ≤1.7kV | ≤2.0kV | ≤2.3kV | |
| Voltage protection level 5kA | Up | ≤0.5kV | ≤0.9kV | ≤1.1kV | ≤1.3kV | |
| Max. backup fuse | 200A gG | 200A gG | 200A gG | 200A gG | ||
| Short-circuit withstand capacity | Isccr | 25kA | 25kA | 25kA | 25kA | |
| Temporary overvoltage TOV-withstand | UT | 175V/5sec. | 335V/5sec. | 350V/5sec. | 550V/5sec. | |
| Temporary overvoltage TOV-safe failure | UT | 250V/120min. | 440V/120min. | 550V/120min. | 660V/120min. | |
| Response time | tA | ≤25ns | ≤25ns | ≤25ns | ≤25ns | |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ | |
| Operating state/fault indication | green/red | green/red | green/red | green/red | ||
| Cross-section area (Min.) | 4mm² | 4mm² | 4mm² | 4mm² | ||
| Cross-section area (Max.) | 35mm² | 35mm² | 35mm² | 35mm² | ||
| For mounting on | 35mm Din rail | |||||
| Enclosure material | Thermoplastic UL94-V0 | |||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | ||
| Order Code | B18260 | B18262 | B18264 | B18266 | ||
| Order Code (With remote signaling) | B18261 | B18263 | B18265 | B18267 | ||
Features:
Visual status display
Labeled connections
Type 2 (class II/C) for main boards, distribution boards and consumer units.
Available with and without remote signalling contacts.
1 pole up to 4 poles protected.

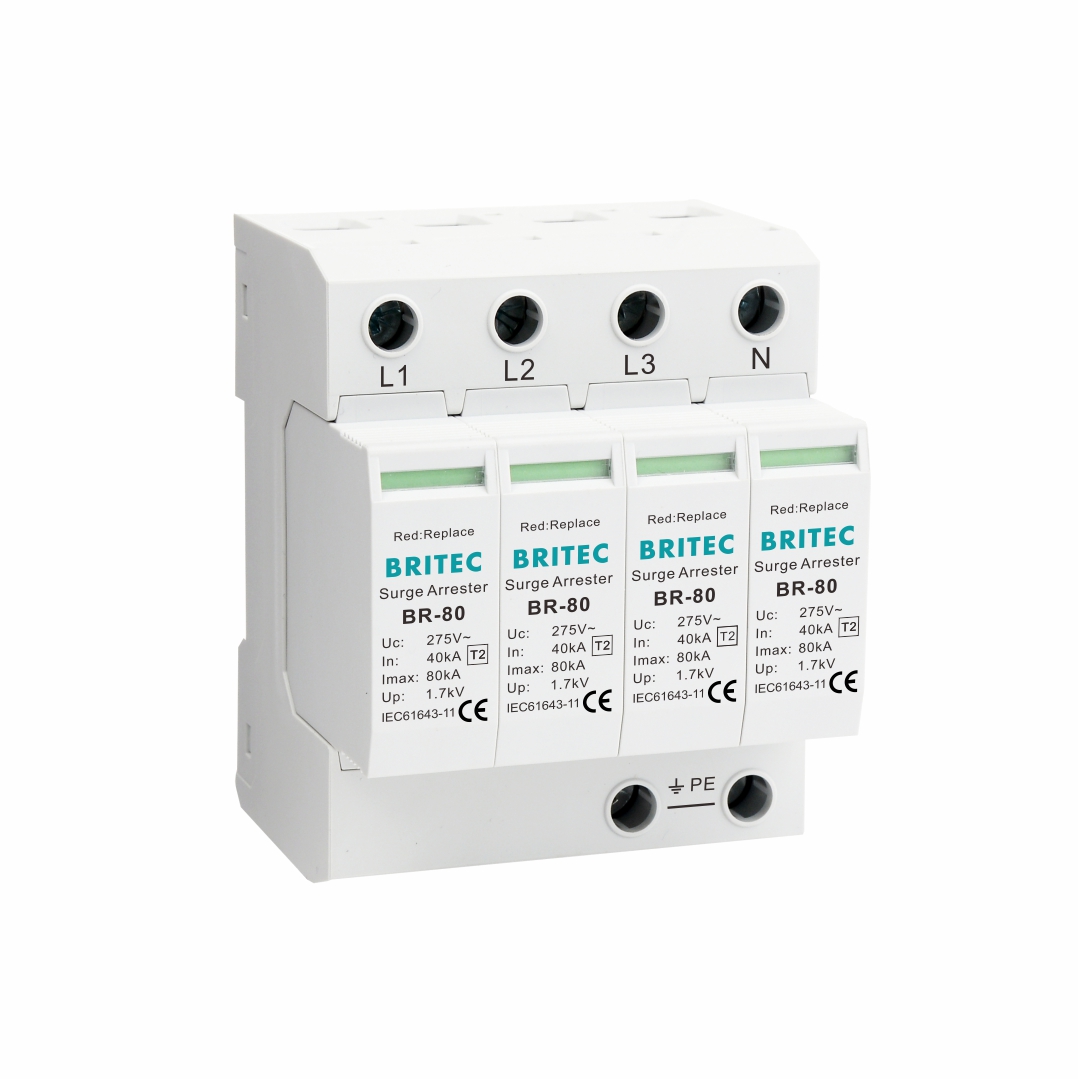

BR-80 consists of a high performance varistor block with thermal disconnection device. The plug-in module/base design facilitates replacement of a failed module in situ without the need to remove system wiring.
Solutions to meet IEC 61643-1 and EN 61643-11
Application:
Distribution switch board located downstream from a Type 1 Lightning Current Arrester.
Protecting them from direct and indirect lightning impulse and other transient overvoltage.
Protects low-voltage systems against overvoltage triggered by lightning strikes or grid switching operations.
Ideal for industrial applications.
At the origin of the electrical installation in the main switchboard, in areas where electromagnetic fields caused by lightning currents are dominant (excluding a direct strike).
Suitable for TN-S systems.
Preventing the spread of medium overvoltage (Up) in the electrical installation and protecting equipment that is connected to it.
