Product characteristics:
| Specification | BR-BNC | |
| Test standards | IEC 61643-21 | |
| Norminal voltage | Un | 5V |
| Max. continuous operating d.c. voltage | Uc | 6V |
| Max. continuous operating a.c. voltage | Uc | 4V |
| Nominal current | IL | 0.5A |
| C2 Norminal discharge current (8/20μs) line-shield | In | 5kA |
| C2 Norminal discharge current (8/20μs) shield-PG | In | 10kA |
| Voltage protection level [line-shield] | Up | ≤30V |
| Voltage protection level [shield-PG] | Up | ≤500V |
| Response time [line-shield] | tA | ≤1ns |
| Response time [shield-PG] | tA | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ |
| Connection input/output | BNC socket | |
| Bandwidth | 10Mbps | |
| Insertion Loss | ≤0.3dB | |
| Impedience | 50Ω | |
| Enclosure material | aluminium alloy | |
| Degree of protection | IP20 | |
| Order Code | D9020 |
Features:
High discharge capacity.
Protection for all lines.
Quantity discount is available.
Perfect transmission performance.
Small size, Easy installation and replacement.
Residual voltage is low, excellent transmission performance.
Grounding point after a special process to avoid signal interference.
It can be used for single BNC terminal, F terminal and N terminal lightning protection.
Application:
Security engineering signal port.
Fire engineering signal port.
Test signal line.
Industrial control signal.
Field bus.
Control bus.
Field instruments.
BNC connector of monitoring system.
Lightning protection of other video line signal equipment.
Designed to protect coaxial lines.

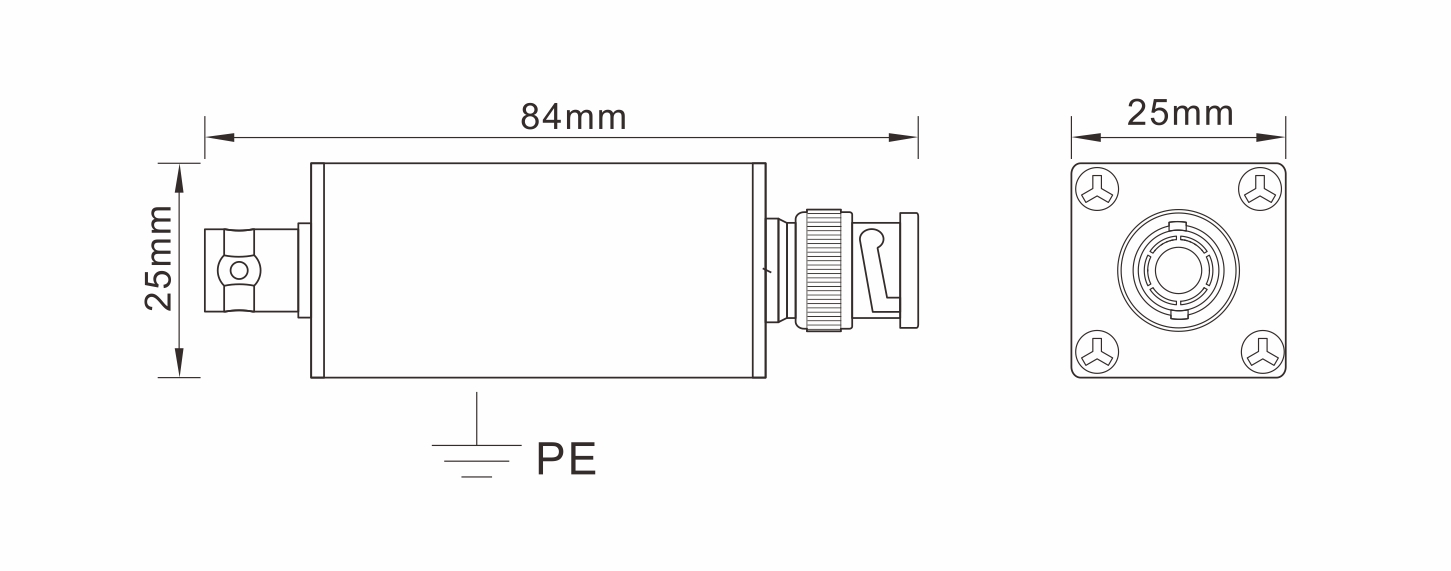

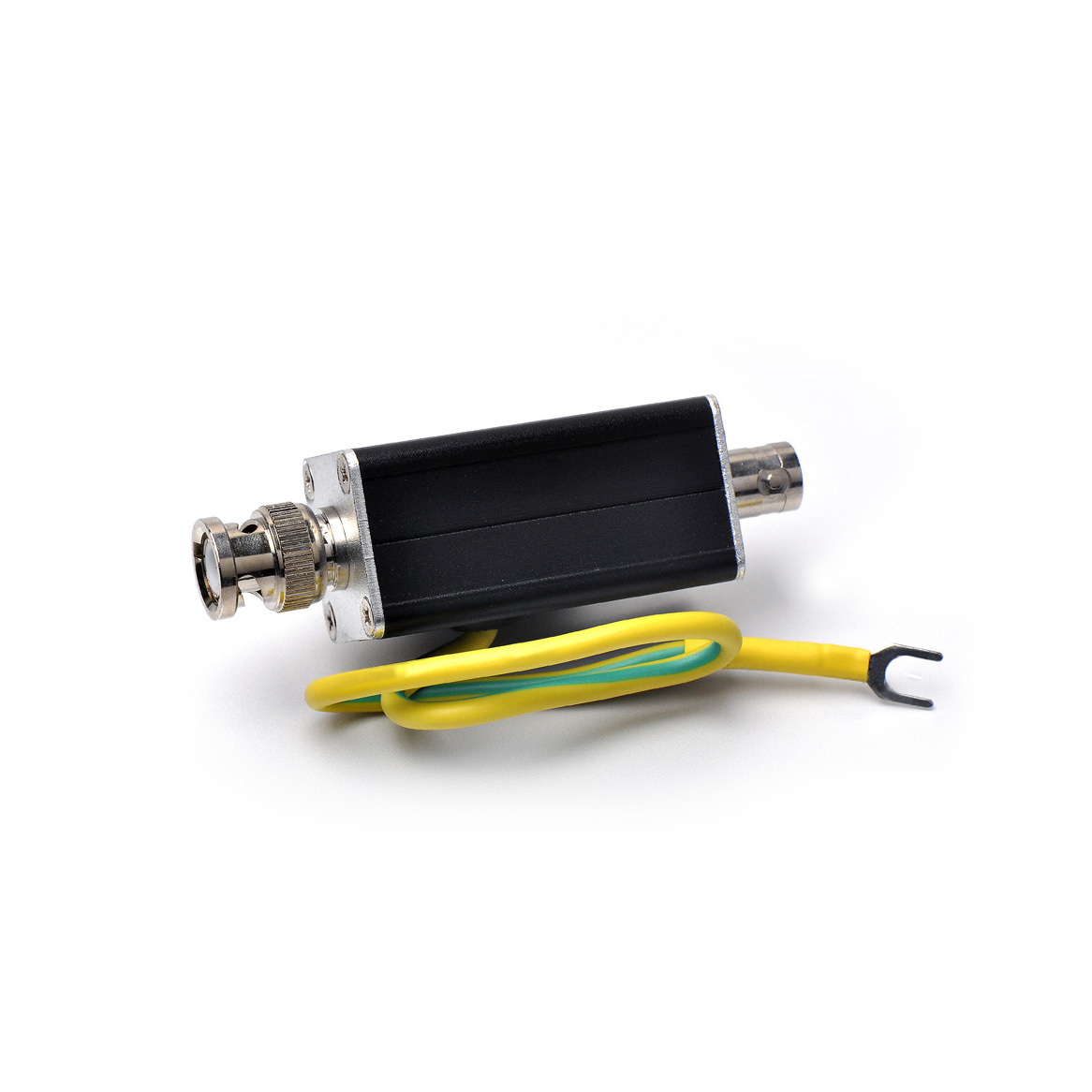

Compact SPD with BNC interface for protecting coaxial system.
