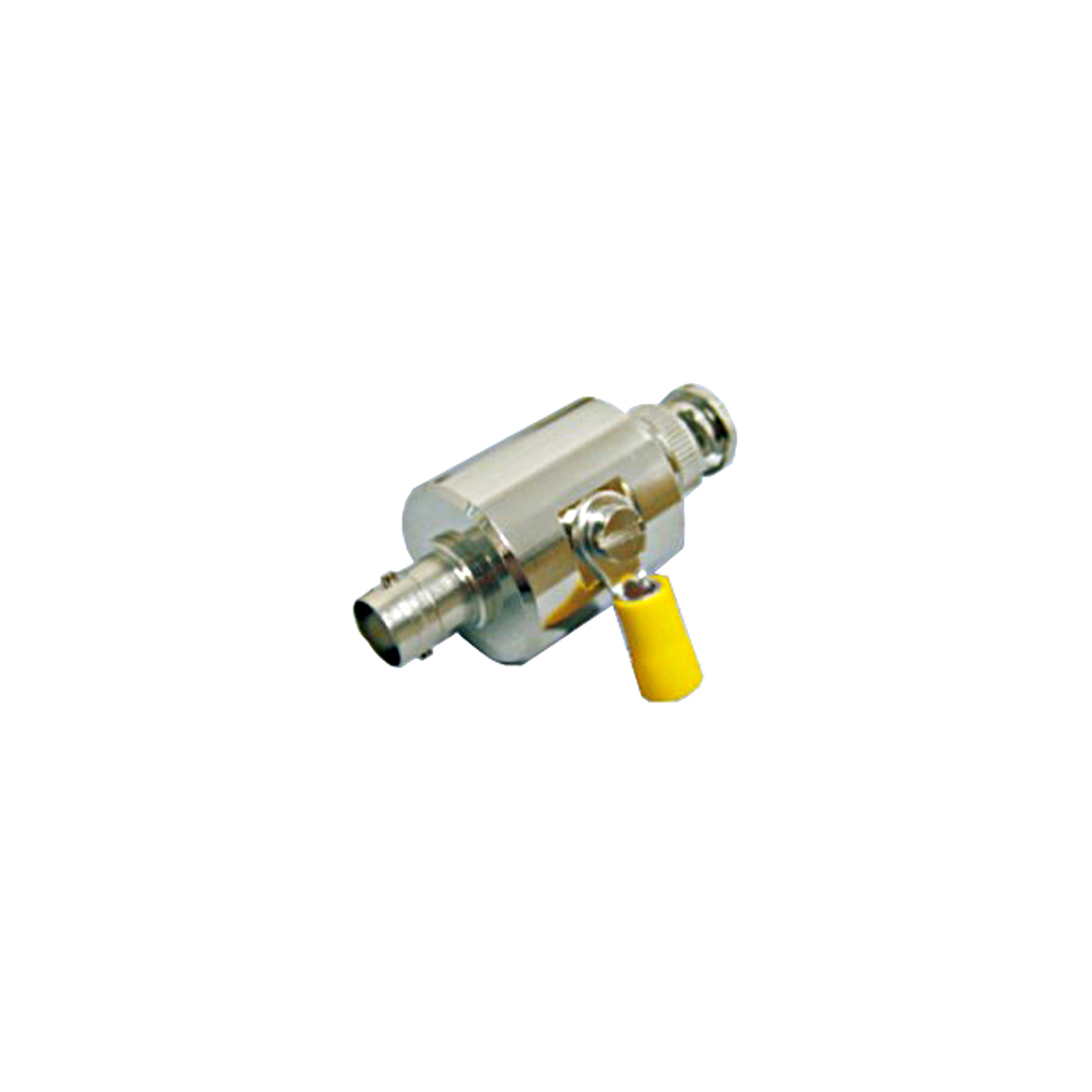

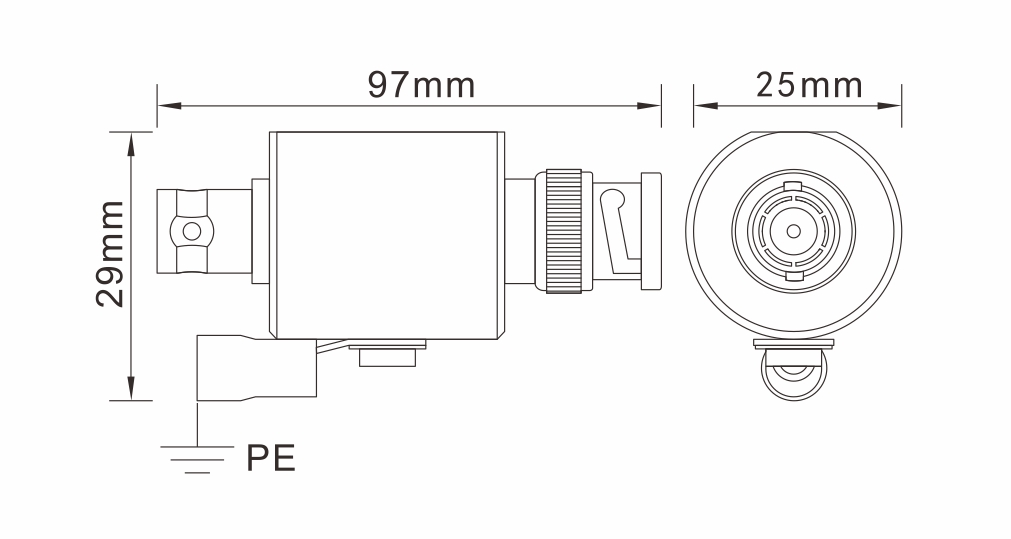

Product characteristics:
| Specification | BR-BNC-H | |
| Test standards | IEC 61643-21 | |
| Max. continuous operating d.c. voltage | Uc | 180V |
| Max. continuous operating a.c. voltage | Uc | 130V |
| Nominal current | IL | 20A |
| C2 Norminal discharge current (8/20μs) line-shield/PG | In | 10kA |
| Voltage protection level [line-shield/PG] | Up | ≤800V |
| Response time [line-shield/PG] | tA | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ |
| Connection input/output | BNC socket | |
| Bandwidth | 3Gbps | |
| Insertion Loss | ≤0.3dB | |
| Impedience | 50Ω | |
| Enclosure material | Steel | |
| Degree of protection | IP20 | |
| Order Code | D9022 |
Features:
Nominal current: 20A.
Short circuit current: up to 10kA (8/20μs).
Bandwidth: 3 Gbps.
Insertion loss: ≤0.3dB.
Designed according to IEC 61643-21 standard.
High Frequency and Low Insertion Loss.
High Reliability Protection from Excessive Voltages.
Application:
Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
It can be used for the lightning surge protection of monitoring system’s video line with BNC connector, BNC Matrix Connector, Optical Transmitter and Receiver BNC connector, Video Camera BNC connector.
The signal protection: low frequency signal protection, high-frequency signal protection etc.
It is suitable for lightning protection of wireless communication, such as Satellite Antenna/Microwave/CATV/Short Wave/Ultra Short Wave/ Mobile Communication Equipment etc.
