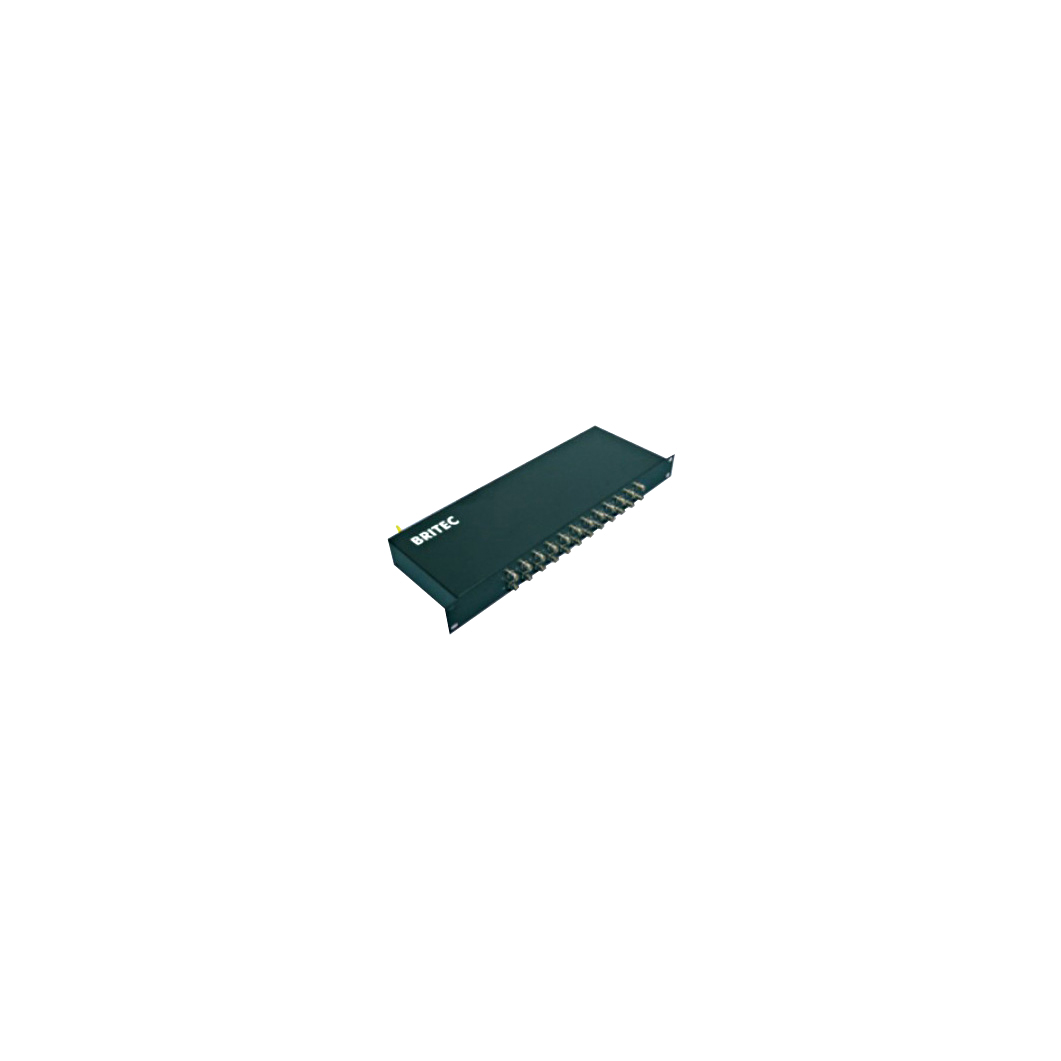

Product characteristics:
| Specification | BR-BNC-R | |
| Test standards | IEC 61643-21 | |
| Norminal voltage | Un | 5V |
| Max. continuous operating d.c. voltage | Uc | 6V |
| Max. continuous operating a.c. voltage | Uc | 4V |
| Nominal current | IL | 0.5A |
| C2 Norminal discharge current (8/20μs) line-shield | In | 5kA |
| C2 Norminal discharge current (8/20μs) shield-PG | In | 10kA |
| Voltage protection level [line-shield] | Up | ≤30V |
| Voltage protection level [shield-PG] | Up | ≤500V |
| Response time [line-shield] | tA | ≤1ns |
| Response time [shield-PG] | tA | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ |

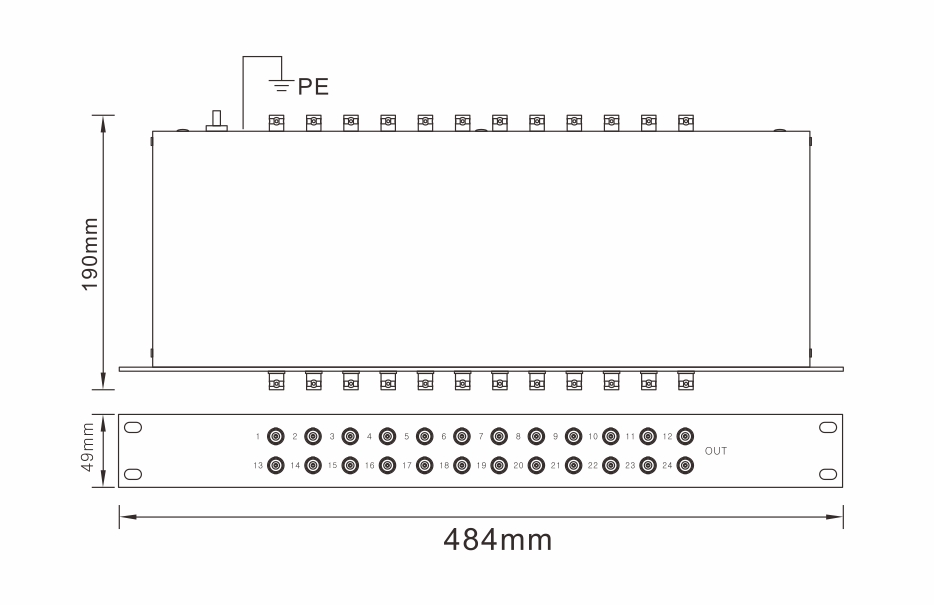

| Connection input/output | BNC 24 sockets | |
| Bandwidth | 10Mbps | |
| Insertion Loss | ≤0.3dB | |
| Impedience | 50Ω | |
| Enclosure material | aluminium alloy | |
| Degree of protection | IP20 | |
| Order Code | D9021 |
Features:
Multi-port mode.
Nominal voltage: 5v.
Nominal current: 0.5A.
Bandwidth: 10 Mbps.
Connection input / output: BNC 24 sockets.
For installation in conformity with the lightning protection.
Application:
For electromagnetic interference protection of sensitive video equipment.
Apply to other uses BNC connectors for the signal transmitted through the coaxial cable protect against a variety of video transmission equipment from the signal transmission line inductive lightning surge voltage, over-voltage and electrostatic discharge caused by damage.
Monitor system (such as video matrix switchers, cameras, video surveillance equipment, video distributor, etc).
Video line surge protection.
Protecting Closed Circuit Television (CCTV), video, camera, and surveillance systems to avoid being influenced by leakage pickups.
Lightning protection of analog video signal with BNC connector.
Installation and maintenance:
Integrated multi-stage surge protection, which can be easily connected in series access line, pay attention when installing the cables out of the direction of the alignment should be separated to avoid the emergence of a secondary coupling surge.
