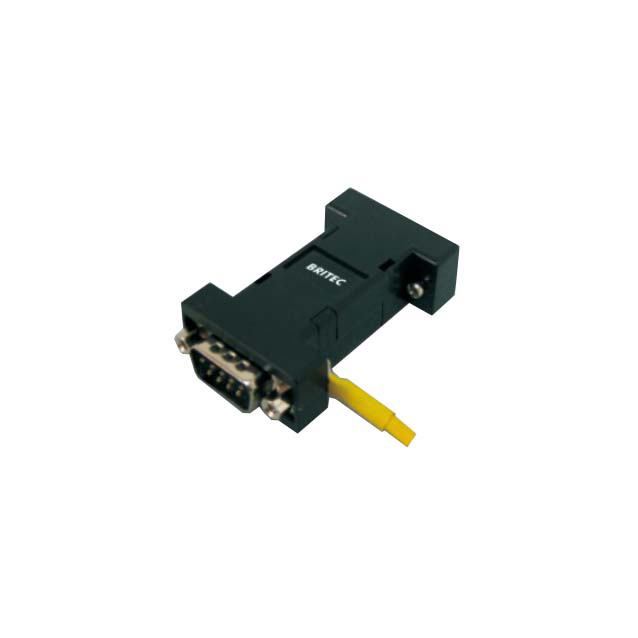

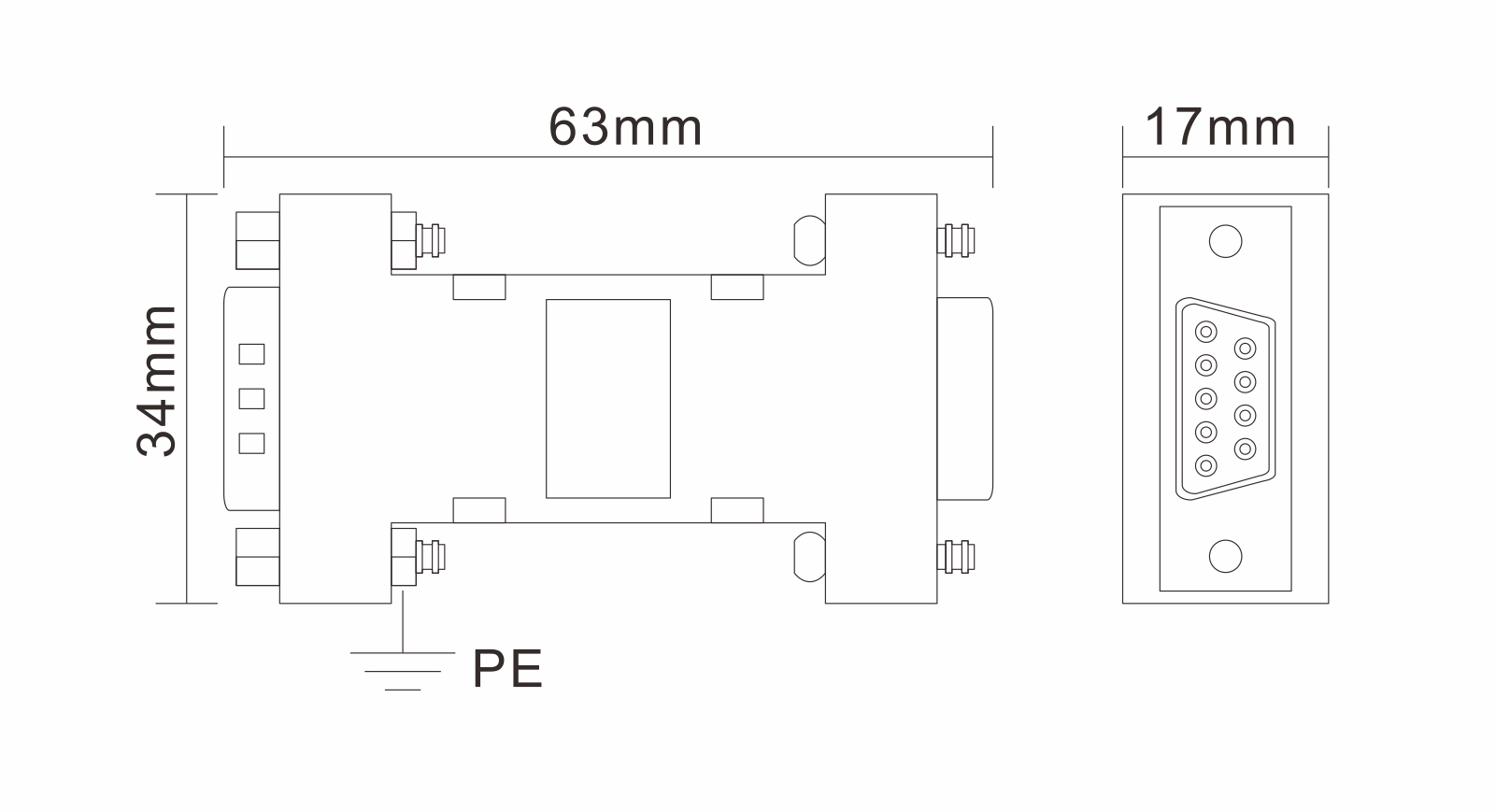

Product characteristics:
| Specification | BR-DB9 | |
| Test standards | IEC 61643-21 | |
| Nominal voltage | Un | 12V |
| Max. continuous operating d.c. voltage | Uc | 15V |
| C2 Norminal discharge current (8/20μs) line-SG | In | 5kA |
| C2 Norminal discharge current (8/20μs) SG-PG | In | 10kA |
| Voltage protection level [line-SG] | Up | ≤40V |
| Voltage protection level [SG-PG] | Up | ≤500V |
| Response time [line-SG] | tA | ≤1ns |
| Response time [SG-PG] | tA | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ |
| Connection input/output | D-Sub 9 plug/socket | |
| Pinning | line:3/8, SG:5, PG:1 | |
| Bandwidth | 10Mbps | |
| Insertion Loss | ≤0.3dB | |
| Enclosure material | aluminium alloy | |
| Degree of protection | IP20 | |
| Order code | D9070 |
Features:
Operating voltage: 12V.
IEC 61643-21 product standard.
Enclosure material: Aluminium alloy.
Max. continuous operating d.c. voltage: 15v.
For Use With : D-Sub 9 plug / socket.
9 pin full protected for surge arrester.
D-Sub surge protector are designed to protect sensitive equipment linked to data lines equipped with D-sub connectors.
Application:
Protect the motherboard of computer.
Communication signals specifically for the protection of networks.
The d-sub connector can be used in a wide variety of electronic products.
DB connector is used for token-ring and controller LAN (CAN).
Widely used in computer video output, game controller port, multi-frequency analog signal and AES digital audio recording studio.
Installation and Maintenance:
DB series serial communication system surge protector can be installed on LPZ1-LPZ2 interface and higher interface that provides the full range of lightning protection for the D-SUB port for data transfer.
The ground path should be as short as possible, no longer than 1.5 meters.
