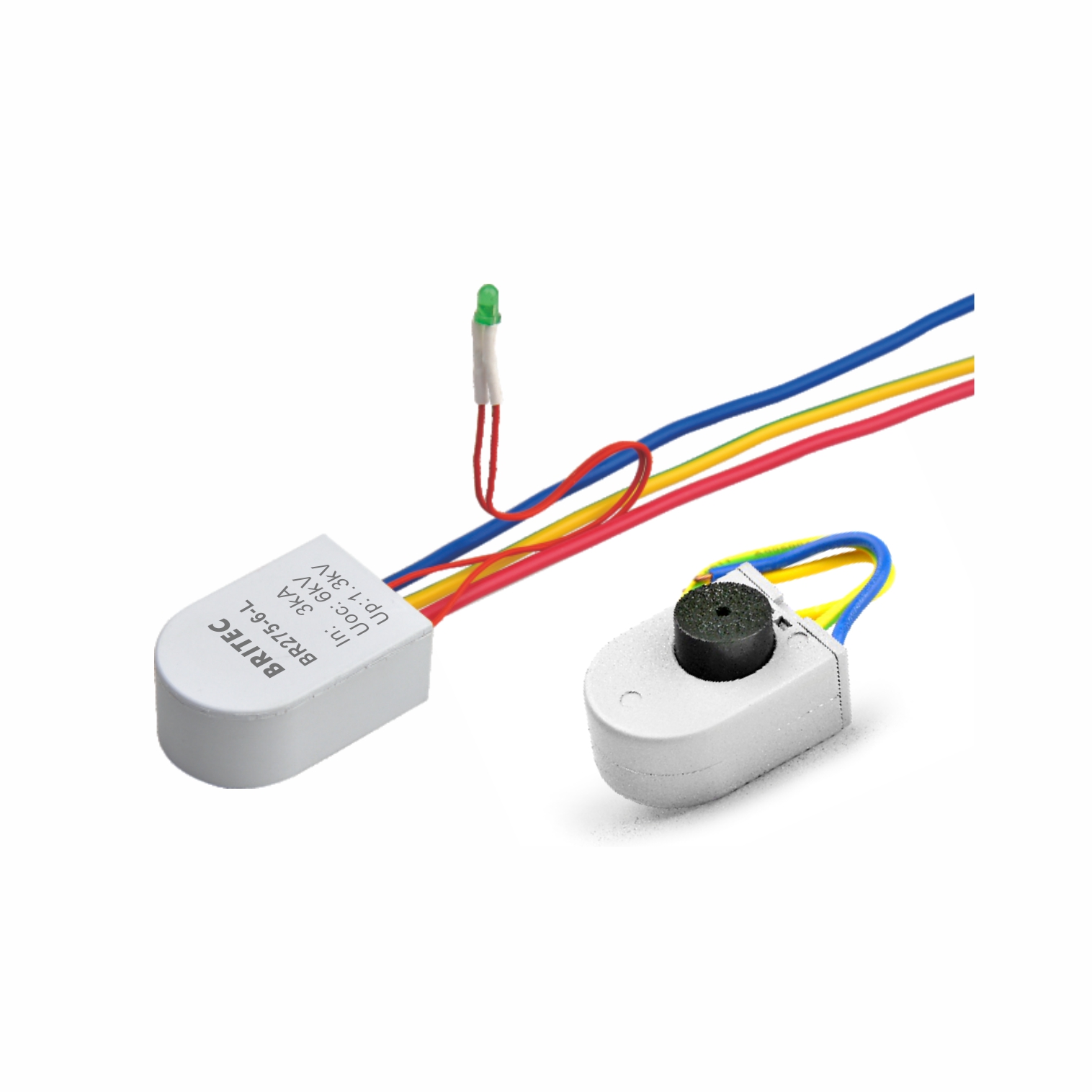

BR275-6-L 6KA 6kV LED Surge Arrester

Get A Quote
Description

Product characteristics:

BR275-6-L BR275-6-B
SPD classification according to EN61643-11 Type 3 Type 3
SPD classification according to IEC61643-11 Class III Class III
Nominal a.c. voltage Un 230V 230V
Max. continuous operating a.c. voltage Uc 275V 275V
Max. continuous operating d.c. voltage Uc 300V 300V
Nominal discharge current (8/20μs) In 3kA 3kA
Combined impulse Uoc 6kV 6kV
Voltage protection level Up ≤1.3kV ≤1.3kV
Response time tA ≤25ns ≤25ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃
Operating state / fault indication LED BEEP
For mounting on 35mm Din rail 35mm Din rail
Enclosure material Thermoplastic UL94-V0 Thermoplastic UL94-V0
Degree of protection IP20 IP20
Order code B8355 B8357

Features:

Nominal AC Voltage, 230V.

Uc: 275V AC.

6kA Max discharge current (8/20us).

Protection class: Class III.

Build-in LED or BEEP status indication.

Rated to IP20.

Type 3 SPD according to IEC61643-11 and EN61643-11.

Features a thermally protected transient over-voltage circuit.

High Temperature Enclosure: Up to 80°C max. Surface Temperature Rating.

Application:

Designed for installation into electrical installation systems, e.g.: cable ducts and flush-mounted sockets as an additional protection.

For use in all installation systems of terminal equipment.

For all installation systems of 230 V terminal equipment.

For transient current protection.
