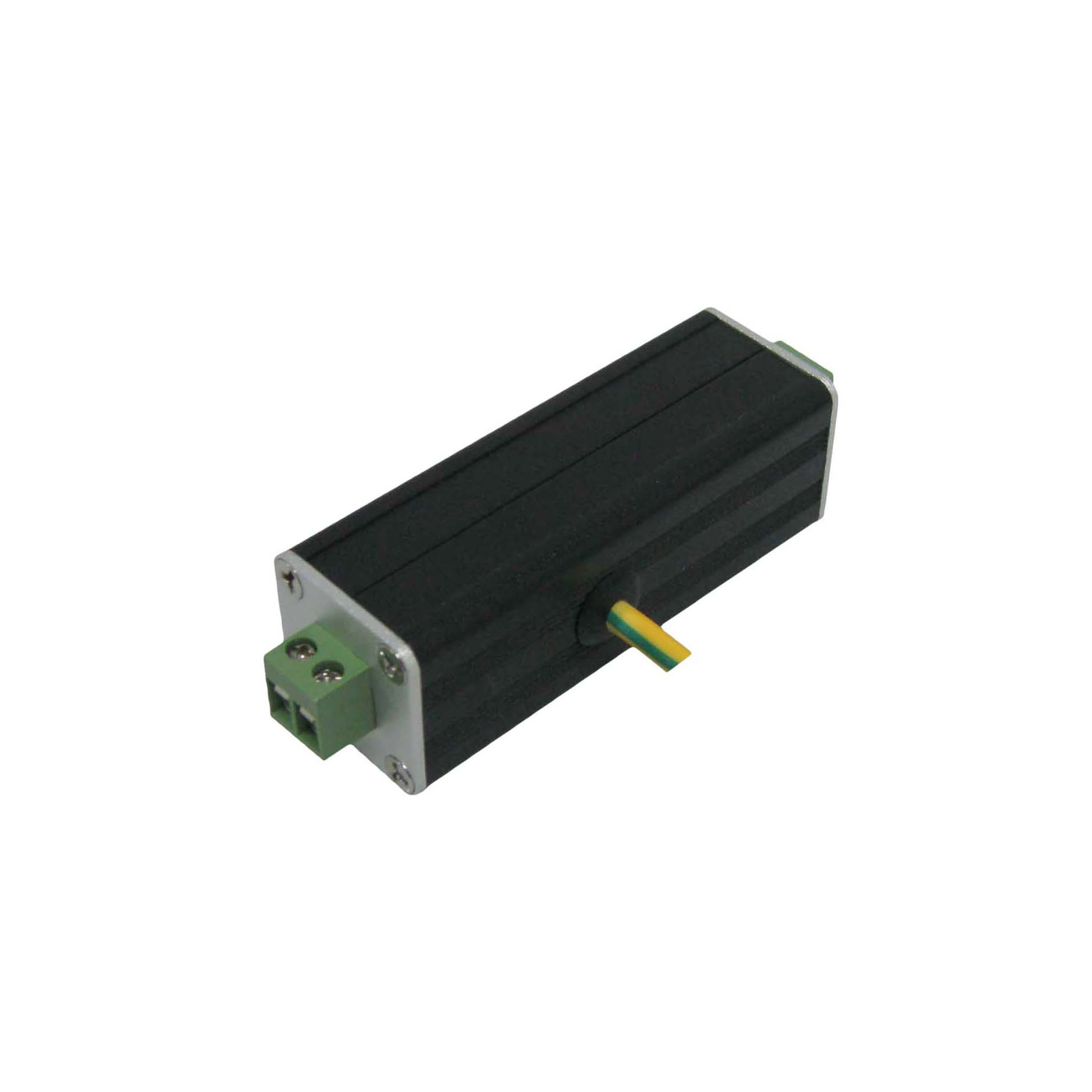

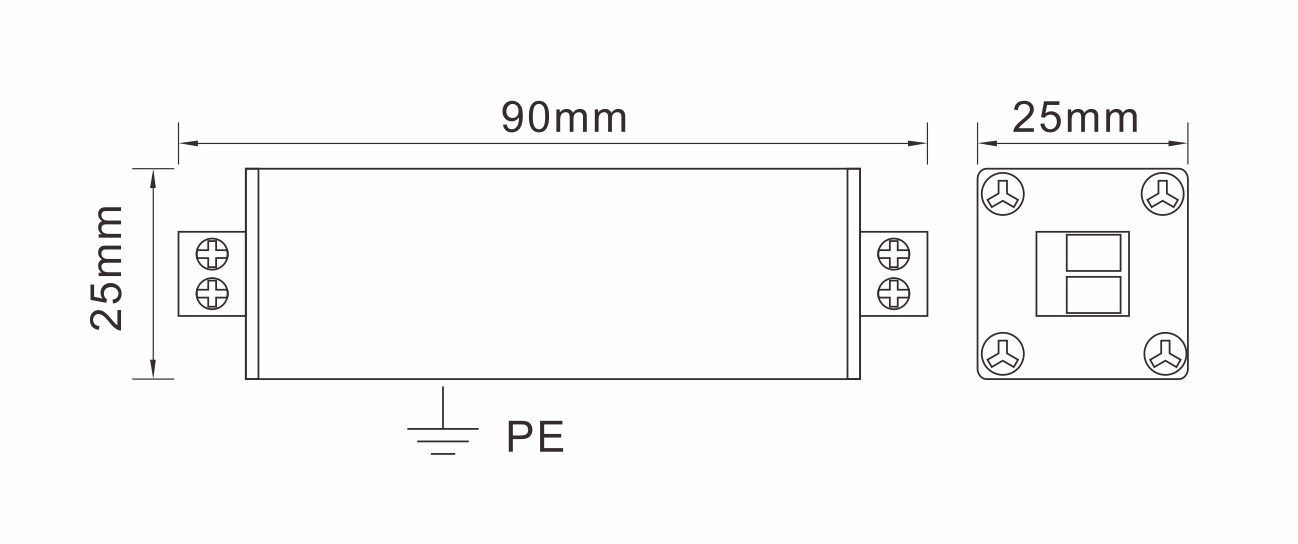

Product characteristics:
| Specification | BRGI-2L-6 | BRGI-2L-12 | BRGI-2L-24 | BRGI-2L-48 | BRGI-2L-60 | BRGI-2L-180 | |
| Test standards | IEC 61643-21 | ||||||
| Norminal voltage | Un | 6V | 12V | 24V | 48V | 60V | 180V |
| Max. continuous operating d.c. voltage | Uc | 8V | 15V | 29V | 56V | 70V | 180V |
| Max. continuous operating a.c. voltage | Uc | 5V | 11V | 20V | 40V | 49V | 130V |
| Nominal current | IL | 0.5A | 0.5A | 0.5A | 0.5A | 0.5A | 0.5A |
| C2 Norminal discharge current (8/20μs) per line | In | 5kA | 5kA | 5kA | 5kA | 5kA | 5kA |
| Voltage protection level [line-line] | Up | ≤30V | ≤40V | ≤60V | ≤100V | ≤130V | ≤320V |
| Voltage protection level [line-PG] | Up | ≤600V | ≤600V | ≤600V | ≤600V | ≤600V | ≤600V |
| Response time [line-line] | tA | ≤1ns | ≤1ns | ≤1ns | ≤1ns | ≤1ns | ≤1ns |
| Response time [line-PG] | tA | ≤100ns | ≤100ns | ≤100ns | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ | |||||
| Connection input/output | Terminal Block | ||||||
| Bandwidth | 10Mbps | 10Mbps | 10Mbps | 10Mbps | 10Mbps | 10Mbps | |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | |
| Enclosure material | aluminium alloy | ||||||
| Degree of protection | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | |
| Order Code 1 port | D9001 | D9002 | D9003 | D9004 | D9005 | D9006 | |
| Order Code 24 ports | D9007 | D9008 | D9009 | D9010 | D9011 | D9012 | |
Features:
10 Mbps data rate.
Conform to IEC61643-21.
5kA surge discharge current.
Compatible with 6V, 12V, 24V, 48V, 60V and 180V nominal voltage.
Grounding is accomplished via a ground wire.
It is easy to replace the product during maintainace.
Application:
Protect expensive equipment against surges and transients entering a building on exposed transmission lines.
Protect electrical devices from voltage spikes.
Protect high-speed communication network from lightning over-voltage, transient over-voltage and static discharge.
