Product characteristics:

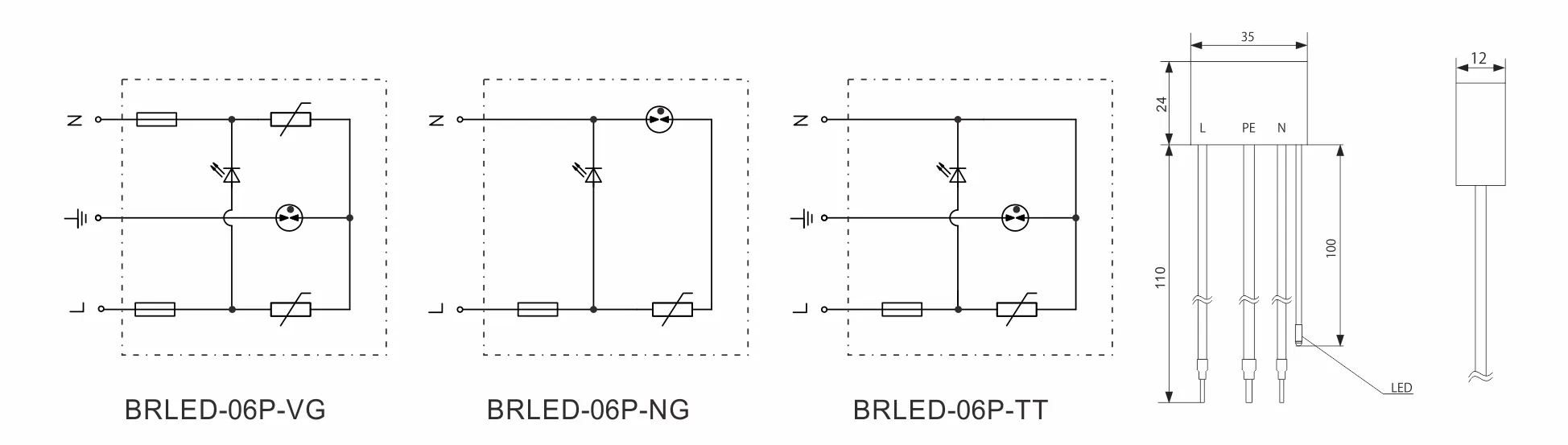

| Specification | BRLED-06P-VG | BRLED-06P-NG | BRLED-06P-TT | |
| SPD classification according to EN61643-11 | Type 2+Type 3 | Type 2+Type 3 | Type 2+Type 3 | |
| SPD classification according to IEC61643-11 | Class II+Class III | Class II+Class III | Class II+Class III | |
| Nominal a.c. voltage | Un | 230V | 230V | 230V |
| Max. continuous operating a.c. voltage | Uc | 275V | 275V | 275V |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz | |
| Norminal discharge current (8/20μs) | In | 3kA | 3kA | 3kA |
| Maximum discharge current (8/20μs) | Imax | 6kA | 6kA | 6kA |
| Combined impulse | Uoc | 6kV | 6kV | 6kV |
| Voltage protection level | Up | ≤1.3kV | ≤1.3kV | ≤1.3kV |
| Response timeA | tA | ≤100ns | ≤100ns | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | Green light on: OK; Green light off: Replace | |||
| Enclosure materail | Thermoplastic UL94-V0 | |||
| Degree of protection | IP65 | IP65 | IP65 | |
| Order code | B6021 | B6022 | B6023 | |
Features:

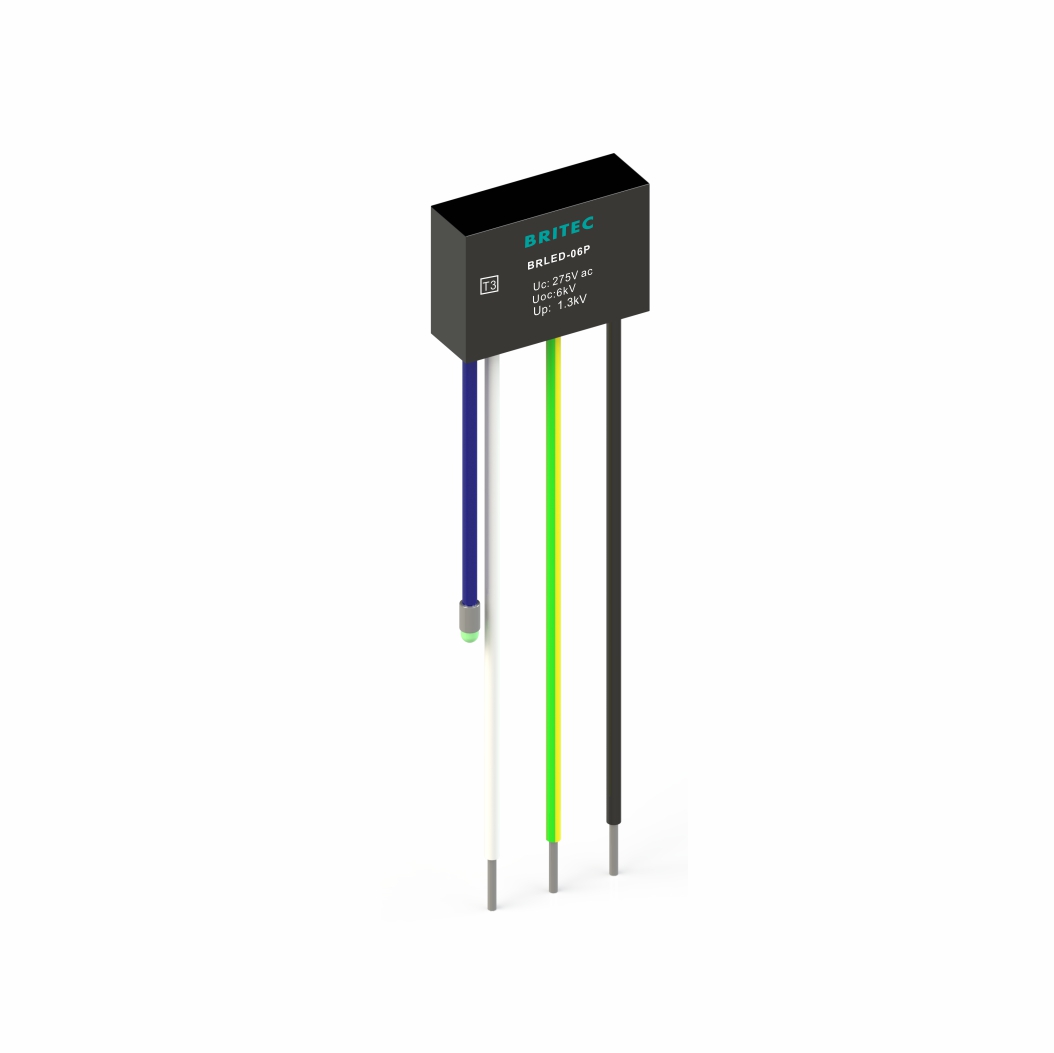

New designed LED lighting surge protection module.
Provide robust surge current handling capability.
Full protection mode.
Thermally protected varistor technology
Protection of LED lighting systems
Compact form factor (24x35x12mm)
Protection for 230V Systems
IP65 protection
Excellent surge resistance and very low residual voltage
Maximum Lightning Surge Current: 6kA
With high-quality, dependable materials.
