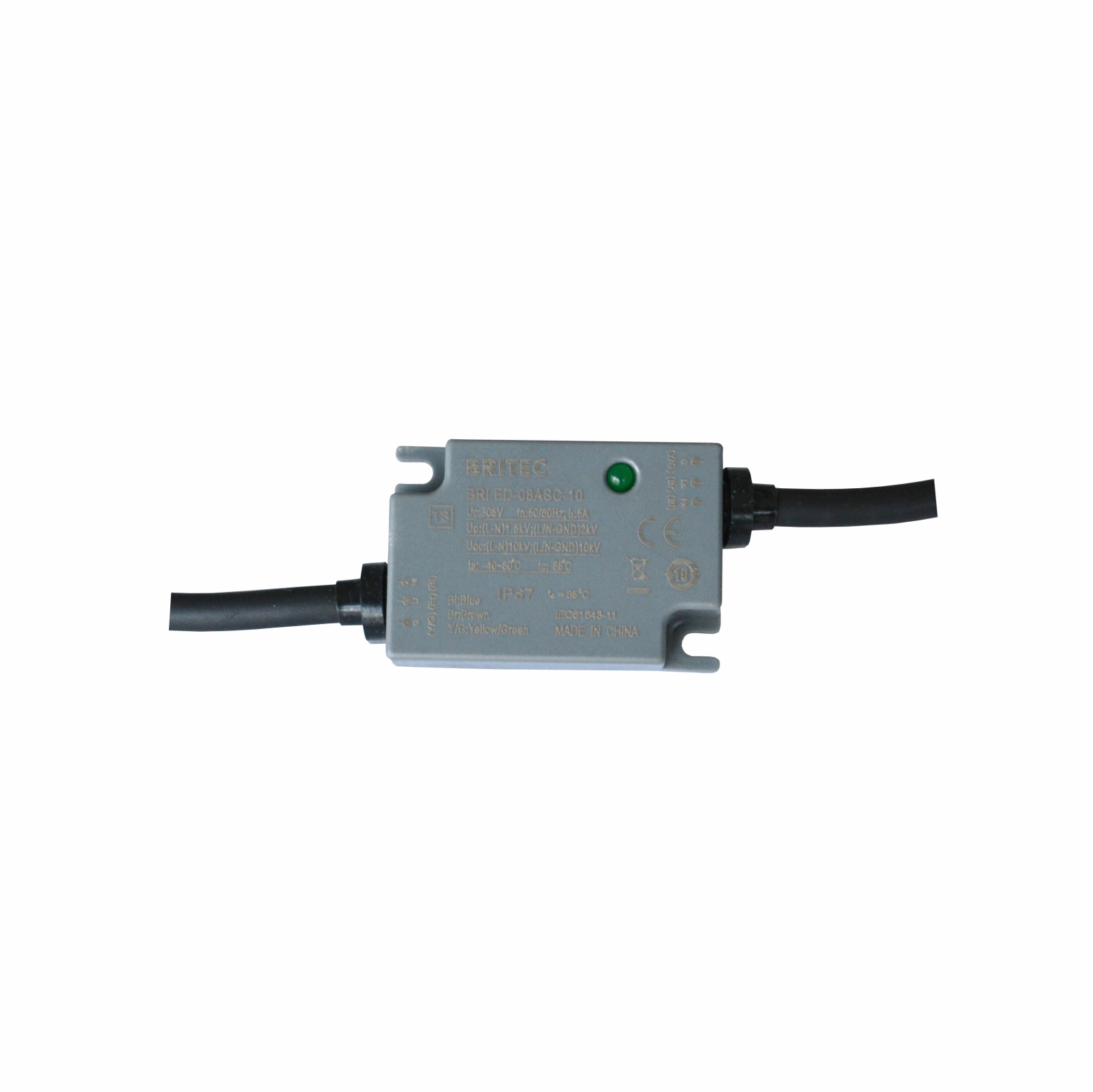

Product characteristics:
| Specification | BRLED-08ASC-10 | |
| SPD classification according to EN61643-11 | Type 2 + Type 3 | |
| SPD classification according to IEC61643-11 | Class II + Class III | |
| Nominal a.c. voltage | Un | 230V |
| Max. continuous operating a.c. voltage | Uc | 305V |
| Frequency | 50-60Hz | |
| Norminal discharge current (8/20μs) | In | 5kA |
| Maximum discharge current (8/20μs) | Imax | 10kA |
| Nominal current | IL | 10A |
| Combined impluse | Uoc | 10kV |
| Voltage protection level | Up | ≤1.5kV |
| Response time | tA | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ |
| Operating state / fault indication | Green light on: OK; Green light off: Replace | |
| Enclosure materail | Thermoplastic UL94-V0 | |
| Degree of protection | IP65 | |
| Order code | B6028 |
Features:
Nominal Discharge current: 5kA.
Space saving footprint for mounting in confined locations
With status indicator.
Protection for 230V Systems
Thermally protected varistor technology.
High performance to size ratio
IP65 degree of protection.
Fully automatic operation
Thermoplastic UL94-V0.
Rated for harsh environments
Compliant with IEC 61643-11 Class II+III and EN 61643-11 Type 2+3.
Application:
Provide transient overvoltage protection for LED lighting fixtures.
Suitable for harsh environments, and provides high performance circuit protection that saves valuable LED lighting assets, reduces maintenance, prevents unwanted failures and decreases degradation damage for longer lifetimes.
