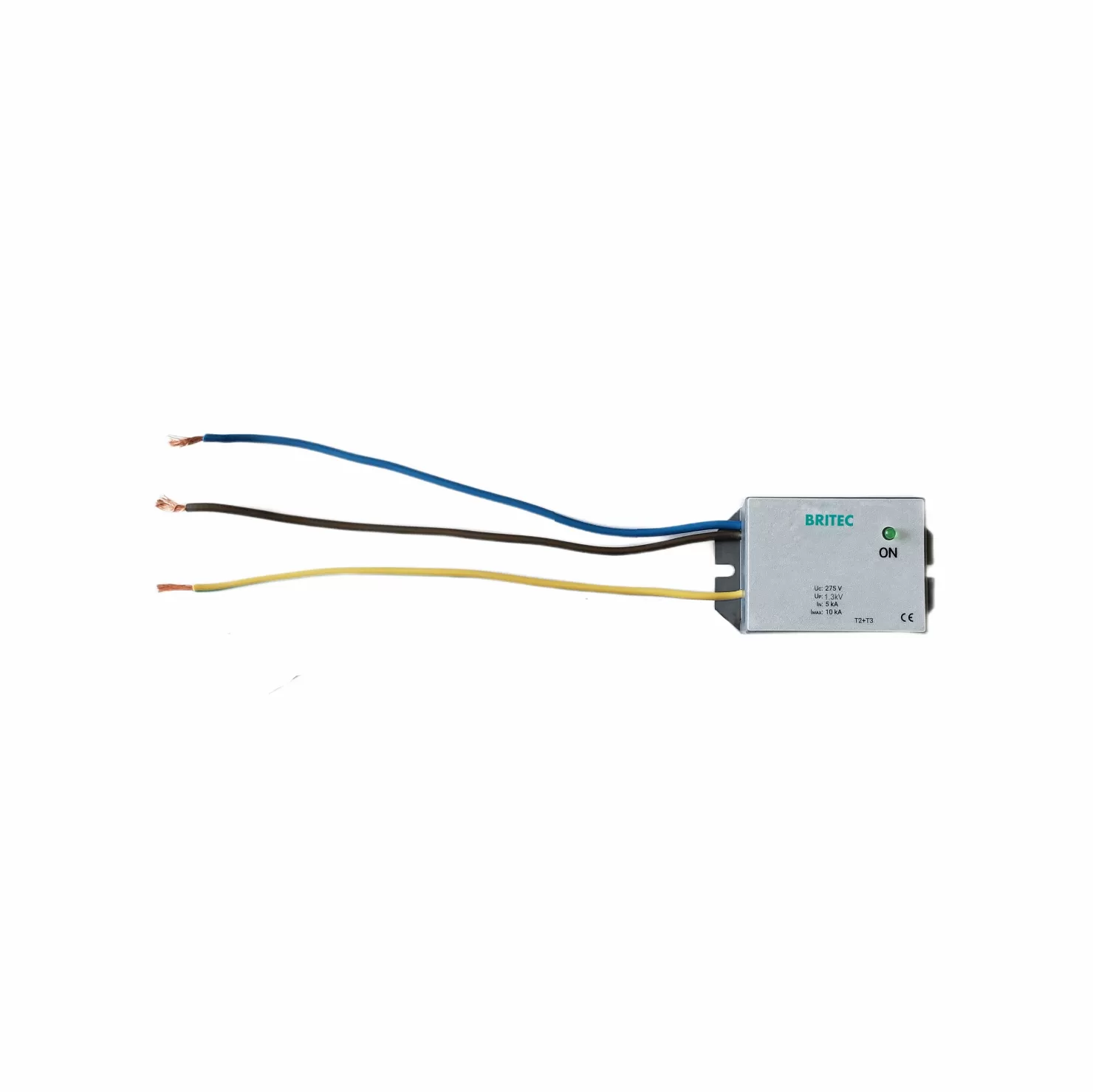

BRLED-10P 10kA 10kV LED Surge Protection Device

Get A Quote
Description

Product characteristics:

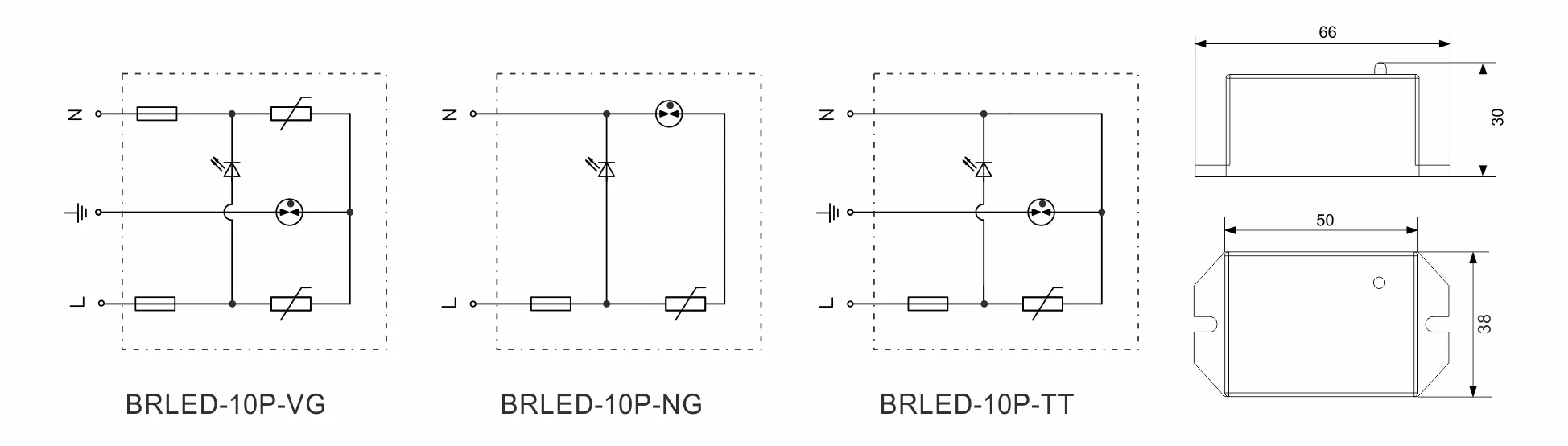

Specification BRLED-10P-VG BRLED-10P-NG BRLED-10P-TT
SPD classification according to EN61643-11 Type 2 + Type 3 Type 2 + Type 3 Type 2 + Type 3
SPD classification according to IEC61643-11 Class II + Class III Class II + Class III Class II + Class III
Nominal a.c. voltage Un 230V 230V 230V
Max. continuous operating a.c. voltage Uc 275V 275V 275V
Frequency 50-60Hz 50-60Hz 50-60Hz
Norminal discharge current (8/20μs) In 5kA 5kA 5kA
Maximum discharge current (8/20μs) Imax 10kA 10kA 10kA
Combined impluse Uoc 10kV 10kV 10kV
Voltage protection level Up ≤1.3kV ≤1.3kV ≤1.3kV
Response time tA ≤100ns ≤100ns ≤100ns
Operating temperature range Tu -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication Green light on: OK; Green light off: Replace
Enclosure materail Thermoplastic UL94-V0
Degree of protection IP65 IP65 IP65
Order code B6032 B6033 B6034

Features:

10kA capable indicating surge arrestors for lighting applications.

Space saving footprint for mounting in confined locations

New designed LED lighting surge protection module.

Protection for 230V Systems

Specifically for commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.

High performance to size ratio

This device is constructed with thermally protected varistor technology.

Fully automatic operation

Rated for harsh environments

3 years product warranty

Application:

Protect LED lighting from transients and surges generated by lightning and switching transients.

Suitable for harsh environments, and provides high performance circuit protection that saves valuable LED lighting assets, reduces maintenance, prevents unwanted failures and decreases degradation damage for longer lifetimes.
