Product characteristics:

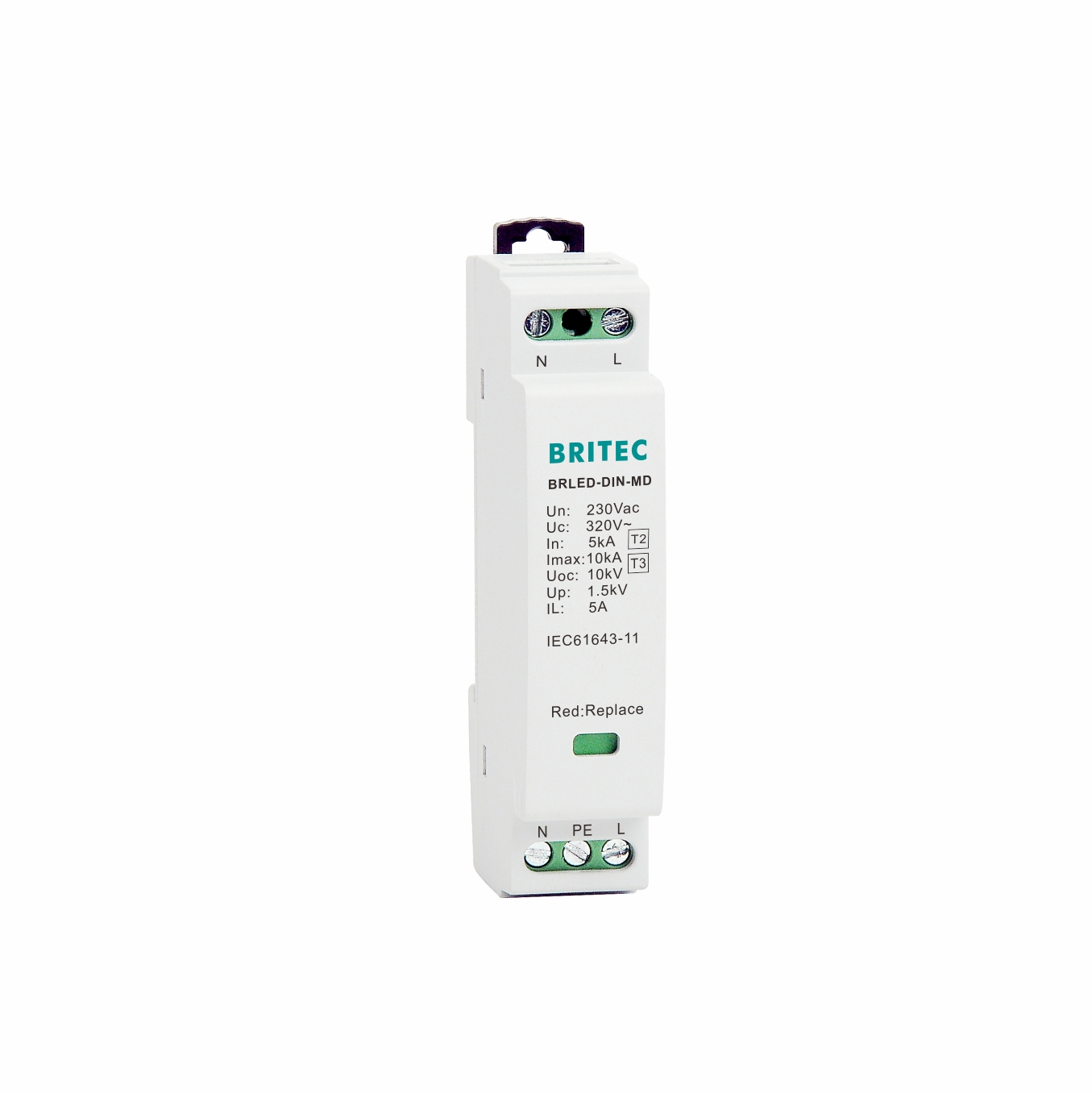

| Specification | BRLED-DIN-MD | BRLED-DIN-MD-NG | |
| SPD classification according to EN61643-11 | Type 2 + Type 3 | Type 2 + Type 3 | |
| SPD classification according to IEC61643-11 | Class II + Class III | Class II + Class III | |
| Nominal a.c. voltage | Un | 230V | 230V |
| Max. continuous operating a.c. voltage | Uc | 320V | 320V |
| Norminal discharge current (8/20μs) | In | 5kA | 5kA |
| Maximum discharge current (8/20μs) | Imax | 10kA | 10kA |
| Nominal current | IL | 5A | 5A |
| Combined impluse | Uoc | 10kV | 10kV |
| Voltage protection level | Up | ≤1.5kV | ≤1.5kV |
| Response time | tA | ≤25ns | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ | -40℃-80℃ |
| Operating state / fault indication | Green/Red | ||
| Enclosure materail | Thermoplastic UL94-V0 | ||
| Degree of protection | IP20 | IP20 | |
| Order code | B6019 | B6020 | |
Features:
Classification: LED Lightning Surge Protector.
Space saving footprint for mounting in confined locations
Nominal Voltage (Un) is 230V.
Maximum continuous operating voltage (Uc) is 320V.
Nominal discharge surge current (In) is 5kA (8/20µs).
High performance to size ratio
Fully automatic operation
Rated for harsh environments
Features a thermally protected transient over-voltage circuit.
Application:
Suit for the outdoor luminaires such as street lights, flood lights etc.
Suitable for harsh environments, and provides high performance circuit protection that saves valuable LED lighting assets, reduces maintenance, prevents unwanted failures and decreases degradation damage for longer lifetimes.
