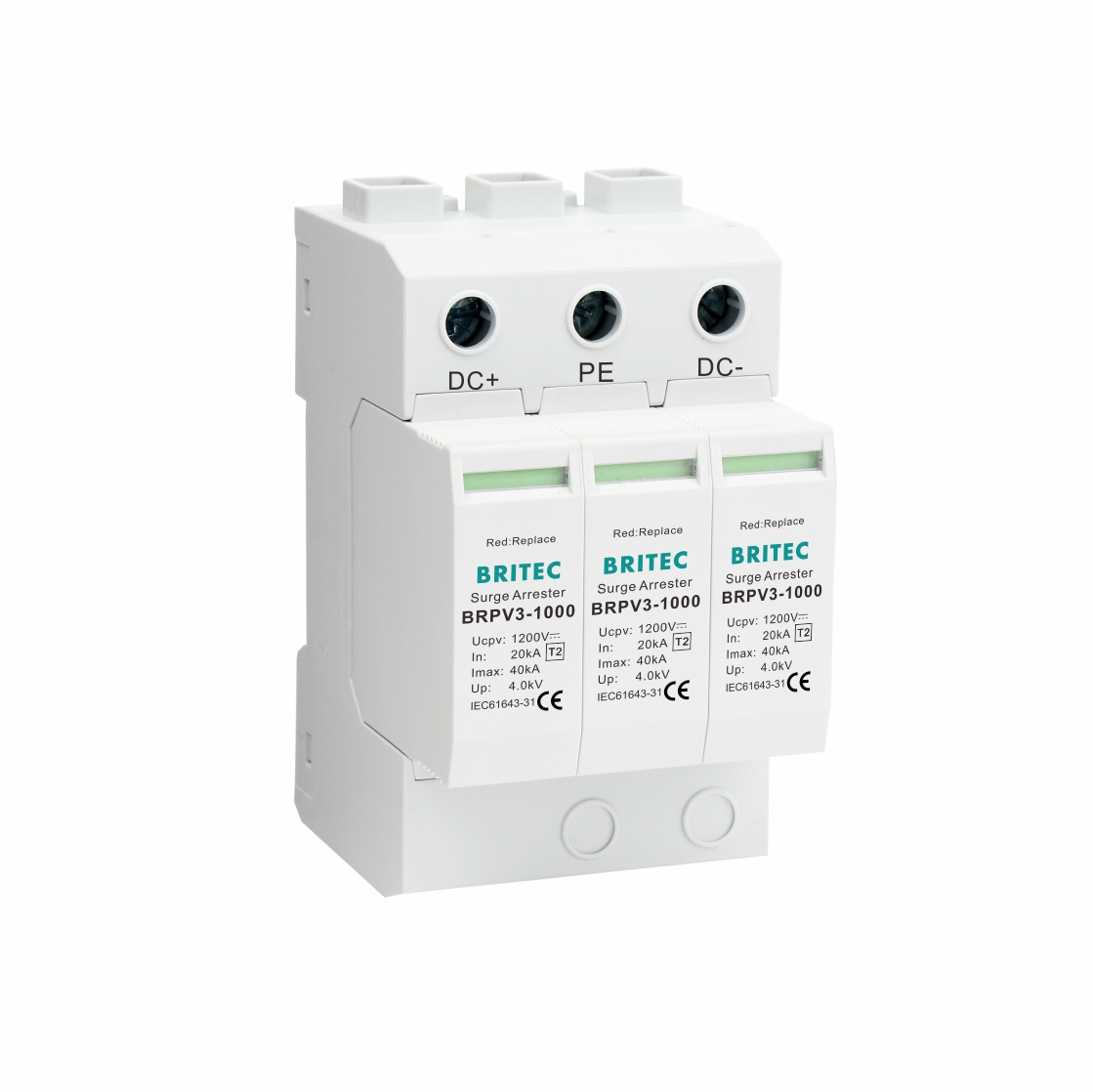

Product characteristics:
| Specification | BRPV3-1000 | |
| SPD classification according to EN61643-31 / IEC61643-31 | Type 2 / Class II | |
| Max. continuous operating d.c. voltage | Ucpv | 1200V |
| Nominal discharge current (8/20μs) | In | 20kA |
| Max. discharge current (8/20μs) | Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] | Up | ≤4.0kV |
| Response time | tA | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ |
| Operating state / fault indication | green / red | |
| Cross-section area (Min.) | 4mm² | |
| Cross-section area (Max.) | 35mm² | |
| For mounting on | 35mm Din rail | |
| Enclosure material | Thermoplastic UL94-V0 | |
| Degree of protection | IP20 | |
| Order code | B18010 | |
| Order code (with remote signal) | B18012 |
Features:
These units must be installed in parallel on the DC networks to be protected
Built-in over current and over heat, temperature control open circuit technology.
Adopt independent intelligence property right and high performance sensitivity resistance plates.
The BRPV series is made with plug-in modules to allow a fast and easy maintenance in case of failure (disconnection from the DC network).
With remote connection, can realize remote control.
Application:
Designed especially for surge protection of the PV strings, apply to the Photovoltaic power grid-connection system.
Used for PV systems with or without separate lightning protection system.
Used to protect the sensitive line of the solar power generation protection device.
It widely used in PV DC combiner box, inverter, controller and PV DC cabinet.
