Product characteristics:
| Specification | BRPV3-600-12.5 | ||
| SPD classification according to EN61643-31 / IEC61643-31 | Type 1 + Type 2 / Class I + Class II | ||
| Max. continuous operating d.c. voltage | Ucpv | 600V | |
| Lightning impulse current (10/350μs) | Iimp | 12.5kA | |
| Nominal discharge current (8/20μs) | In | 25kA | |
| Max. discharge current (8/20μs) | Imax | 60kA | |
| Voltage protection level [(DC+/DC-)→PE] | Up | ≤2.1kV | |
| Response time | tA | ≤25ns | |
| Operating temperature range | Tu | -40℃-80℃ | |
| Operating state / fault indication | green / red | ||
| Cross-section area (Min.) | 4mm² | ||
| Cross-section area (Max.) | 35mm² | ||
| For mounting on | 35mm Din rail | ||
| Enclosure material | Thermoplastic UL94-V0 | ||
| Degree of protection | IP20 | ||
| Order code | B18024 | ||
| Order code (with remote signal) | B18025 | ||
Features:

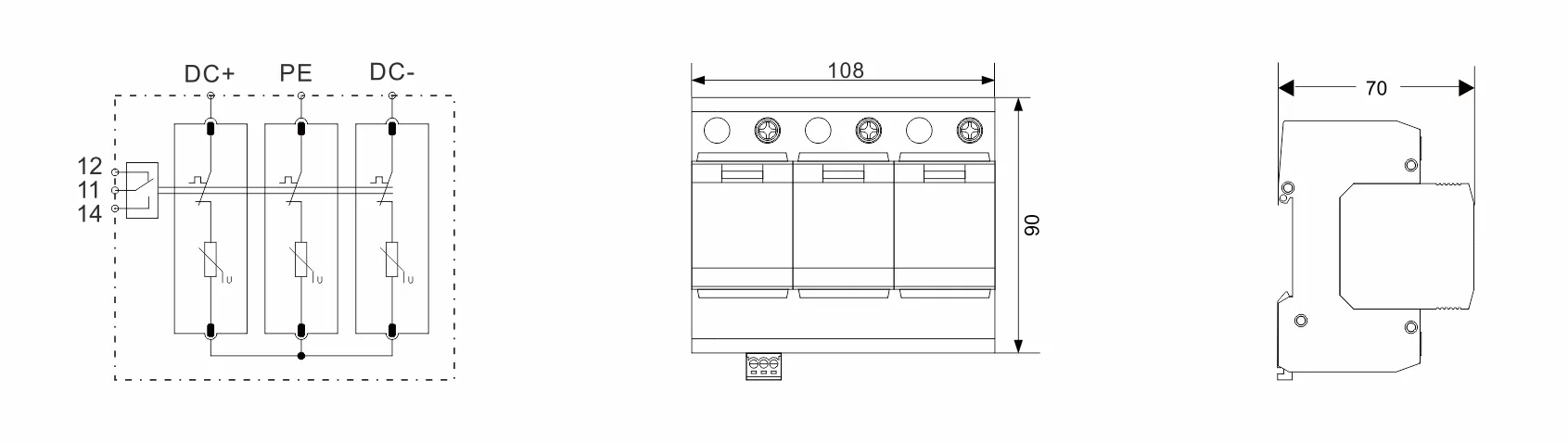

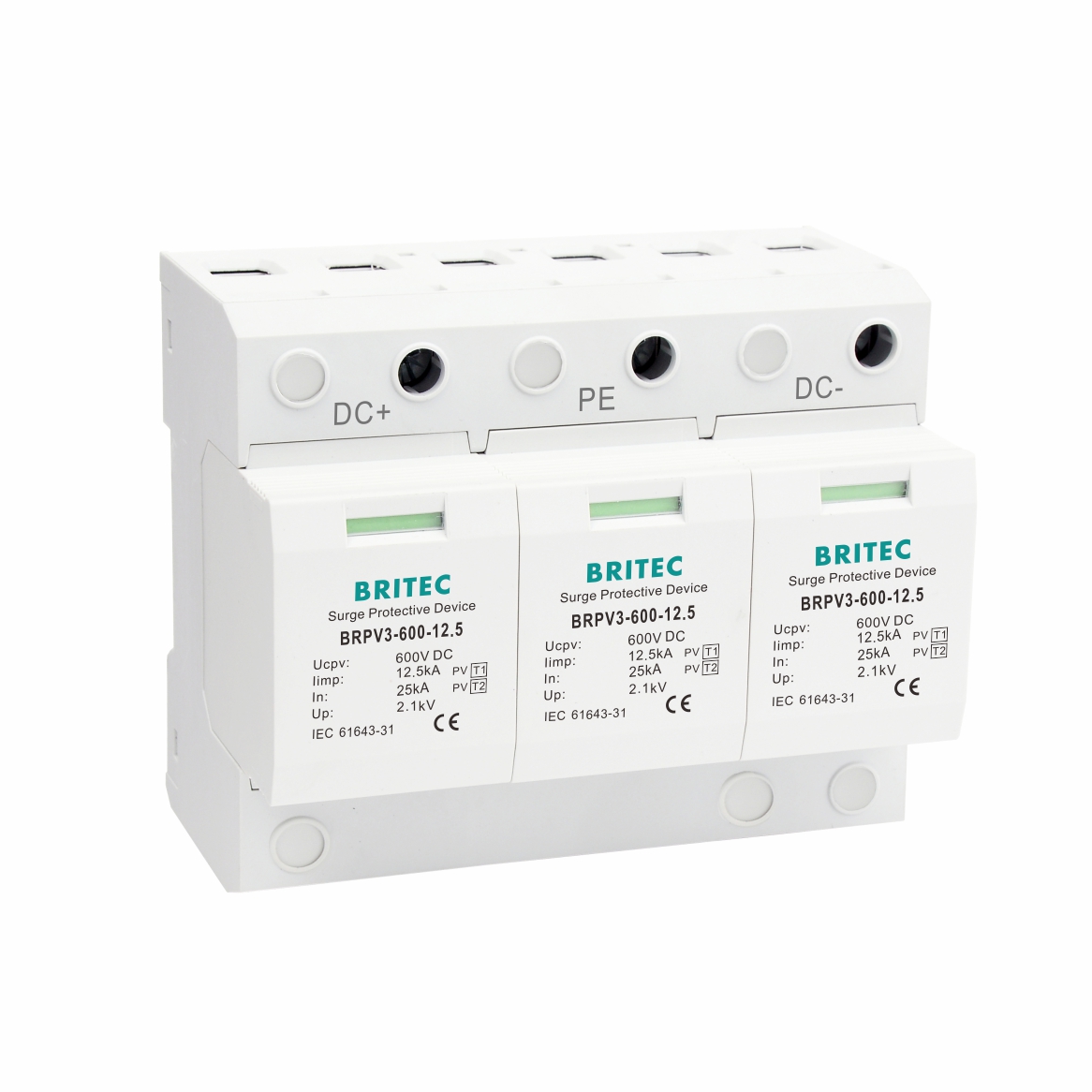

Type 1+2 surge protector for photovoltaic.
Lightning impulse current(10/350us):12.5kA.
Max. continuous operating dc voltage:600V DC.
Protection modes: (+) → PE, (-) → PE, (+) → (-).
Remote signaling selectable.
Conform to IEC61643-31 and EN61643-31.
Application:
For use in photovoltaic power supply systems up to 600 V d.c.
For photovoltaic systems on/on buildings with external lightning protection
Protect against lightning surge voltages in photovoltaic power supply network.
Available as type 1 and type 2 combined lightning current and surge arresters as well as type 2 only surge arrester protective devices.
Installation instruction:
Mount the SPD on 35 mm DIN rail.
DC surge arrester are designed to protect equipment connected to DC power supplies from lightning surges.
The SPD is placed in parallel between the energized conductors and ground.
