Product characteristics:
| Specification | BRPV3-600 | |
| SPD classification according to EN61643-31 / IEC61643-31 | Type 2 / Class II | |
| Max. continuous operating d.c. voltage | Ucpv | 600V |
| Nominal discharge current (8/20μs) | In | 20kA |
| Max. discharge current (8/20μs) | Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] | Up | ≤2.2kV |
| Response time | tA | ≤25ns |
| Operating temperature range | Tu | -40℃-80℃ |
| Operating state / fault indication | green / red | |
| Cross-section area (Min.) | 4mm² | |
| Cross-section area (Max.) | 35mm² | |
| For mounting on | 35mm Din rail | |
| Enclosure material | Thermoplastic UL94-V0 | |
| Degree of protection | IP20 | |
| Order code | B18009 | |
| Order code (with remote signal) | B18011 |
Features:
PV voltage up to 600Vdc.
According to type 2 / class II EN61643-31 and IEC61643-31.
With remote indication contact.
Optical status indicator.
Designed for 35 mm DIN rails.
High temperature and resistant flame retardant plastic shel.

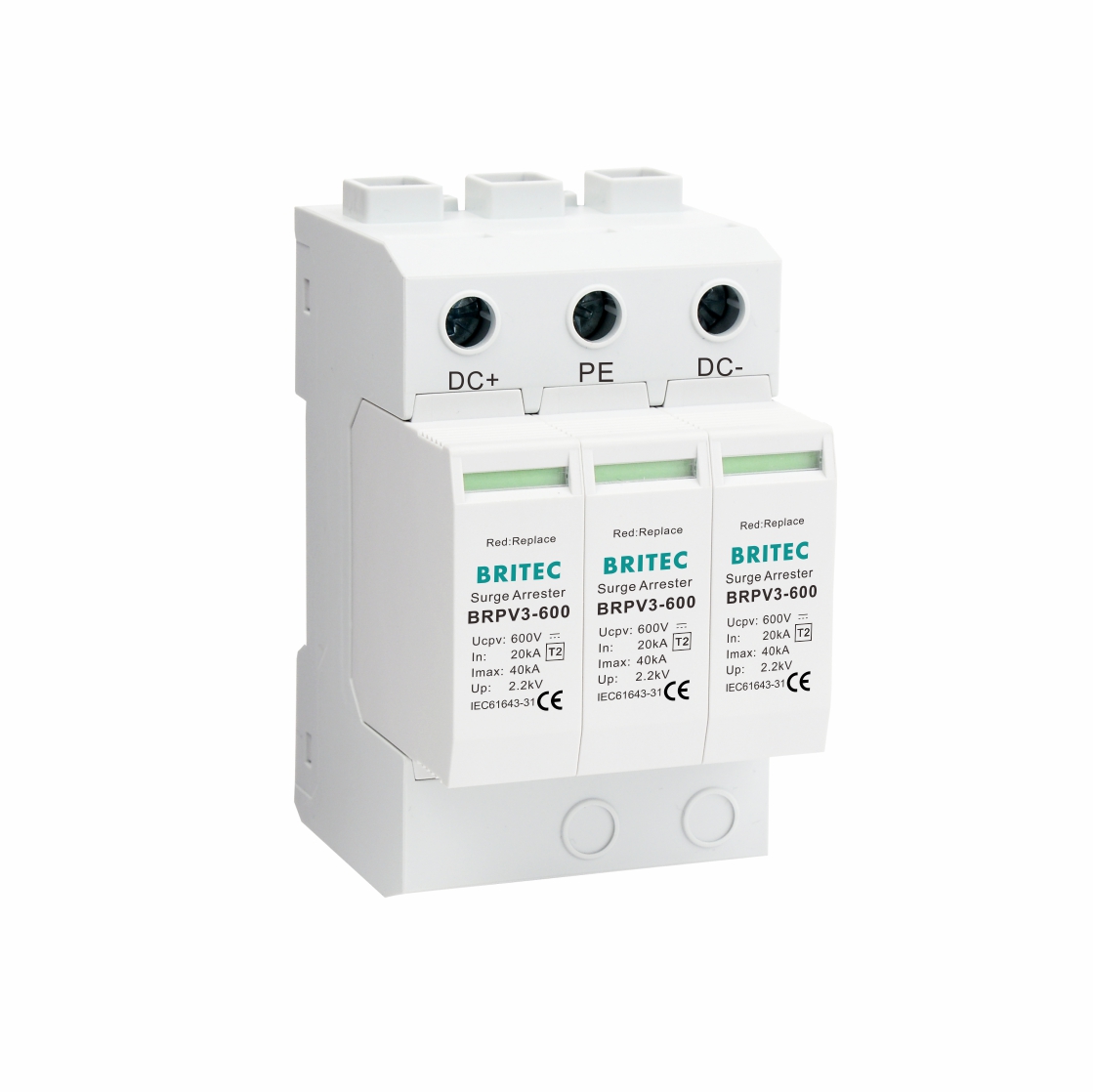

BRPV3-600 are designed to protect against lightning surge voltages in photovoltaic power supply networks.
Lightning protection main device and the base can be separated, is pluggable type.
Application:
Protect against lightning surge voltages in solar system (photovoltaic power supply system).
Suitable for the new energy wind power generation system.
Suitable for solar DC power distribution system of lightning protection, such as solar PV combiner box, PV DC power distribution cabinet, grid tie inverter, etc.
Widely used in the DC power lightning protection of solar power systems, mobile communication base stations, microwave communications bureau, telecommunications room, plant, civil aviation, finance, securities and other system.
Installation instruction:
Installed on the fount of the low-voltage distribution system.
Installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.
