Product characteristics:

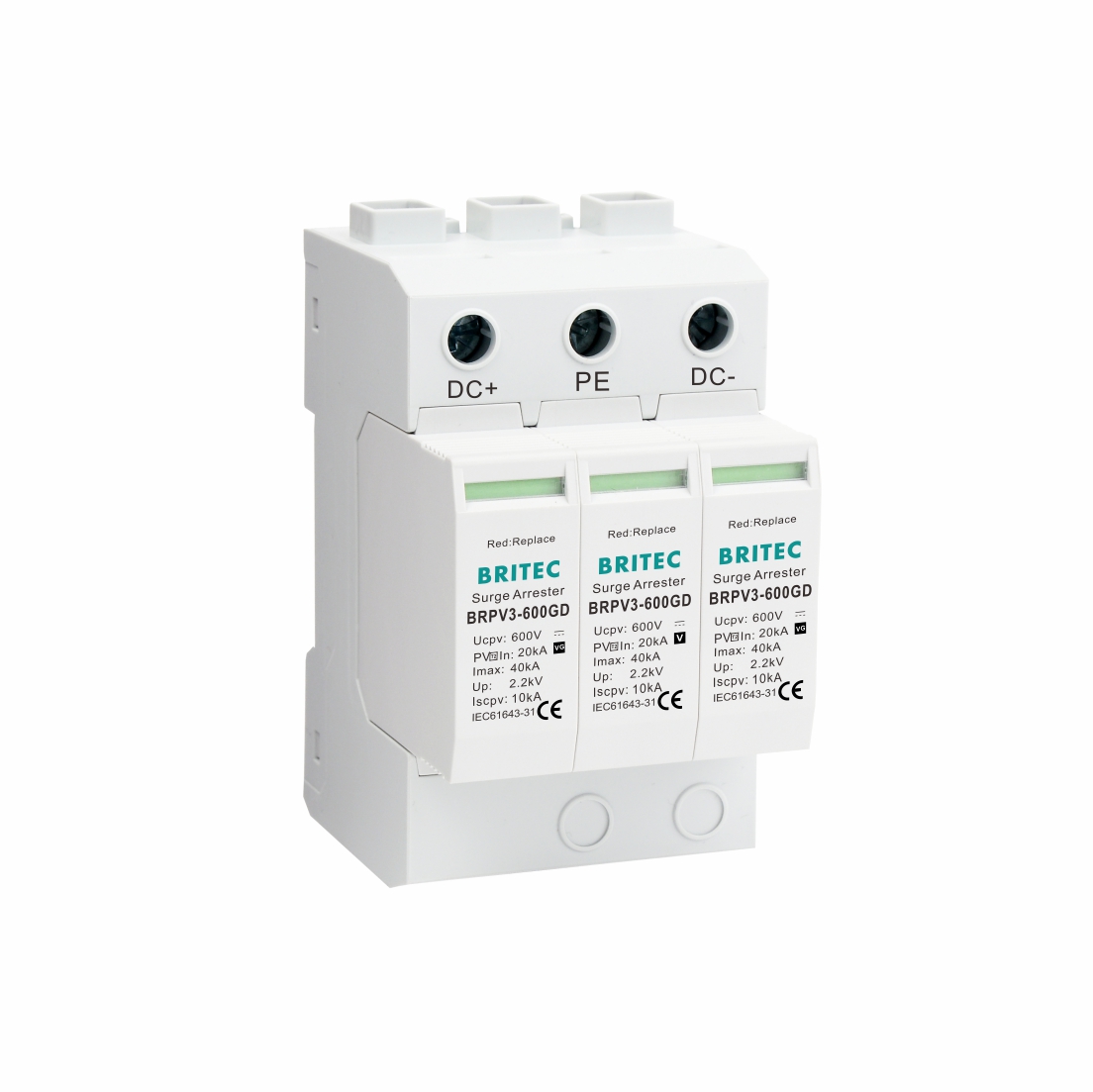

| 3 Mod free leakage current | BRPV3-600 GD | |
| SPD classification according to EN61643-31 / IEC61643-31 | Type 2 / Class II | |
| Max. continuous operating d.c. voltage | Ucpv | 600V |
| Nominal discharge current (8/20μs) | In | 20kA |
| Max. discharge current (8/20μs) | Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] | Up | ≤2.2kV |
| Response time | tA | ≤100ns |
| Operating temperature range | Tu | -40℃-80℃ |
| Operating state / fault indication | green / red | |
| Cross-section area (Min.) | 4mm² | |
| Cross-section area (Max.) | 35mm² | |
| For mounting on | 35mm Din rail | |
| Enclosure material | Thermoplastic UL94-V0 | |
| Degree of protection | IP20 | |
| Order code | B18005 | |
| Order code (with remote signal) | B18007 |
Features:
Configurations to support 600V DC operating voltages.
Max. discharge current with 8/20 waveform: 40kA per phase.
Conform to IEC61643-31 and EN61643-31.
Design with pluggable modules.
Status indication.
High discharge capacity via varistors and gas dischargers.
Compact equipment for photovoltaic installations.
Application:
For equipotential bonding of positive and negative busbars of photovoltaic systems and elimination of transient overvoltage that originates during the atmospheric discharges or switching processes.
For Photovoltaic protection against surges at the boundaries from lightning protection.

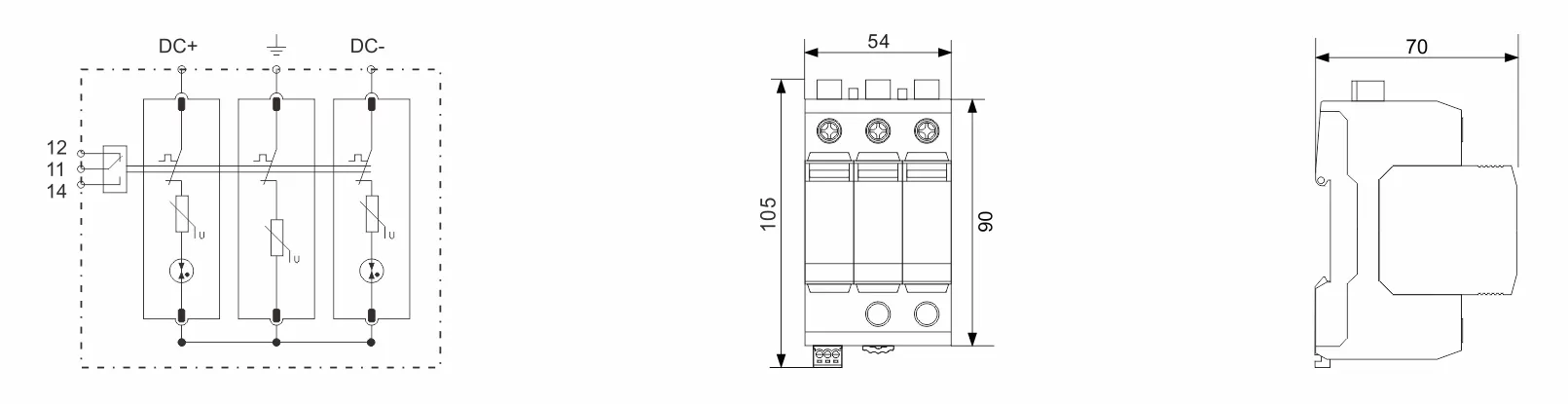

Installation instruction:
The SPD connected in parallel with the power lines, installed by the way of 35 mm leading rail.
When installed, in and out terminal of SPD will be corresponding connected with”+”,”-“pole of the DC power; ” PE ” is connected with grounding line.
