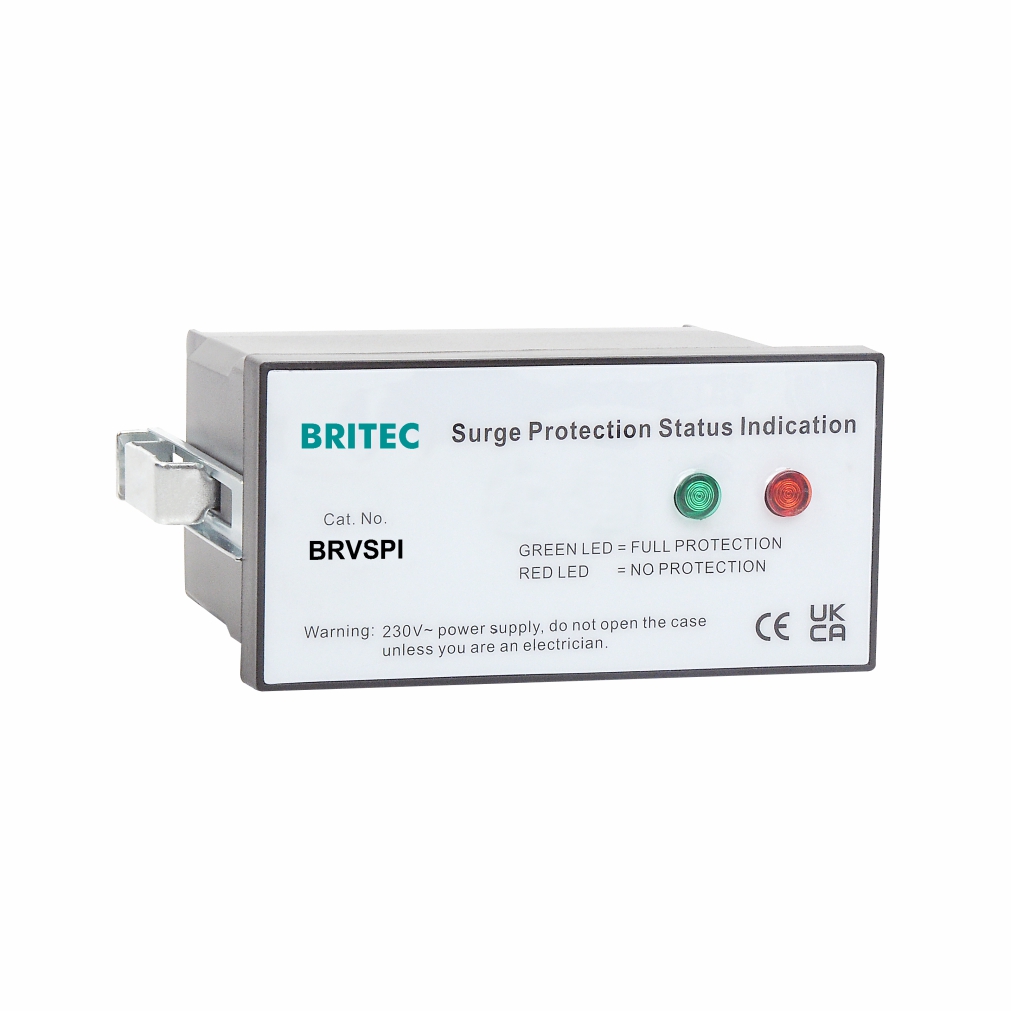

BRVSPI Surge Protection Panel Status indicator

Specification Sheets

Get A Quote

Description Get A Quote Related Products Related News

Description

Product characteristics:

Specification		BRVSPI
Indicator voltage	Un	230V~
Input signal		NC of the Remote Signalling Contact
Status indicator		SPD OK: Green LED on; SPD failure: Red LED on

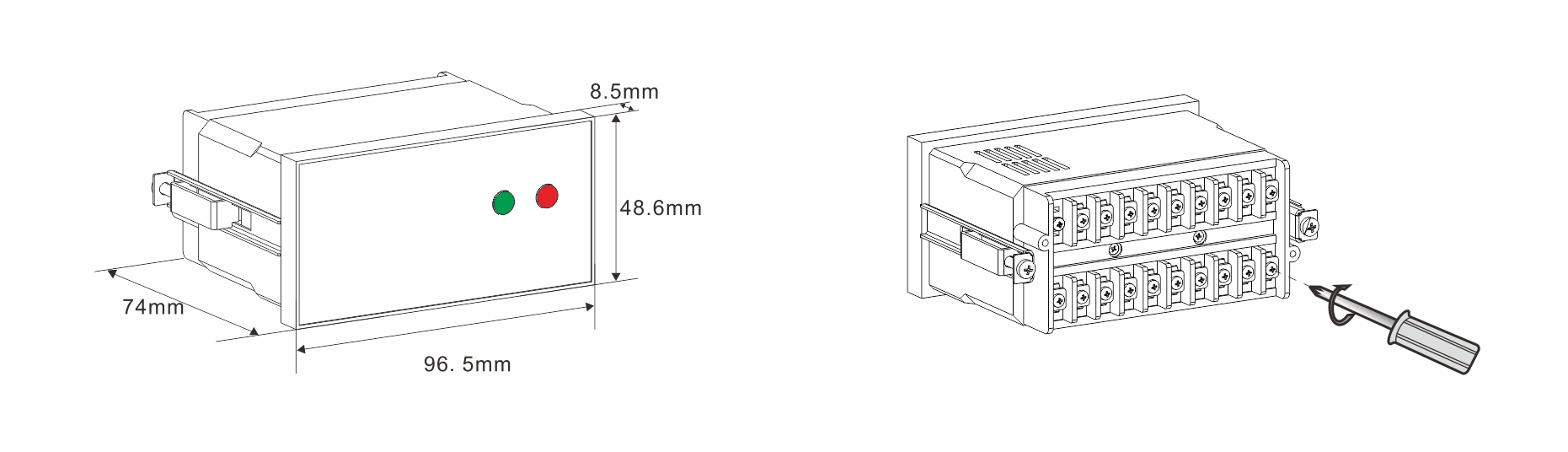

Mounting		Screw on the panel by steel mounting bracket provided
Operating temperature range	Tu	-20℃-60℃
Enclosure material		Thermoplastic
Degree of protection		IP20
Order Code		B6300

Features:

Panel Status indicator

By connecting the NC of the remote signaling contact to the x1 and x2 terminal on the BRVI, the working status of the SPD will be shown on the panel status indicator.
